Powerful professional floodlighting solution for Sports and Area lighting. All-in-one LED driver with flexible mounting methods and 220-400VAC power input needs to be ordered seperately. Standard compatible with DALI2 / 1-10V dimming. DMX dimming possible upon request. Robust design: full IP66 and IK08 protection, including safety cable. Equipped with breather to prevent condensation.
Power Supplies

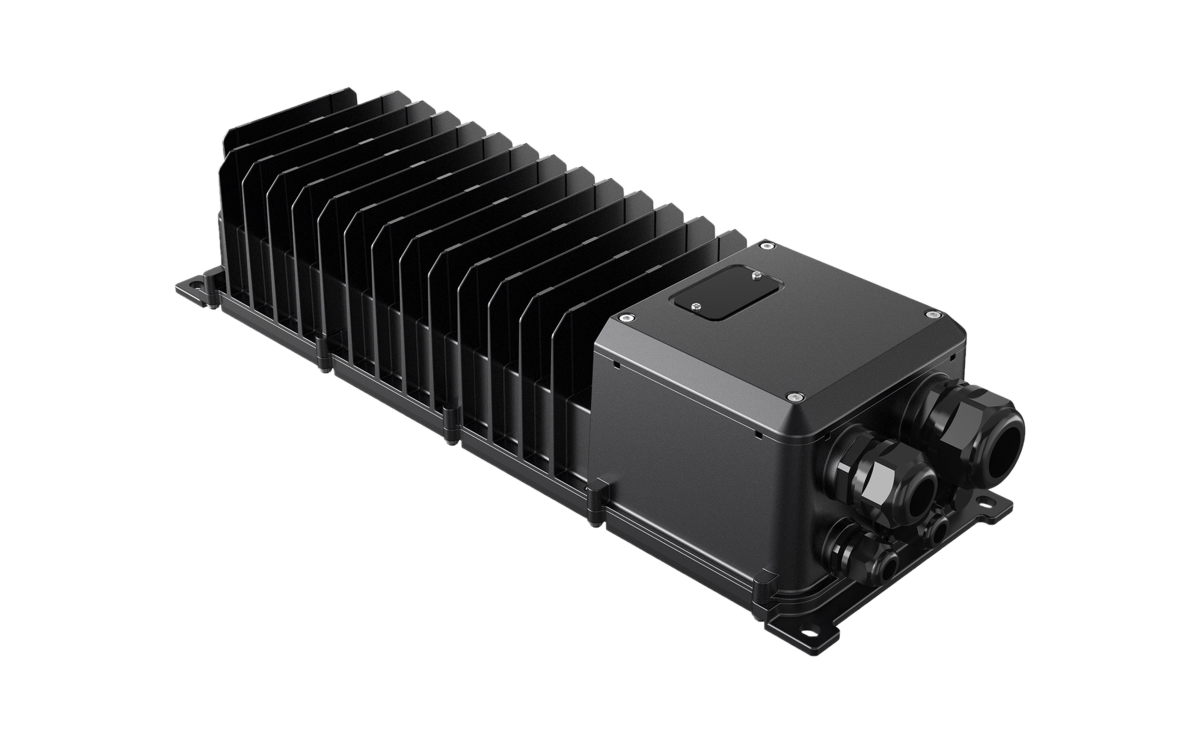

FloodOly-P2 Driver-1200W-DA10VDMX-XAS
Nortécnica Ref:
EAN:
6941491785929
Description
Technical Information
Attributes
Protection class according to IEC 61140
I
Largura
157
Model
EV010336
Altura
102
Dimmable
Yes
Housing
Metal housing
Power consumption
1200
Diameter
-
Comprimento
443
Housing material
EV000072
Ambient temperature
-30
45
Suitable for outdoor use
Yes
Short-circuit protected
No
Input voltage
200
420
Output voltage
-
Impact strength
EV006814
Output power
1200
1200
Nominal voltage
200
528
Degree of protection IP
IP66
Output current
-
Frequency input voltage
50
60
With control gear
Yes
Overload protection
Yes
Overtemperature protection
No
Suitable for constant current
No
Suitable for constant voltage
Yes
Suitable for DC-voltage primary side
Yes
Constant light output CLO
No
IFTTT support available
No
Dimming 0-10 V
No
Dimming 1-10 V
Yes
Dimming DALI
Yes
Dimming DMX
Yes
Dimming potentiometer integrated
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off trailing edge
No
Dimming phase cut-on leading edge
No
Dimming programmable
Yes
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
Yes
Dimming Zigbee
No
Dimming with push-button
Yes
EF012169
No
Dimming DSI
No
Operation by Bluetooth
No
PWM modulation
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Max. number of luminaires per miniature circuit breaker C16 MCB
-
Max. number of luminaires per miniature circuit breaker B16 MCB
-
Dimming DALI-2
Yes
Compatible with Casambi
No
Dimming D4i
No
Emergency power supply system
None
Mains surge immunity differential mode, L-N
20
Mains surge immunity common mode, LN-Ground
20
Driver lifetime
-
Independently operating
Yes
Efficiency
0.9
Power factor
0.95
Brands
OPPLE Lighting
Descrição Longa
Powerful professional floodlighting solution for Sports and Area lighting. All-in-one LED driver with flexible mounting methods and 220-400VAC power input needs to be ordered seperately. Standard compatible with DALI2 / 1-10V dimming. DMX dimming possible upon request. Robust design: full IP66 and IK08 protection, including safety cable. Equipped with breather to prevent condensation.
