Professional LED light line solution. Simple installation with snap-in mounting of LED modules and trunks. Integration of 3C Spots possible with 3C Track Module accessory.
Industry

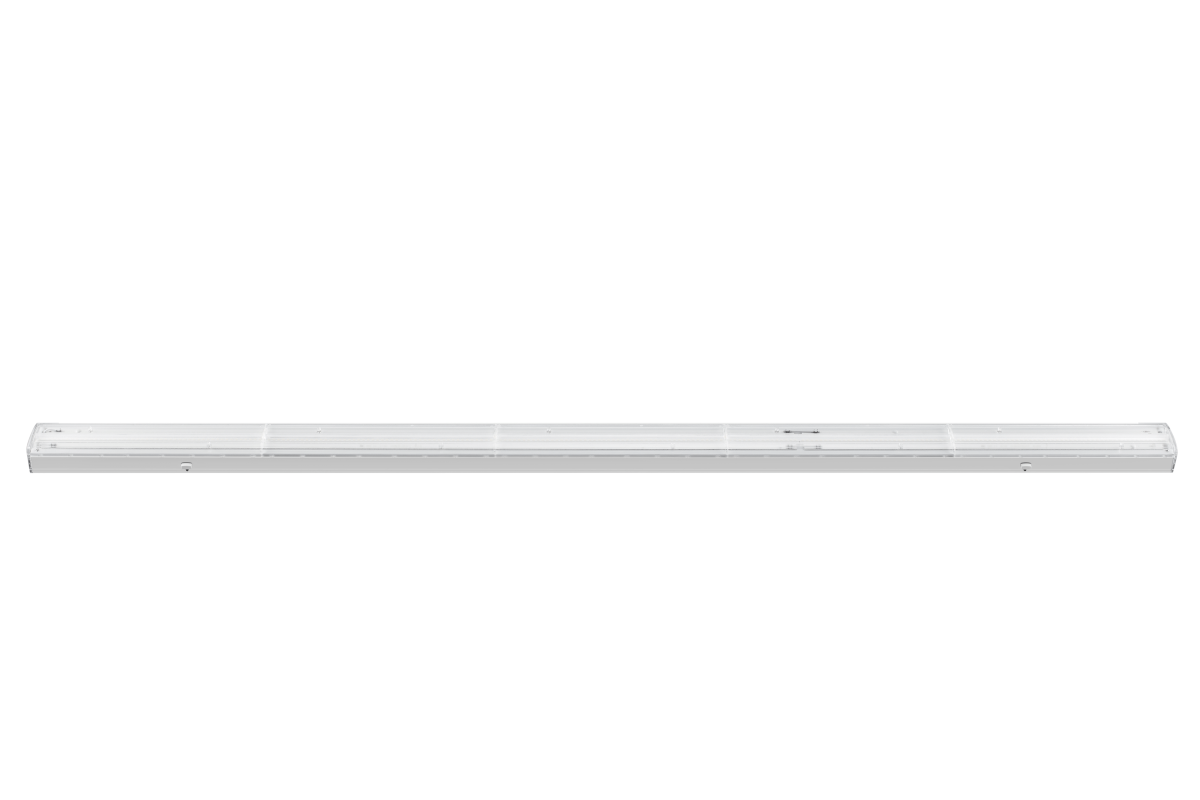

LEDTrunking Module L15-70W-4000-120
Nortécnica Ref:
68542005006200
EAN:
6945730405760
Description
Technical Information
Attributes
Protection class according to IEC 61140
I
Largura
77.7
Reflector
None
Lamp holder
None
Secção transversal do condutor
-
Connection type
-
Housing colour
White
Dimmable
No
Voltage type
AC/DC
Suitable for lamp power
-
Type of control gear
LED operating device current-controlled
Colour rendering index CRI
80-89
Número de polos
-
Comprimento
1498.5
Alturaprofundidade
66.5
Housing material
Steel
Lamp type
LED not exchangeable
Suitable for emergency lighting
No
Light outlet
Direct
Light distribution
Symmetric
Nominal voltage
220
240
Fonte de alimentação de emergência integrada
No
Degree of protection IP
IP20
With light source
Yes
Adequado para número de lâmpadas
-
With control gear
Yes
Beam angle
> 80° - Extreme wide beam
Connectable conductor cross section
1.5
2.5
Fluxo luminoso em funcionamento de emergência
-
Nominal current
1000
1000
Colour temperature
4000
4000
Potência máx. do sistema
70
EF009349
11200
Colour of light
White
Constant light output CLO
No
Type of wiring
-
Vida útil nominal L70B50 a 25 C
70000
EF011871
-
Colour consistency McAdam ellipse
SDCM4
EF011947
-
Rated ambient temperature according to IEC 62722-2-1
-
Filament test according to IEC 60695-2-11
650 °C - 30 s
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming potentiometer integrated
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off trailing edge
No
Dimming phase cut-on leading edge
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
EF012169
Yes
Light distributor
Focal lens
Luminaire efficacy
160
Dimming DSI
No
Operation by Bluetooth
No
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Depreciação do fluxo luminoso; vida útil média de 100 000 h; temp 25 C tq
-
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Taxa de falha, vida operacional média 100 000 h, temperatura 25 C tq
-
Dimming DALI-2
No
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Exchangeable control gear
Yes
Compatible with Casambi
No
Energy efficiency class of the light source according to EU regulation 20192015
C
Luminaire efficacy
180
180
Rated luminous flux according to IEC 62722-2- 1
12600
12600
Emergency power supply system
None
Consumo de energia em modo de emergência
-
Emergency function monitoring system
None
Containing product according to 20192020EU
Yes
Total harmonic distortion THD
-
Fator de potência
0.9
Meets min. EIA lifetime criterion L90 at 50,000 hours at tq 25 C
Yes
Brands
OPPLE Lighting
Descrição Longa
Professional LED light line solution. Simple installation with snap-in mounting of LED modules and trunks. Integration of 3C Spots possible with 3C Track Module accessory.
