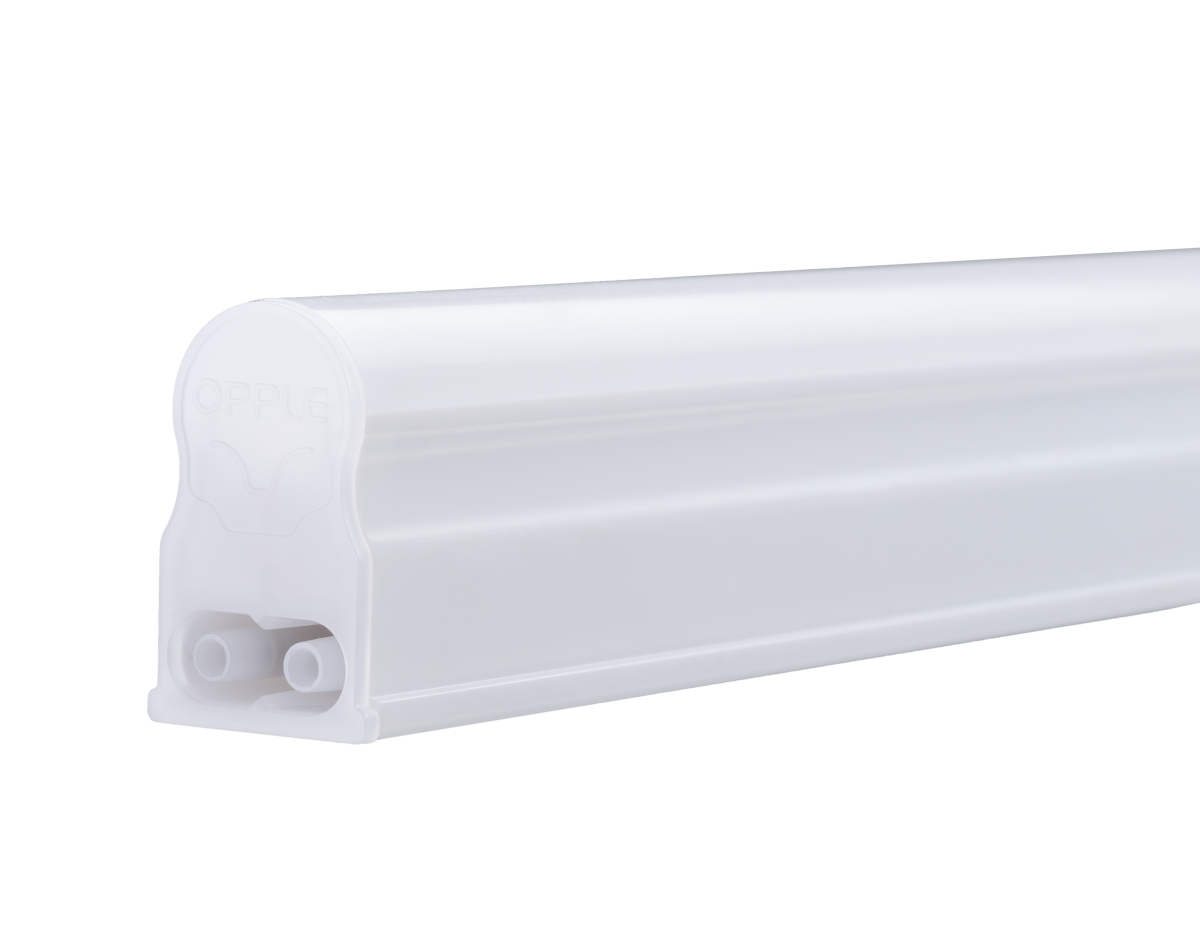

Linear LED batten. Uniform, diffused light, creating a pleasant atmosphere. Battens connect up to 15 meters. Including power cable, mounting and connection pieces (fixed and flexible). With transparant end caps. Free to position stainless steel mounting clips.
Interior
LED E T5 batten 1200 18W 4000K CT
Nortécnica Ref:
68140043901
EAN:
6956712666246
Description
Technical Information
Attributes
Protection class according to IEC 61140
II

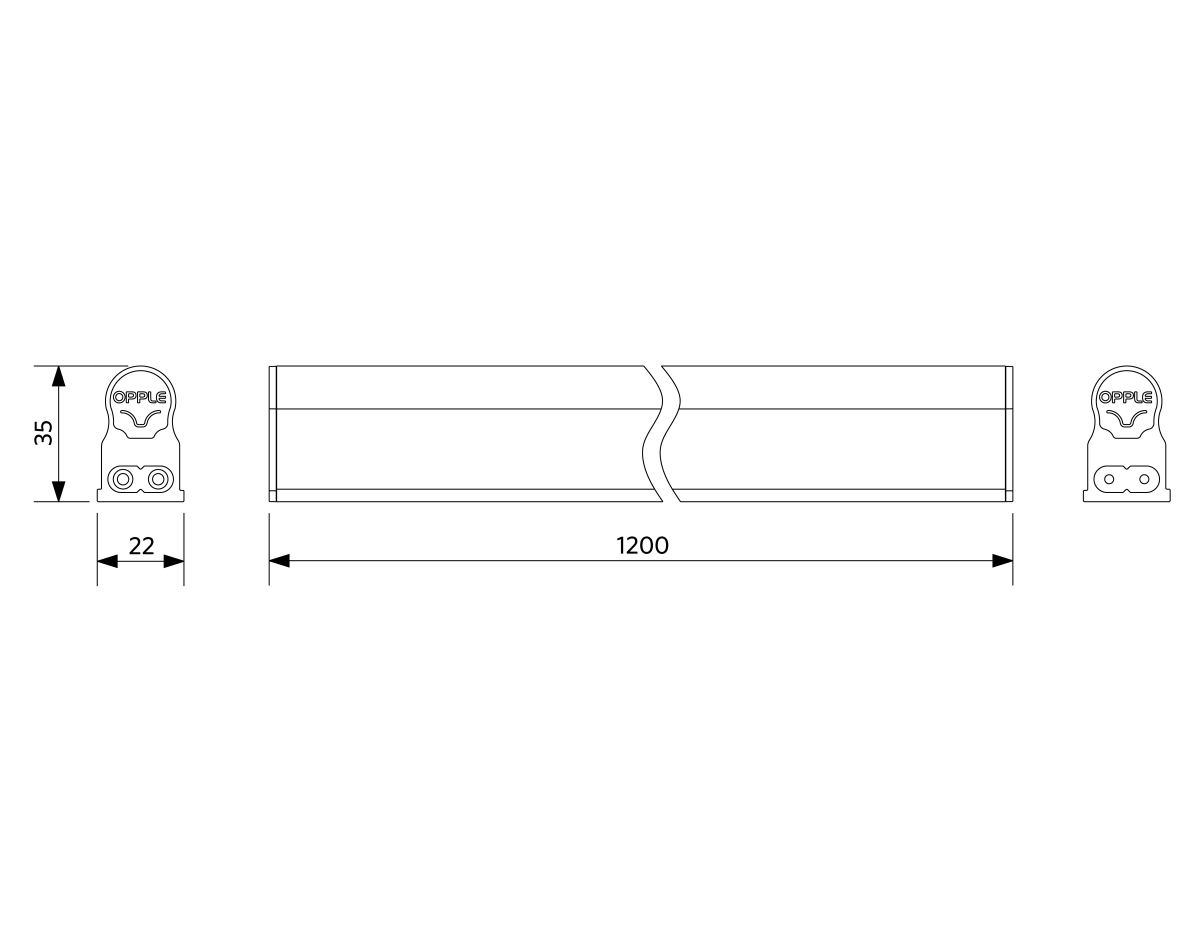

Largura
21.8
Lamp holder
None
Secção transversal do condutor
-
Connection type
-
Housing colour
White
Dimmable
No
Voltage type
AC
With movement sensor
No
Suitable for lamp power
-
Type of control gear
LED operating device current-controlled
Colour rendering index CRI
80-89
Diâmetro
-
With switch
No
With light sensor
-
Número de polos
2
Comprimento
1200
Alturaprofundidade
34.6
Material
Plastic
Lamp type
LED not exchangeable
With presence detector
-
Electrical connection with connector system
Yes
Suitable for emergency lighting
No
Impact strength
-
Nominal voltage
220
240
Fonte de alimentação de emergência integrada
No
Degree of protection IP
IP20
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
Yes
Covering of the luminaire with thermally insulating material possible
-
Adequado para número de lâmpadas
-
With control gear
Yes
Connectable conductor cross section
0.75
1.5
Fluxo luminoso em funcionamento de emergência
-
Nominal current
136
136
Colour temperature
4000
4000
Potência máx. do sistema
18
EF009349
1950
Colour of light
White
Constant light output CLO
No
IFTTT support available
No
Type of wiring
Loop-through wiring included
Vida útil nominal L70B50 a 25 C
40000
Degree of protection NEMA
-
Filament test according to IEC 60695-2-11
850 °C - 30 s
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming potentiometer integrated
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off trailing edge
No
Dimming phase cut-on leading edge
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
EF012169
Yes
Light distributor
Diffuser lens/optic/panel
Luminaire efficacy
108
Dimming DSI
No
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Dimming DALI-2
No
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Exchangeable control gear
Yes
Compatible with Casambi
No
Energy efficiency class of the light source according to EU regulation 20192015
F
With lamp protection basket
-
Movement sensorpresence detector technology
-
Rated luminous flux according to IEC 62722-2- 1
1950
1950
Emergency power supply system
None
Consumo de energia em modo de emergência
-
Emergency function monitoring system
None
Containing product according to 20192020EU
Yes
Fator de potência
0.9
Brands
OPPLE Lighting
Descrição Longa
Linear LED batten. Uniform, diffused light, creating a pleasant atmosphere. Battens connect up to 15 meters. Including power cable, mounting and connection pieces (fixed and flexible). With transparant end caps. Free to position stainless steel mounting clips.
