High quality LED Downlight with upgraded efficacy up to 130 lm/W with CRI90 for all versions. Unique optical lens concept with matte white (MW) reflector and low glare. Direct replacement for compact fluorescent downlights. IP54 on light emitting side. Provided with protective foil in order to protect the optics against dust and dirt during the installation.
Interior

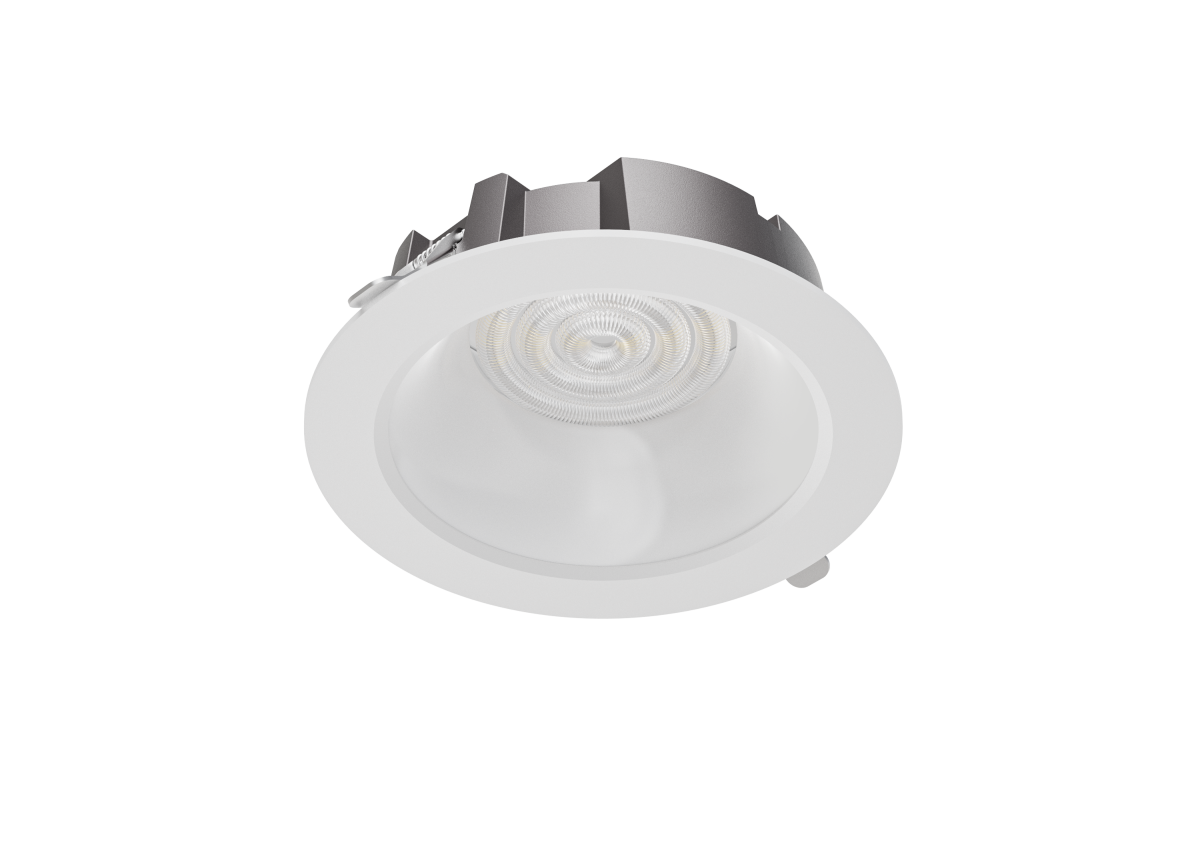

LEDDownlightMW-P2 Rd150-12W-DALI-930940
Nortécnica Ref:
68540001385000
EAN:
6941491747408
Description
Technical Information
Attributes
Protection class according to IEC 61140
II
Width
173
Outer diameter
173
Reflector
Matt
Lamp holder
None
Conductor cross section
-
Connection type
-
Housing colour
White
Dimmable
Yes
Surface protection
-
Voltage type
AC/DC
With movement sensor
No
Suitable for lamp power
-
Type of control gear
LED operating device current-controlled
Colour rendering index CRI
90-100
Suitable for wall mounting
No
Built-in width
-
With light sensor
No
Suitable for suspended mounting
No
Luminous intensity
-
Number of poles
-
Length
173
Heightdepth
52
Housing material
Aluminium
Lamp type
LED not exchangeable
Reflector colour
-
With presence detector
No
Degree of protection IP, front side
Other
Built-in length
-
Light outlet
Direct
Light distribution
Symmetric
Material cover
-
Impact strength
IK02
Nominal voltage
220
240
EF005138
No
Degree of protection IP
EV006419
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Covering of the luminaire with thermally insulating material possible
No
Suitable for number of light sources
-
Suitable for built-in mounting
Yes
With control gear
Yes
Suitable for workplace according to EN 12464-1
Yes
Suitable for surface mounting
Yes
Beam angle
41-80° - Wide beam
Connectable conductor cross section
-
Surface brushed
No
Luminous flux in emergency mode
-
Nominal current
57
57
Colour temperature
3000
4000
Max. system power
12
EF009349
1440
Colour of light
White
Adjustability
Not adjustable
Suitable for traverse mounting
No
Suitable for pedestalfloor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
Constant light output CLO
No
Built-in height
-
IFTTT support available
No
Luminous flux
-
1320
Type of wiring
Ending
Rated lifetime L70B50 at 25 C
100000
Built-in width
-
Colour consistency McAdam ellipse
SDCM6
EF011947
-
Photobiological safety according to EN 62471
RG0
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
-10
45
Filament test according to IEC 60695-2-11
650 °C - 30 s
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DMX
No
Dimming potentiometer integrated
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off trailing edge
No
Dimming phase cut-on leading edge
No
Dimming programmable
Yes
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
Yes
Dimming Zigbee
No
Dimming with push-button
Yes
EF012169
No
Light distributor
Reflector
Luminaire efficacy
120
Suitable for low voltage cable system
No
Dimming DSI
No
Unified Glare Ratio UGR
22
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Max. number of luminaires per miniature circuit breaker C16 MCB
106
Max. number of luminaires per miniature circuit breaker B16 MCB
106
Lumen maintenance at median useful life of 35,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 100,000 h at 25 C ambient tq
-
Failure rate at median useful life of 35,000 h at 25 C ambient tq
-
Failure rate at median useful life of 50,000 h at 25 C ambient tq
-
Failure rate at median useful life of 100,000 h at 25 C ambient tq
-
Dimming DALI-2
Yes
Flickering value Pst LM
-
Stroboscope effect value SVM
-
Colour of light adjustable
Positions
Luminous flux adjustable
Continuously variable
Beam angle adjustable
No
Exchangeable control gear
Yes
Built-in diameter
150
150
Compatible with Casambi
-
Energy efficiency class of the light source according to EU regulation 20192015
C
EF016939
-
Degree of protection IP, rear side
IP20
Movement sensorpresence detector technology
-
Luminaire efficacy
120
120
Rated luminous flux according to IEC 62722-2- 1
1440
1440
Emergency power supply system
None
Power consumption in emergency mode
-
Emergency function monitoring system
None
Containing product according to 20192020EU
Yes
Total harmonic distortion THD
10
Suitable for ceiling mounting
Yes
Built-in length
-
Built-in heightdepth
-
Power factor
0.9
UK Building Regs Part B fire rated - 30 minutes
No
UK Building Regs Part B fire rated - 60 minutes
No
UK Building Regs Part B fire rated - 90 minutes
No
Brands
OPPLE Lighting
Long Description
High quality LED Downlight with upgraded efficacy up to 130 lm/W with CRI90 for all versions. Unique optical lens concept with matte white (MW) reflector and low glare. Direct replacement for compact fluorescent downlights. IP54 on light emitting side. Provided with protective foil in order to protect the optics against dust and dirt during the installation.
