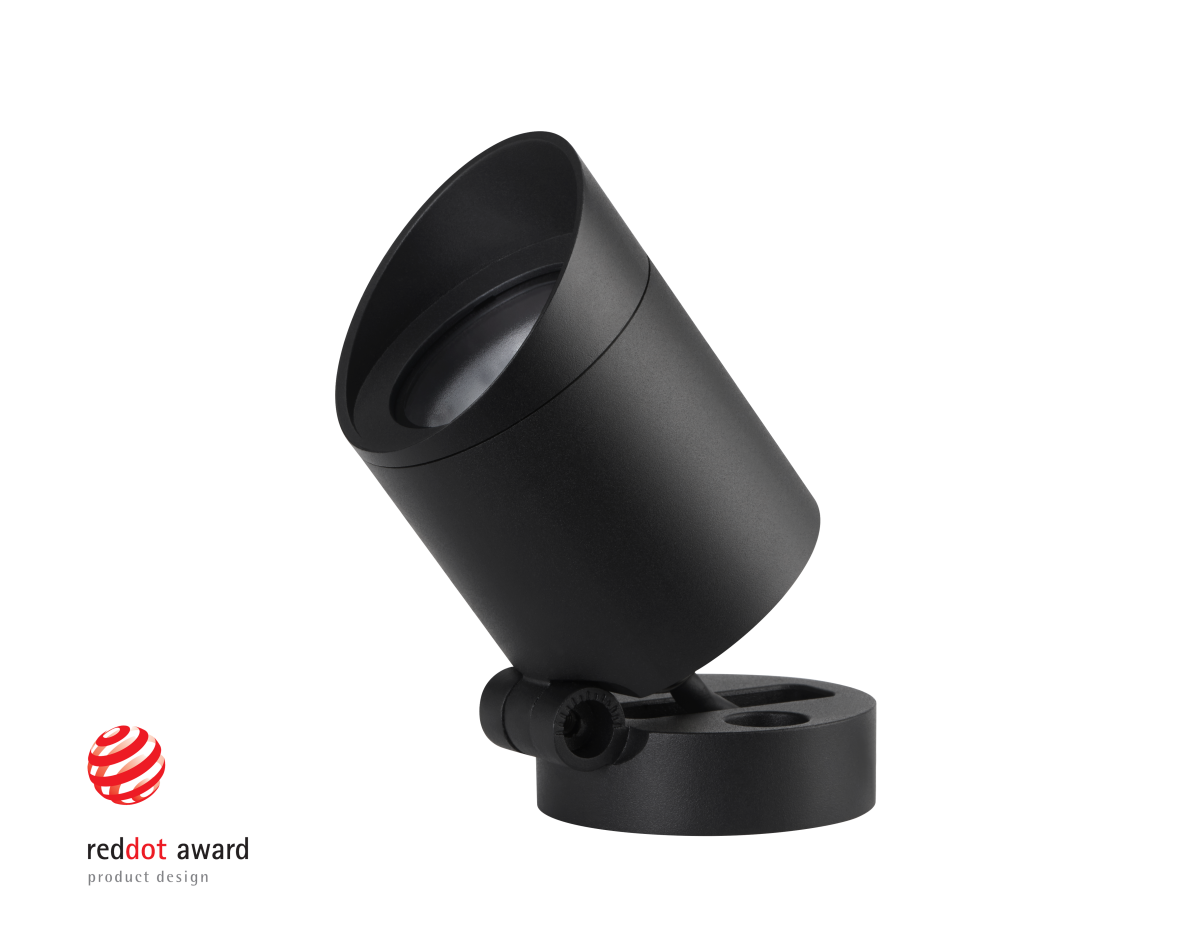

Stylish outdoor spot with a sleek award-winning design. Suitable for illuminating walls and signages or highlighting objects in parks and gardens. IP66 water resistance level and IK07 impact protection. Adjustable tilting angle of 180°. Die casted aluminium body. 1.5 meter cable for convenient connection. Earth spike accessory available.
Interior
LEDSpotProjector-E Rd82-8W-830-36D
Nortécnica Ref:
68709000027000
EAN:
6941497753113
Description
Technical Information
Attributes
Protection class according to IEC 61140
I

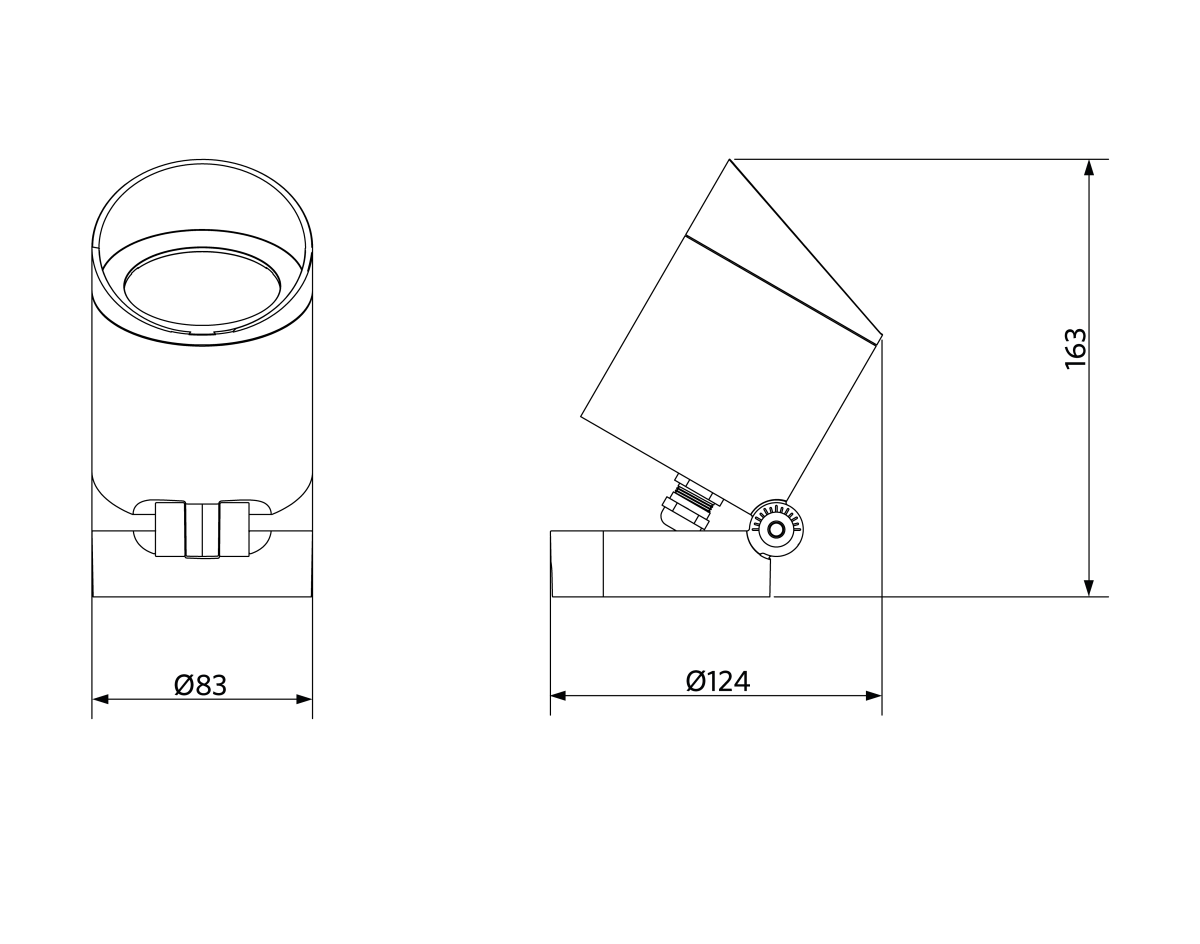

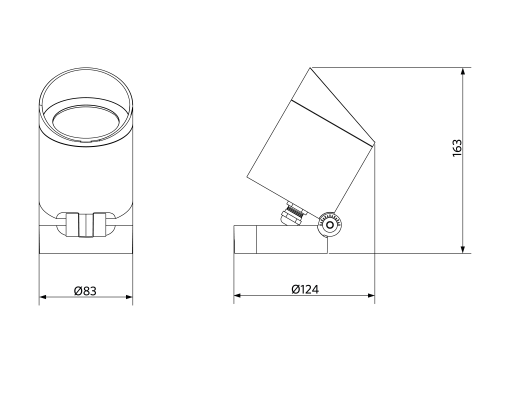

Width
83
Outer diameter
83
Reflector
Matt
Lamp holder
None
Conductor cross section
-
Connection type
Screwed terminal
Housing colour
Black
Dimmable
No
Surface protection
Powder coating
Voltage type
AC
With movement sensor
No
Suitable for lamp power
-
Type of control gear
LED operating device current-controlled
Colour rendering index CRI
80-89
Suitable for wall mounting
Yes
Built-in width
-
With light sensor
No
Suitable for suspended mounting
No
Luminous intensity
-
Number of poles
-
Length
83
Heightdepth
135
Housing material
Aluminium
Lamp type
LED not exchangeable
Reflector colour
-
With presence detector
No
Degree of protection IP, front side
IP66
Built-in length
-
Light outlet
Direct
Light distribution
Symmetric
Material cover
Glass matt/satinized
Impact strength
IK07
Nominal voltage
220
240
EF005138
No
Degree of protection IP
EV006422
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
-
Covering of the luminaire with thermally insulating material possible
No
Suitable for number of light sources
-
Suitable for built-in mounting
No
With control gear
Yes
Suitable for workplace according to EN 12464-1
No
Suitable for surface mounting
No
Beam angle
21-40° - Medium beam
Connectable conductor cross section
-
Surface brushed
-
Luminous flux in emergency mode
-
Nominal current
-
Colour temperature
3000
3000
Max. system power
8
EF009349
600
Colour of light
White
Adjustability
Swivelling
Suitable for traverse mounting
No
Suitable for pedestalfloor mounting
Yes
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
Constant light output CLO
No
Built-in height
-
IFTTT support available
No
Luminous flux
600
600
Type of wiring
Ending
Rated lifetime L70B50 at 25 C
50000
Built-in width
-
Colour consistency McAdam ellipse
SDCM4
EF011947
-
Photobiological safety according to EN 62471
RG1
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
-
Filament test according to IEC 60695-2-11
850 °C - 30 s
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming potentiometer integrated
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off trailing edge
No
Dimming phase cut-on leading edge
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
EF012169
Yes
Light distributor
Diffuser lens/optic/panel
Luminaire efficacy
75
Suitable for low voltage cable system
No
Dimming DSI
No
Unified Glare Ratio UGR
-
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Max. number of luminaires per miniature circuit breaker C16 MCB
45
Max. number of luminaires per miniature circuit breaker B16 MCB
18
Lumen maintenance at median useful life of 35,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 100,000 h at 25 C ambient tq
-
Failure rate at median useful life of 35,000 h at 25 C ambient tq
-
Failure rate at median useful life of 50,000 h at 25 C ambient tq
-
Failure rate at median useful life of 100,000 h at 25 C ambient tq
-
Dimming DALI-2
No
Flickering value Pst LM
-
Stroboscope effect value SVM
-
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Exchangeable control gear
No
Built-in diameter
-
Compatible with Casambi
-
Energy efficiency class of the light source according to EU regulation 20192015
F
EF016939
2010
2010
Degree of protection IP, rear side
Other
Movement sensorpresence detector technology
-
Luminaire efficacy
75
75
Rated luminous flux according to IEC 62722-2- 1
600
600
Emergency power supply system
None
Power consumption in emergency mode
-
Emergency function monitoring system
None
Containing product according to 20192020EU
Yes
Total harmonic distortion THD
-
Suitable for ceiling mounting
No
Built-in length
-
Built-in heightdepth
-
Power factor
-
UK Building Regs Part B fire rated - 30 minutes
No
UK Building Regs Part B fire rated - 60 minutes
No
UK Building Regs Part B fire rated - 90 minutes
No
Brands
OPPLE Lighting
Long Description
Stylish outdoor spot with a sleek award-winning design. Suitable for illuminating walls and signages or highlighting objects in parks and gardens. IP66 water resistance level and IK07 impact protection. Adjustable tilting angle of 180°. Die casted aluminium body. 1.5 meter cable for convenient connection. Earth spike accessory available.
