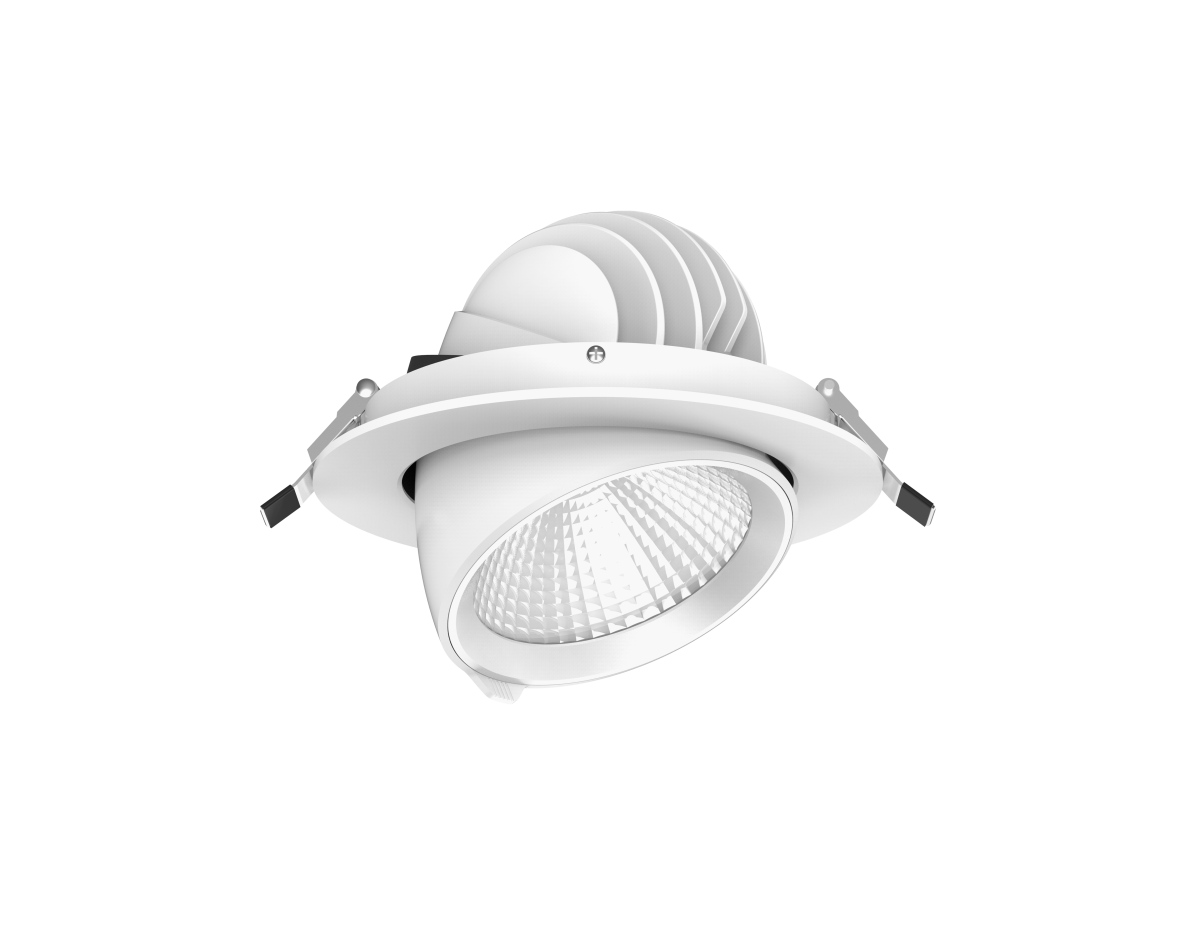

Powerful recessed, rotatable and tiltable spot. Clean and compact design ideal for retail shops, showrooms, and hospitality environments. Die-cast aluminium housing. Excellent colour rendering with CRI 90.
Interior
LEDSpotRS-P 35W-3000-60D-WH
Nortécnica Ref:
68541003068200
EAN:
6941408808260
Description
Technical Information
Attributes
Protection class according to IEC 61140
II
Width
180
Outer diameter
180
Reflector
High-gloss
Lamp holder
None
Conductor cross section
-
Connection type
-
Housing colour
White
Dimmable
No
Surface protection
-
Voltage type
AC
With movement sensor
No
Suitable for lamp power
-
Type of control gear
LED operating device current-controlled
Colour rendering index CRI
-
Suitable for wall mounting
No
Built-in width
-
With light sensor
No
Suitable for suspended mounting
No
Luminous intensity
-
Number of poles
-
Length
180
Heightdepth
128.5
Housing material
Aluminium
Lamp type
LED not exchangeable
Reflector colour
-
With presence detector
No
Degree of protection IP, front side
Other
Built-in length
-
Light outlet
Direct
Light distribution
Symmetric
Material cover
Other
Impact strength
IK03
Nominal voltage
220
240
EF005138
No
Degree of protection IP
EV006405
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Covering of the luminaire with thermally insulating material possible
No
Suitable for number of light sources
-
Suitable for built-in mounting
Yes
With control gear
Yes
Suitable for workplace according to EN 12464-1
-
Suitable for surface mounting
No
Beam angle
41-80° - Wide beam
Connectable conductor cross section
-
Surface brushed
No
Luminous flux in emergency mode
-
Nominal current
860
860
Colour temperature
3000
3000
Max. system power
35
EF009349
3150
Colour of light
White
Adjustability
Swivelling
Suitable for traverse mounting
No
Suitable for pedestalfloor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
Constant light output CLO
No
Built-in height
-
IFTTT support available
No
Luminous flux
-
Type of wiring
Ending
Rated lifetime L70B50 at 25 C
70000
Built-in width
-
Colour consistency McAdam ellipse
SDCM6
EF011947
-
Photobiological safety according to EN 62471
RG1
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
-10
45
Filament test according to IEC 60695-2-11
-
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming potentiometer integrated
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off trailing edge
No
Dimming phase cut-on leading edge
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
EF012169
Yes
Light distributor
Reflector
Luminaire efficacy
90
Suitable for low voltage cable system
No
Dimming DSI
No
Unified Glare Ratio UGR
-
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Max. number of luminaires per miniature circuit breaker C16 MCB
57
Max. number of luminaires per miniature circuit breaker B16 MCB
57
Lumen maintenance at median useful life of 35,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 100,000 h at 25 C ambient tq
-
Failure rate at median useful life of 35,000 h at 25 C ambient tq
-
Failure rate at median useful life of 50,000 h at 25 C ambient tq
-
Failure rate at median useful life of 100,000 h at 25 C ambient tq
-
Dimming DALI-2
No
Flickering value Pst LM
-
Stroboscope effect value SVM
-
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Exchangeable control gear
Yes
Built-in diameter
160
175
Compatible with Casambi
-
Energy efficiency class of the light source according to EU regulation 20192015
F
EF016939
2480
2480
Degree of protection IP, rear side
IP20
Movement sensorpresence detector technology
-
Luminaire efficacy
90
90
Rated luminous flux according to IEC 62722-2- 1
3150
3150
Emergency power supply system
None
Power consumption in emergency mode
-
Emergency function monitoring system
None
Containing product according to 20192020EU
Yes
Total harmonic distortion THD
-
Suitable for ceiling mounting
Yes
Built-in length
-
Built-in heightdepth
-
Power factor
0.9
UK Building Regs Part B fire rated - 30 minutes
No
UK Building Regs Part B fire rated - 60 minutes
No
UK Building Regs Part B fire rated - 90 minutes
No
Brands
OPPLE Lighting
Long Description
Powerful recessed, rotatable and tiltable spot. Clean and compact design ideal for retail shops, showrooms, and hospitality environments. Die-cast aluminium housing. Excellent colour rendering with CRI 90.
