Stylish, compact and sturdy wall mounted fixture for outdoor application. Ultra-slim with only 30mm thickness. Aesthetic up-down lighting effect. Elegant die-casted body design without visible screws . Easy loop-in and loop-out installation. IP65 and suitable for use on coastal applications.
Interior

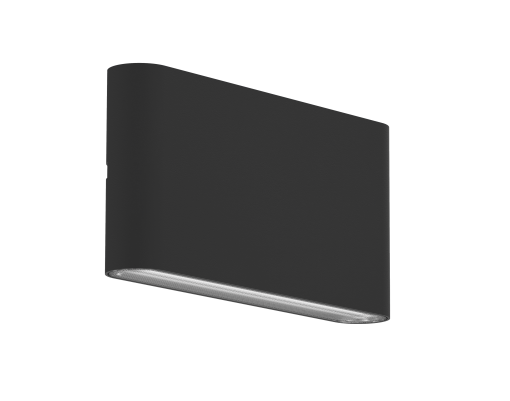

LEDWall-Lucia-E Re135-6W-830-BL
Nortécnica Ref:
68715000006300
EAN:
6931783002940
Description
Technical Information
Attributes
Protection class according to IEC 61140
I
Largura
90
Diâmetro externo
135
Lamp holder
-
Secção transversal do condutor
-
Connection type
Screwed terminal
Housing colour
Black
Dimmable
No
Voltage type
AC
With movement sensor
No
Suitable for lamp power
-
Type of grid
-
Type of control gear
LED operating device current-controlled
Colour rendering index CRI
80-89
Suitable for wall mounting
Yes
Largura para embutir
-
Diâmetro para embutir
-
With switch
No
With light sensor
No
Suitable for suspended mounting
No
Luminous intensity
-
Número de polos
-
Comprimento
135
Alturaprofundidade
30.5
Housing material
Aluminium
Lamp type
LED not exchangeable
With presence detector
No
Degree of protection IP, front side
IP65
Comprimento para embutir
-
Suitable for light line configuration
-
Suitable for emergency lighting
No
Light outlet
Indirect
Light distribution
Asymmetric
Material cover
Plastic, structured
Impact strength
IK08
Nominal voltage
220
240
Fonte de alimentação de emergência integrada
No
Degree of protection IP
EV006421
With light source
Yes
With mounting material
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
-
Covering of the luminaire with thermally insulating material possible
No
Adequado para número de lâmpadas
-
Suitable for built-in mounting
No
With control gear
Yes
Suitable for workplace according to EN 12464-1
No
Suitable for surface mounting
No
Beam angle
> 80° - Extreme wide beam
Connectable conductor cross section
0.75
1.5
Fluxo luminoso em funcionamento de emergência
-
Nominal current
-
Colour temperature
3000
3000
Potência máx. do sistema
6
EF009349
570
Colour of light
White
With air slots
No
Suitable for clamp-mounting
No
Constant light output CLO
No
IFTTT support available
No
Type of wiring
Ending
Vida útil nominal L70B50 a 25 C
50000
Colour consistency McAdam ellipse
SDCM4
EF011947
-
Photobiological safety according to EN 62471
RG1
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
-
Filament test according to IEC 60695-2-11
650 °C - 30 s
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming potentiometer integrated
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off trailing edge
No
Dimming phase cut-on leading edge
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
EF012169
Yes
Light distributor
None
Luminaire efficacy
95
Dimming DSI
No
Unified Glare Ratio UGR
-
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Número max. de luminárias por disjuntor C16
118
Número max. de luminárias por disjuntor B16
72
Lumen maintenance at median useful life of 35,000 h at 25 C ambient tq
-
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Lumen maintenance at median useful life of 75,000 h at 25 C ambient tq
-
Failure rate at median useful life of 35,000 h at 25 C ambient tq
-
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Failure rate at median useful life of 75,000 h at 25 C ambient tq
-
Dimming DALI-2
No
Valor estroboscópico Pst LM
-
Valor de efeito estroboscópico SVM
-
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Exchangeable control gear
No
Compatible with Casambi
No
Energy efficiency class of the light source according to EU regulation 20192015
F
EF016939
350
350
Degree of protection IP, rear side
Other
Movement sensorpresence detector technology
-
Luminaire efficacy
90
90
Rated luminous flux according to IEC 62722-2- 1
540
540
Emergency power supply system
None
Consumo de energia em modo de emergência
-
Emergency function monitoring system
None
Containing product according to 20192020EU
Yes
Total harmonic distortion THD
-
Max. number of luminaires per miniature circuit breaker C10 MCB
73
Suitable for ceiling mounting
No
Alturaprofundidade para embutir
-
Surface protection housing
-
Fator de potência
0.9
Ball-proof according to DIN 18032-3
No
Meets min. EIA lifetime criterion L90 at 50,000 hours at tq 25 C
-
Brands
OPPLE Lighting
Descrição Longa
Stylish, compact and sturdy wall mounted fixture for outdoor application. Ultra-slim with only 30mm thickness. Aesthetic up-down lighting effect. Elegant die-casted body design without visible screws . Easy loop-in and loop-out installation. IP65 and suitable for use on coastal applications.
