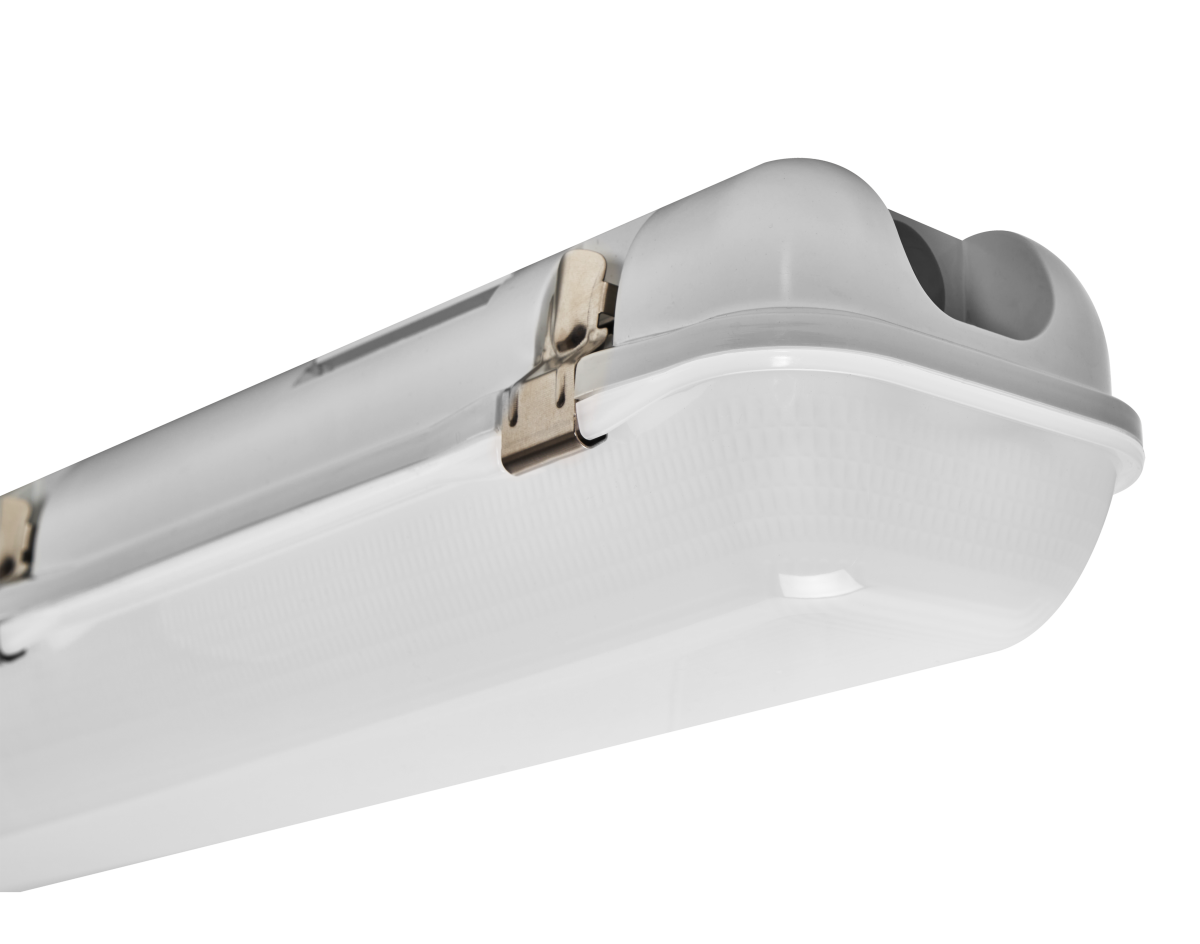

LEDWaterproofCLAE L125020W4000MD
Interior
LEDWaterproofCLAE L125020W4000MD
Nortécnica Ref:
68531000003900
EAN:
6941497756312
Description
Technical Information
Attributes
Protection class according to IEC 61140
I
Largura
127
Diâmetro externo
-
Lamp holder
-
Secção transversal do condutor
-
Connection type
Pushin clamp
Housing colour
Grey
Voltage type
ACDC
With movement sensor
Yes
Suitable for lamp power
-
Type of grid
-
Type of control gear
LED operating device currentcontrolled
Índice de restituição de cor CRI
8089
Suitable for wall mounting
Yes
Largura para embutir
-
Diâmetro para embutir
-
With light sensor
Yes
Suitable for suspended mounting
Yes
Intensidade luminosa
-
Número de polos
-
Comprimento
1260
Alturaprofundidade
86
Housing material
-
Lamp type
LED not exchangeable
Comprimento para embutir
-
Suitable for light line configuration
No
Suitable for emergency lighting
No
Light outlet
Direct
Light distribution
Symmetric
Material cover
Plastic mattsatinized
Impact strength
IK08
Nominal voltage
220
240
Fonte de alimentação de emergência integrada
No
Degree of protection IP
EV006421
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
Yes
Covering of the luminaire with thermally insulating material possible
-
Adequado para número de lâmpadas
-
Suitable for built-in mounting
No
With control gear
Yes
Suitable for workplace according to EN 12464-1
-
Suitable for surface mounting
Yes
Beam angle
80 Extreme wide beam
Nominal current
230
230
Colour temperature
4000
4000
Potência máx. do sistema
20
EF009349
2500
Colour of light
White
With air slots
No
Constant light output CLO
No
IFTTT support available
No
Type of wiring
Suitable for loopthrough wiring
Vida útil nominal L70B50 a 25 C
50000
Colour consistency McAdam ellipse
SDCM4
EF011947
-
Photobiological safety according to EN 62471
RG0
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
-25
40
Filament test according to IEC 60695-2-11
850 C 30 s
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming potentiometer integrated
No
Regulação LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off trailing edge
No
Dimming phase cut-on leading edge
No
Dimming programmable
No
Dimming RF
No
Regulação por redução da onda sinusoidal
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
EF012169
Yes
Light distributor
Diffuser lensopticpanel
Rendimento da luminária
125
Dimming DSI
No
Fator de brilho unificado UGR
-
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Número max. de luminárias por disjuntor C16
115
Número max. de luminárias por disjuntor B16
68
Depreciação do fluxo luminoso; vida útil média de 35 000 h; temp 25 C tq
-
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Depreciação do fluxo luminoso; vida útil média de 75 000 h; temp 25 C tq
-
Taxa de falha, vida operacional média 35 000 h, temperatura 25 C tq
-
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Taxa de falha, vida operacional média 75 000 h, temperatura 25 C tq
-
Dimming DALI-2
No
Valor estroboscópico Pst LM
-
Valor de efeito estroboscópico SVM
-
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Exchangeable control gear
Yes
Compatible with Casambi
No
Energy efficiency class of the light source according to EU regulation 20192015
E
Suitable for ceiling mounting
Yes
EF023518
-
Surface protection housing
-
Fator de potência
0.9
Meets min. EIA lifetime criterion L90 at 50,000 hours at tq 25 C
-
Brands
OPPLE
