Waterproof luminaire in "sealed-for-life" concept. Improved installation due to twist-and-lock endcap. Supplied with vandal-proof stainless steel ceiling and suspension clips. Equipped with 3x2.5mm² throughwiring.
Interior

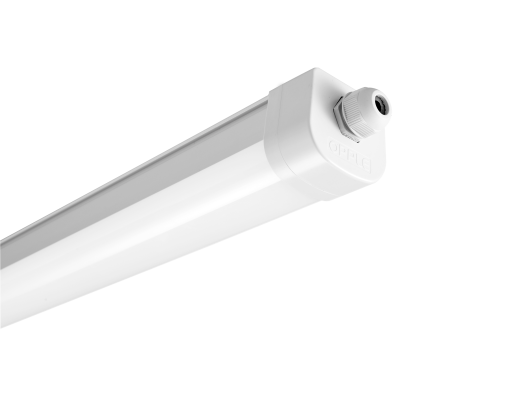

LEDWaterproof-E3 L1200-17W-840
Nortécnica Ref:
68531000012500
EAN:
6931783027783
Description
Technical Information
Attributes
Protection class according to IEC 61140
II
Width
62
Outer diameter
-
Lamp holder
-
Conductor cross section
-
Connection type
Push-in clamp
Housing colour
Grey
Dimmable
No
Voltage type
AC/DC
With movement sensor
No
Suitable for lamp power
-
Type of grid
None
Type of control gear
LED operating device current-controlled
Colour rendering index CRI
80-89
Suitable for wall mounting
Yes
Built-in width
-
Built-in diameter
-
With switch
No
With light sensor
No
Suitable for suspended mounting
Yes
Luminous intensity
-
Number of poles
-
Length
1266
Heightdepth
60
Housing material
Plastic
Lamp type
LED not exchangeable
With presence detector
No
Degree of protection IP, front side
IP66
Built-in length
-
Suitable for light line configuration
No
Suitable for emergency lighting
Yes
Light outlet
Direct
Light distribution
Symmetric
Material cover
Plastic matt/satinized
Impact strength
IK08
Nominal voltage
220
240
EF005138
No
Degree of protection IP
EV006422
With light source
Yes
With mounting material
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
Yes
Covering of the luminaire with thermally insulating material possible
-
Suitable for number of light sources
-
Suitable for built-in mounting
No
With control gear
Yes
Suitable for workplace according to EN 12464-1
-
Suitable for surface mounting
Yes
Beam angle
> 80° - Extreme wide beam
Connectable conductor cross section
1.5
2.5
Luminous flux in emergency mode
-
Nominal current
150
150
Colour temperature
4000
4000
Max. system power
17
EF009349
2380
Colour of light
White
With air slots
No
Suitable for clamp-mounting
Yes
Constant light output CLO
No
IFTTT support available
No
Type of wiring
Suitable for loop-through wiring
Rated lifetime L70B50 at 25 C
70000
Colour consistency McAdam ellipse
SDCM6
EF011947
-
Photobiological safety according to EN 62471
RG0
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
-20
45
Filament test according to IEC 60695-2-11
650 °C - 30 s
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming potentiometer integrated
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off trailing edge
No
Dimming phase cut-on leading edge
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
EF012169
Yes
Light distributor
Diffuser lens/optic/panel
Luminaire efficacy
140
Dimming DSI
No
Unified Glare Ratio UGR
-
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Max. number of luminaires per miniature circuit breaker C16 MCB
65
Max. number of luminaires per miniature circuit breaker B16 MCB
33
Lumen maintenance at median useful life of 35,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 75,000 h at 25 C ambient tq
-
Failure rate at median useful life of 35,000 h at 25 C ambient tq
-
Failure rate at median useful life of 50,000 h at 25 C ambient tq
-
Failure rate at median useful life of 75,000 h at 25 C ambient tq
-
Dimming DALI-2
No
Flickering value Pst LM
-
Stroboscope effect value SVM
-
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Exchangeable control gear
Yes
Compatible with Casambi
No
Energy efficiency class of the light source according to EU regulation 20192015
C
EF016939
-
Degree of protection IP, rear side
Other
Movement sensorpresence detector technology
-
Luminaire efficacy
140
140
Rated luminous flux according to IEC 62722-2- 1
2380
2380
Emergency power supply system
None
Power consumption in emergency mode
-
Emergency function monitoring system
None
Containing product according to 20192020EU
Yes
Total harmonic distortion THD
15
Max. number of luminaires per miniature circuit breaker C10 MCB
28
Suitable for ceiling mounting
Yes
Built-in heightdepth
-
Surface protection housing
-
Power factor
0.9
Ball-proof according to DIN 18032-3
No
Meets min. EIA lifetime criterion L90 at 50,000 hours at tq 25 C
-
Brands
OPPLE Lighting
Long Description
Waterproof luminaire in "sealed-for-life" concept. Improved installation due to twist-and-lock endcap. Supplied with vandal-proof stainless steel ceiling and suspension clips. Equipped with 3x2.5mm² throughwiring.
