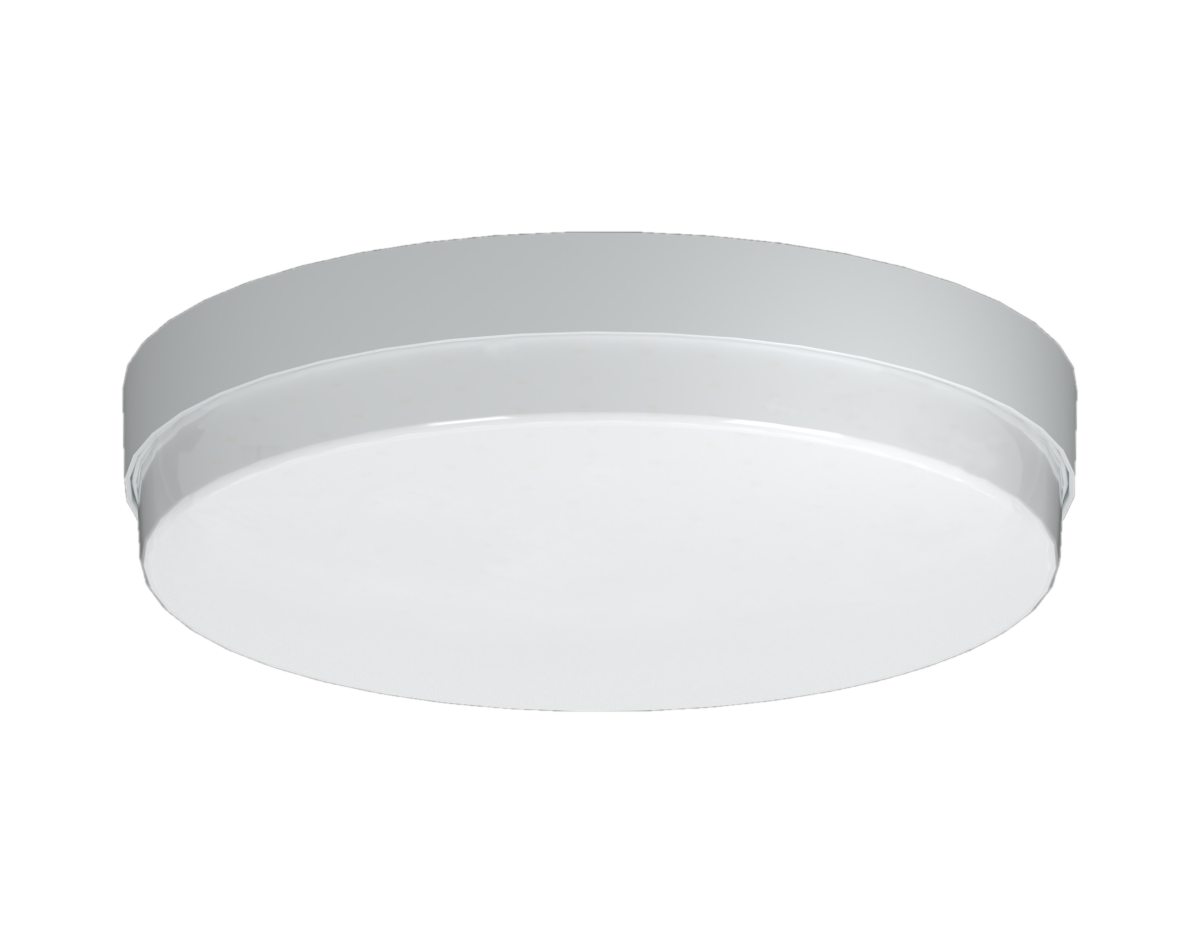

Robust, waterproof IP65 luminaire with high impact protection (IK10). Integrated CCT switch for color selection (3000K-4000K). Easy to install due to through-wiring possibility. Suitable for both indoor and outdoor applications.
Interior
LEDWM-P2 Rd320-1419W-830840-MD-EM3
Nortécnica Ref:
EAN:
6941491789057
Description
Technical Information
Attributes
Protection class according to IEC 61140
II
Width
320
Outer diameter
320
Lamp holder
-
Conductor cross section
2.5
Connection type
Push-in clamp
Housing colour
White
Dimmable
Yes
Voltage type
AC
With movement sensor
Yes
Suitable for lamp power
-
Type of grid
None
Type of control gear
LED operating device current-controlled
Colour rendering index CRI
80-89
Suitable for wall mounting
Yes
Built-in width
-
Built-in diameter
-
With switch
No
With light sensor
Yes
Suitable for suspended mounting
No
Luminous intensity
-
Number of poles
-
Length
320
Heightdepth
78
Housing material
Plastic
Lamp type
LED not exchangeable
With presence detector
No
Degree of protection IP, front side
IP65
Built-in length
-
Suitable for light line configuration
No
Suitable for emergency lighting
Yes
Light outlet
Direct
Light distribution
Symmetric
Material cover
Plastic, opal
Impact strength
IK10
Nominal voltage
220
240
EF005138
Yes
Degree of protection IP
EV006421
With light source
Yes
With mounting material
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
Yes
Covering of the luminaire with thermally insulating material possible
-
Suitable for number of light sources
-
Suitable for built-in mounting
No
With control gear
Yes
Suitable for workplace according to EN 12464-1
-
Suitable for surface mounting
Yes
Beam angle
> 80° - Extreme wide beam
Connectable conductor cross section
0.75
1.5
Luminous flux in emergency mode
350
Nominal current
100
100
Colour temperature
3000
4000
Max. system power
19
EF009349
2660
Colour of light
White
With air slots
No
Suitable for clamp-mounting
No
Constant light output CLO
No
IFTTT support available
No
Type of wiring
Suitable for loop-through wiring
Rated lifetime L70B50 at 25 C
100000
Colour consistency McAdam ellipse
SDCM6
EF011947
-
Photobiological safety according to EN 62471
RG0
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
0
50
Filament test according to IEC 60695-2-11
650 °C - 30 s
Dimming 0-10 V
No
Dimming 1-10 V
Yes
Dimming DALI
No
Dimming DMX
No
Dimming potentiometer integrated
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off trailing edge
No
Dimming phase cut-on leading edge
No
Dimming programmable
Yes
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
EF012169
No
Light distributor
Diffuser lens/optic/panel
Luminaire efficacy
140
Dimming DSI
No
Unified Glare Ratio UGR
-
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Max. number of luminaires per miniature circuit breaker C16 MCB
98
Max. number of luminaires per miniature circuit breaker B16 MCB
58
Lumen maintenance at median useful life of 35,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 75,000 h at 25 C ambient tq
-
Failure rate at median useful life of 35,000 h at 25 C ambient tq
-
Failure rate at median useful life of 50,000 h at 25 C ambient tq
-
Failure rate at median useful life of 75,000 h at 25 C ambient tq
-
Dimming DALI-2
No
Flickering value Pst LM
1
Stroboscope effect value SVM
0.4
Colour of light adjustable
Positions
Luminous flux adjustable
Positions
Beam angle adjustable
No
Exchangeable control gear
Yes
Compatible with Casambi
No
Energy efficiency class of the light source according to EU regulation 20192015
C
EF016939
-
Degree of protection IP, rear side
Other
Movement sensorpresence detector technology
High frequency
Luminaire efficacy
140
140
Rated luminous flux according to IEC 62722-2- 1
1960
2660
Emergency power supply system
Peripheral (individual battery)
Power consumption in emergency mode
2.5
Emergency function monitoring system
None
Containing product according to 20192020EU
Yes
Total harmonic distortion THD
15
Max. number of luminaires per miniature circuit breaker C10 MCB
61
Suitable for ceiling mounting
Yes
Built-in heightdepth
-
Surface protection housing
-
Power factor
0.9
Ball-proof according to DIN 18032-3
No
Meets min. EIA lifetime criterion L90 at 50,000 hours at tq 25 C
Yes
Brands
OPPLE Lighting
Long Description
Robust, waterproof IP65 luminaire with high impact protection (IK10). Integrated CCT switch for color selection (3000K-4000K). Easy to install due to through-wiring possibility. Suitable for both indoor and outdoor applications.
