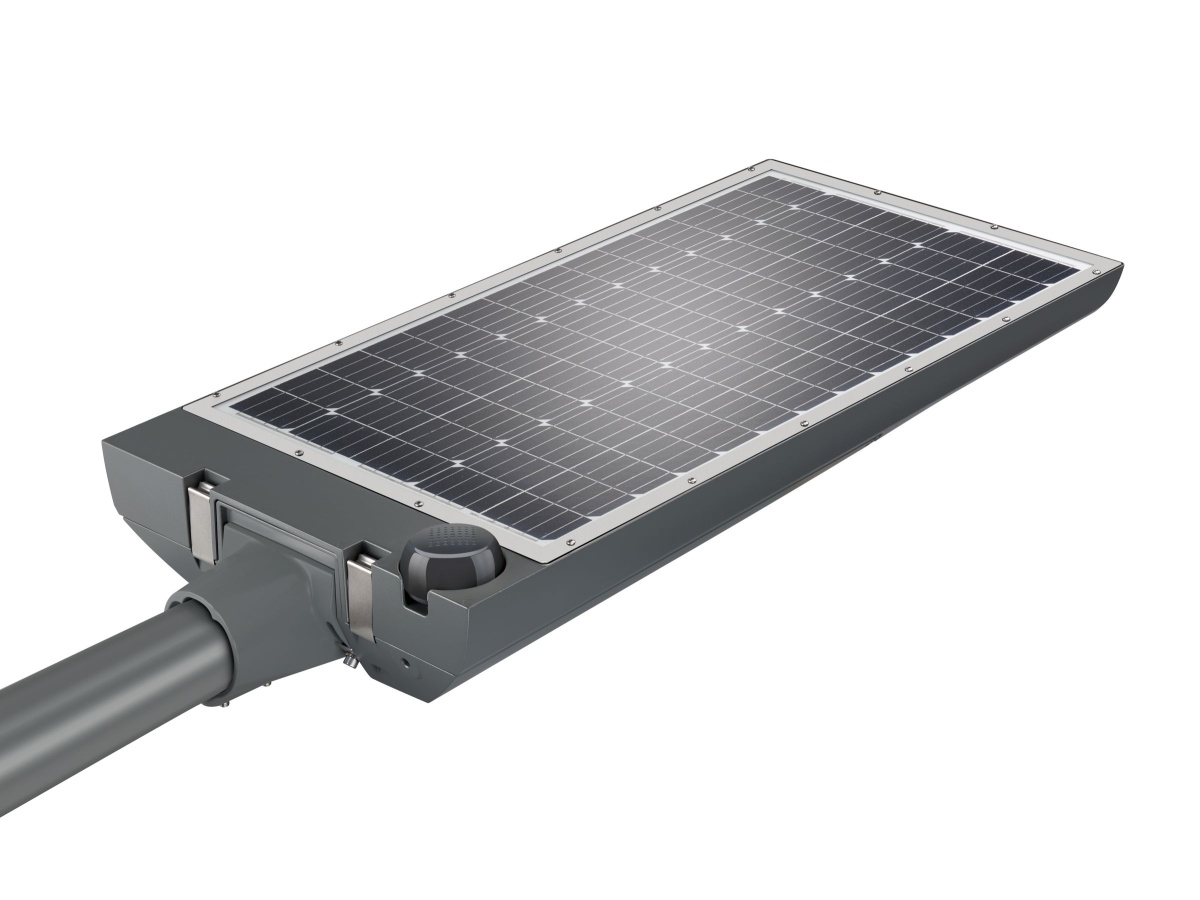

Solar streetlight, Alumínio fundido LM6 - grau de liga (EN AC-44300), Cinza, Topo do poste, Spigot para diâmetro de 76 a 62 mm, Perfil de regulação solar versão 1, 7134 lm, 45.1 W, 158 lm/W, 4000 K, (0,3818, 0,379), CRI70, Distribuição média 10, IP66 | Proteção contra penetração de pó, à prova de jato, IK09 | 10 J, Classe de segurança I, Nível de proteção contra sobretensão até 10 kV no modo diferencial e 10 kV no modo comum kV, Conector plug-in de 3 polos compatível com Wieland/Adels
Exterior

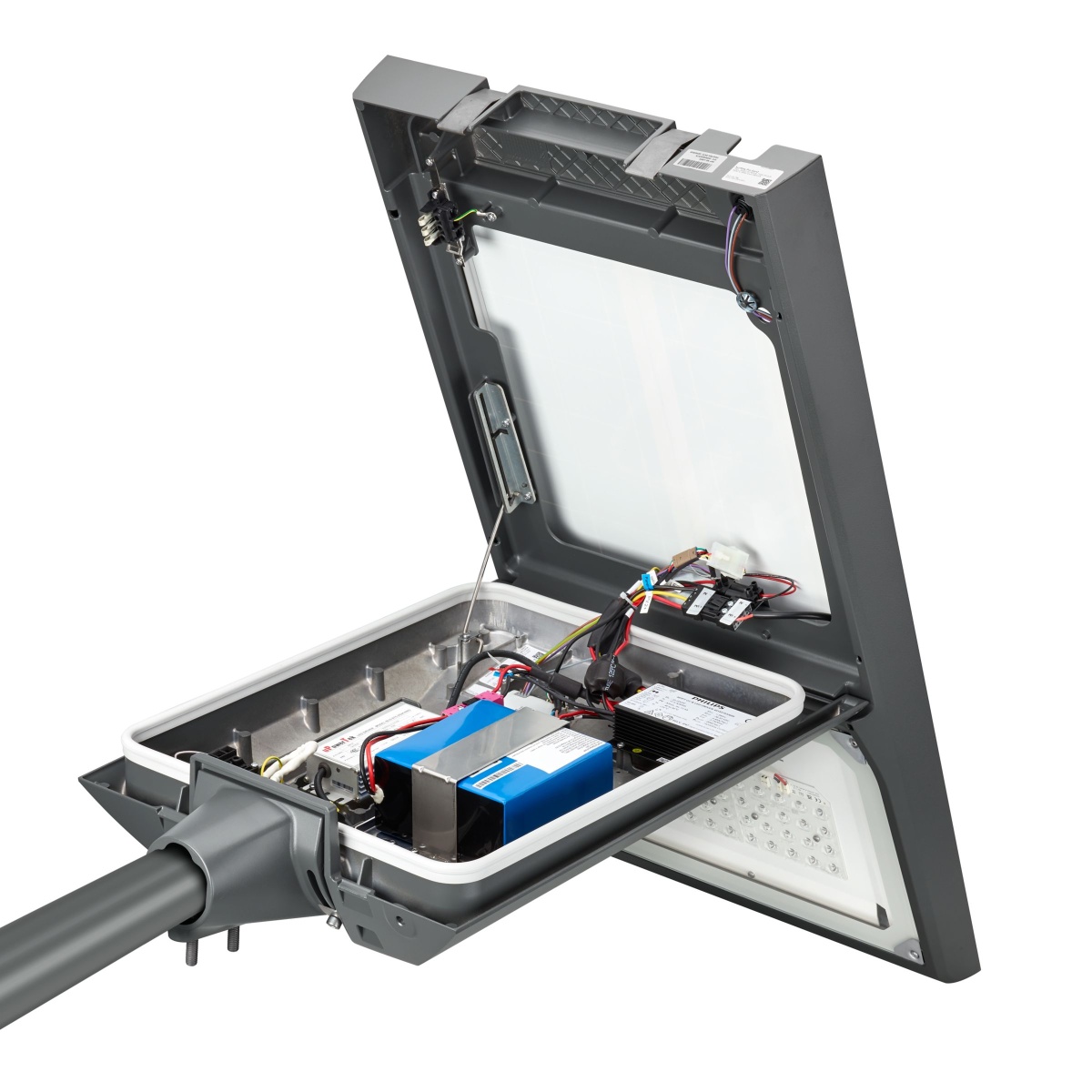

VGP726 LED80740 HY-BLE DM10 DGR 76P 18A
Nortécnica Ref:
EAN:
8720169798922
Description
Technical Information
Attributes
Mounting method
Post top/side entry
Protection class according to IEC 61140
I
Width
480
Lamp holder
None
Conductor cross section
2.5
Connection type
Screwed terminal
Housing colour
Grey
Surface protection
Powder coating
Voltage type
AC
Suitable for lamp power
0
0
Type of control gear
LED operating device voltage-controlled
Colour rendering index CRI
70-79
Cable length
0
Diameter
-
With light sensor
No
Number of poles
3
Length
965
Heightdepth
152
Housing material
Aluminium
Lamp type
LED exchangeable
Material cover
Glass transparent
Impact strength
IK09
With connection cable
No
Nominal voltage
220
240
Degree of protection IP
IP66
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Suitable for number of light sources
32
With control gear
Yes
Adjustable optics
No
Suitable for spigot size
76
60
Nominal current
946
946
Colour temperature
4000
4000
Max. system power
45.1
EF009349
7134
Colour of light
White
Remote control
None
With radio control
No
With light regulation program control
Yes
Constant light output CLO
No
IFTTT support available
No
Type of wiring
Suitable for loop-through wiring
Rated lifetime L70B50 at 25 C
-
Colour consistency McAdam ellipse
SDCM5
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
-20
40
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming potentiometer integrated
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off trailing edge
No
Dimming phase cut-on leading edge
No
Dimming programmable
Yes
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
EF012169
No
Light distributor
Refractor lens
Luminaire efficacy
158
Dimming DSI
No
Operation by Bluetooth
Yes
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Max. number of luminaires per miniature circuit breaker C16 MCB
3
Max. number of luminaires per miniature circuit breaker B16 MCB
2
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 100,000 h at 25 C ambient tq
97
Failure rate at median useful life of 50,000 h at 25 C ambient tq
-
Failure rate at median useful life of 100,000 h at 25 C ambient tq
-
Exchangeable control gear
Yes
Type of connection for sensorcommunication module
-
Energy efficiency class of the light source according to EU regulation 20192015
A
Power factor
0.95
Brands
PHILIPS
Long Description
Solar streetlight, Alumínio fundido LM6 - grau de liga (EN AC-44300), Cinza, Topo do poste, Spigot para diâmetro de 76 a 62 mm, Perfil de regulação solar versão 1, 7134 lm, 45.1 W, 158 lm/W, 4000 K, (0,3818, 0,379), CRI70, Distribuição média 10, IP66 | Proteção contra penetração de pó, à prova de jato, IK09 | 10 J, Classe de segurança I, Nível de proteção contra sobretensão até 10 kV no modo diferencial e 10 kV no modo comum kV, Conector plug-in de 3 polos compatível com Wieland/Adels
