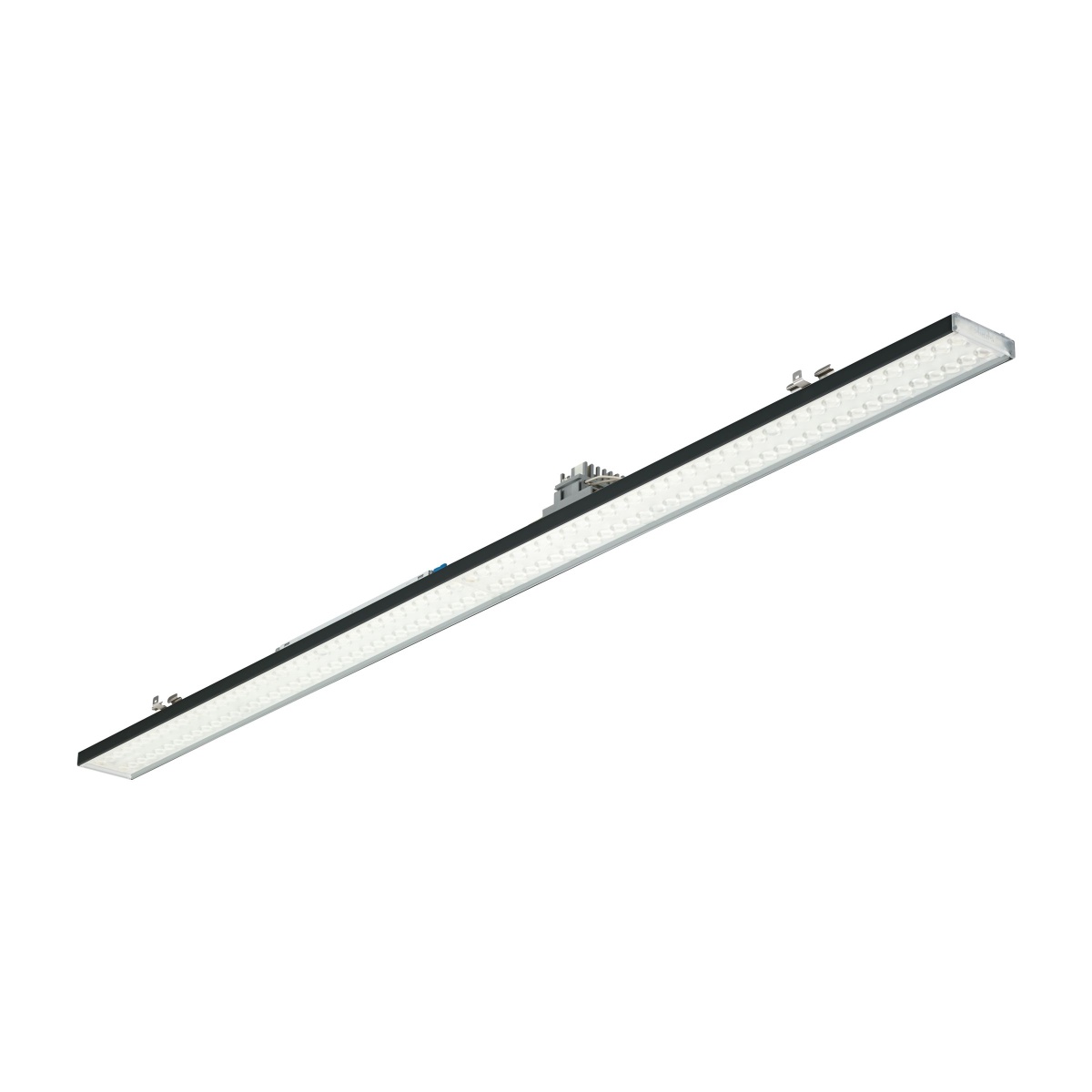

LL523X LED62S840 PSD WB 7 BK
Industry
LL523X LED62S840 PSD WB 7 BK
Nortécnica Ref:
EAN:
8718696384749
Description
Technical Information
Attributes
Protection class according to IEC 61140
I
Largura
62
Reflector
None
Lamp holder
Other
Secção transversal do condutor
0.5
Connection type
Other
Housing colour
Black
Voltage type
AC
Suitable for lamp power
41
41
Type of control gear
LED operating device current-controlled
Índice de restituição de cor CRI
80-89
Número de polos
5
Comprimento
2276
Alturaprofundidade
14
Housing material
Steel
Lamp type
LED not exchangeable
Suitable for emergency lighting
No
Light outlet
Direct
Light distribution
Symmetric
Nominal voltage
220
240
Fonte de alimentação de emergência integrada
No
Degree of protection IP
IP20
With light source
Yes
Adequado para número de lâmpadas
-
With control gear
Yes
Beam angle
41-80° - Wide beam
Nominal current
182
182
Colour temperature
4000
4000
Potência máx. do sistema
41
EF009349
6200
Colour of light
White
Constant light output CLO
No
Type of wiring
Ending
Vida útil nominal L70B50 a 25 C
90000
EF011871
-
Colour consistency McAdam ellipse
SDCM3
EF011947
7
Rated ambient temperature according to IEC 62722-2-1
25
25
Filament test according to IEC 60695-2-11
850 °C - 30 s
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DMX
No
Dimming potentiometer integrated
No
Regulação LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off trailing edge
No
Dimming phase cut-on leading edge
No
Dimming programmable
No
Dimming RF
No
Regulação por redução da onda sinusoidal
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
EF012169
No
Light distributor
Refractor lens
Rendimento da luminária
151
Dimming DSI
No
Operation by Bluetooth
No
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
95
Depreciação do fluxo luminoso; vida útil média de 100 000 h; temp 25 C tq
85
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
5
Taxa de falha, vida operacional média 100 000 h, temperatura 25 C tq
10
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Exchangeable control gear
Yes
Compatible with Casambi
No
Energy efficiency class of the light source according to EU regulation 20192015
D
Fator de potência
0.98
Meets min. EIA lifetime criterion L90 at 50,000 hours at tq 25 C
No
Brands
Signify
