Projetores Ledinaire tudo-em-um, Alumínio fundido em molde, Cinza, Cinza sinalização B (RAL7043), Revestimento de tinta em pó de camada única, Driver integrado no quadro LED (DoB), All-in, Multi Color Temperature, 7000 lm, 7350 lm, 65 W, 115 lm/W, 110 lm/W, 3000 K, 4000 K, 6500 K, (0.440,0.403); (0.369,0.364); (0.313,0.337) SDCM5, CRI80, Assimétrica, IP65 | Proteção contra penetração de pó, à prova de jato, IK08 | 5 J protegido contra vandalismo, Classe de segurança I, Nível de proteção contra sobretensão até 1,5 kV no modo diferencial e 1,5 kV no modo comum, Cabo de 2,0 m sem ficha, Fios/cabos flexíveis
Interior

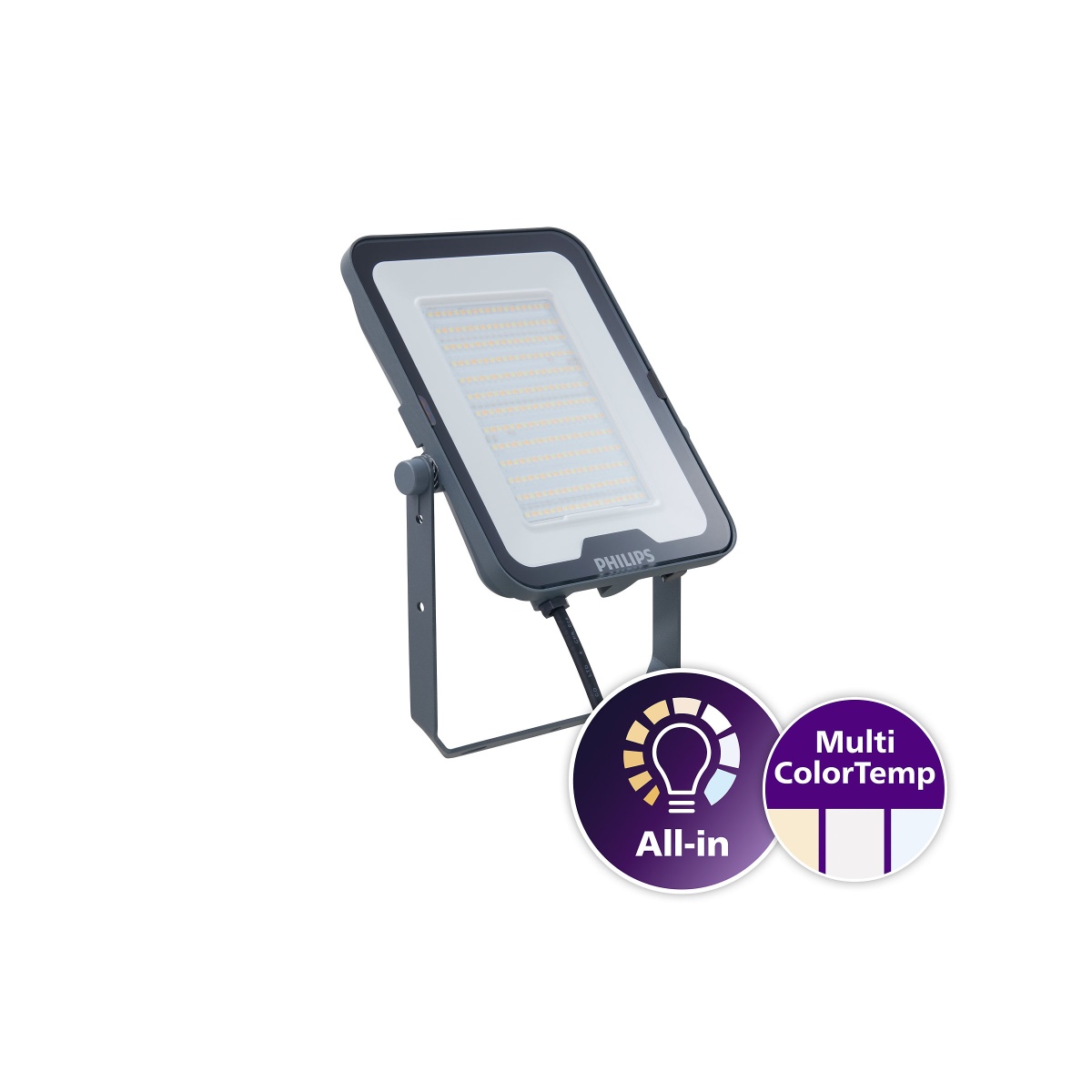

BVP167 LED73830_40_65 PSU 65W AWB
Nortécnica Ref:
EAN:
8720169736115
Description
Technical Information
Attributes
Protection class according to IEC 61140
I
Largura
203
Outer diameter
-
Reflector
None
Lamp holder
None
Conductor cross section
1
Connection type
Other
Housing colour
Grey
Surface protection
Powder coating
Voltage type
AC
With movement sensor
No
Suitable for lamp power
65
65
Type of control gear
Not required
Colour rendering index CRI
80-89
Suitable for wall mounting
Yes
Built-in width
-
With light sensor
No
Suitable for suspended mounting
No
Luminous intensity
689
Número de polos
3
Comprimento
286
Heightdepth
33
Housing material
Aluminium
Lamp type
LED not exchangeable
Reflector colour
White
Built-in length
-
Light outlet
Direct
Light distribution
Asymmetric
Material cover
Glass transparent
Impact strength
IK08
Nominal voltage
220
240
EF005138
No
Degree of protection IP
EV006421
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Covering of the luminaire with thermally insulating material possible
No
Suitable for number of light sources
1
Suitable for built-in mounting
No
With control gear
Yes
Suitable for workplace according to EN 12464-1
No
Suitable for surface mounting
Yes
Beam angle
> 80° - Extreme wide beam
Connectable conductor cross section
1
1
Surface brushed
No
Nominal current
0.27
0.27
Colour temperature
3000
6500
Max. system power
65
EF009349
7350
Colour of light
White
Adjustability
Rotatable
Suitable for traverse mounting
No
Suitable for pedestalfloor mounting
Yes
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
Constant light output CLO
No
IFTTT support available
No
Luminous flux
7000
7350
Type of wiring
Ending
Rated lifetime L70B50 at 25 C
80000
Colour consistency McAdam ellipse
SDCM5
EF011947
20
Photobiological safety according to EN 62471
RG0
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
25
25
Filament test according to IEC 60695-2-11
650 °C - 30 s
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming potentiometer integrated
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off trailing edge
No
Dimming phase cut-on leading edge
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
EF012169
Yes
Light distributor
Refractor lens
Luminaire efficacy
110
Suitable for low voltage cable system
No
Dimming DSI
No
Unified Glare Ratio UGR
-
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Max. number of luminaires per miniature circuit breaker C16 MCB
36
Max. number of luminaires per miniature circuit breaker B16 MCB
30
Lumen maintenance at median useful life of 35,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
80
Lumen maintenance at median useful life of 100,000 h at 25 C ambient tq
-
Failure rate at median useful life of 35,000 h at 25 C ambient tq
-
Failure rate at median useful life of 50,000 h at 25 C ambient tq
7.5
Failure rate at median useful life of 100,000 h at 25 C ambient tq
-
Dimming DALI-2
No
Flickering value Pst LM
1
Stroboscope effect value SVM
-
Colour of light adjustable
Positions
Luminous flux adjustable
No
Beam angle adjustable
No
Exchangeable control gear
No
Built-in diameter
-
-
Energy efficiency class of the light source according to EU regulation 20192015
E
Suitable for ceiling mounting
No
Built-in heightdepth
-
Power factor
0.95
Brands
PHILIPS
Descrição Longa
Projetores Ledinaire tudo-em-um, Alumínio fundido em molde, Cinza, Cinza sinalização B (RAL7043), Revestimento de tinta em pó de camada única, Driver integrado no quadro LED (DoB), All-in, Multi Color Temperature, 7000 lm, 7350 lm, 65 W, 115 lm/W, 110 lm/W, 3000 K, 4000 K, 6500 K, (0.440,0.403); (0.369,0.364); (0.313,0.337) SDCM5, CRI80, Assimétrica, IP65 | Proteção contra penetração de pó, à prova de jato, IK08 | 5 J protegido contra vandalismo, Classe de segurança I, Nível de proteção contra sobretensão até 1,5 kV no modo diferencial e 1,5 kV no modo comum, Cabo de 2,0 m sem ficha, Fios/cabos flexíveis
