As claraboias NatureConnect não se distinguem de uma janela real, proporcionando um efeito de luz natural e uma vista do céu, aumentando a sensação de espaço. O céu azul imita a luz do dia, utilizando receitas de luz com níveis melanópicos elevados, elevando o desempenho das pessoas e, ao mesmo tempo, oferece uma iluminação funcional.
Interior

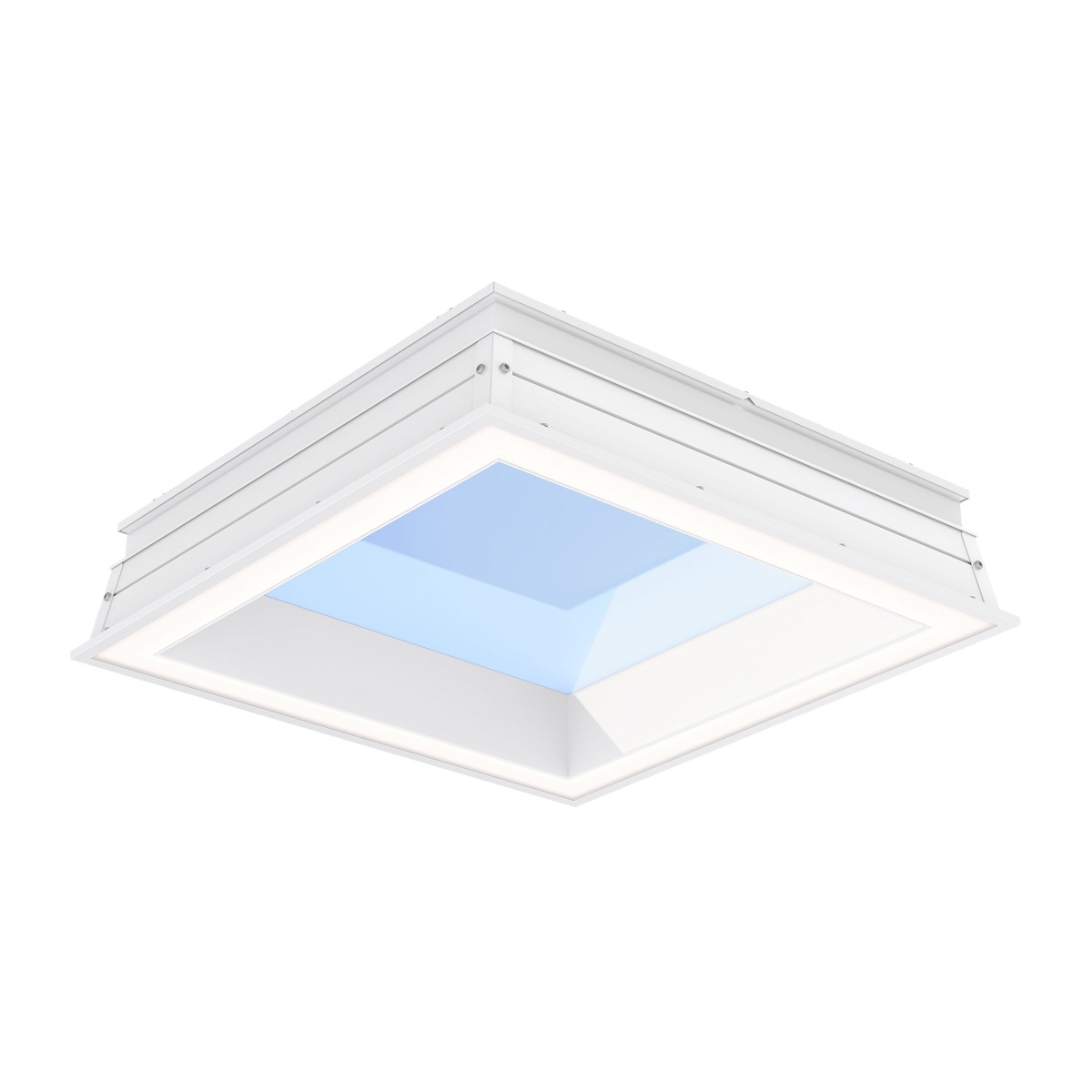

LP913P NC3 SKYLIGHT DIA W60L60
Nortécnica Ref:
EAN:
8720169627789
Description
Technical Information
Attributes
Protection class according to IEC 61140
I
Largura
595
Outer diameter
-
Lamp holder
Other
Conductor cross section
0.75
Connection type
Push-in clamp
Housing colour
White
Voltage type
AC
With movement sensor
No
Suitable for lamp power
-
-
Type of grid
None
Type of control gear
LED operating device current-controlled
Colour rendering index CRI
90-100
Suitable for wall mounting
Yes
Built-in width
595
Built-in diameter
-
With light sensor
No
Suitable for suspended mounting
Yes
Luminous intensity
-
Número de polos
5
Comprimento
595
Heightdepth
138
Housing material
Aluminium
Lamp type
LED exchangeable
Built-in length
595
Suitable for light line configuration
Yes
Suitable for emergency lighting
No
Light outlet
Direct
Light distribution
Symmetric
Material cover
Plastic, opal
Impact strength
IK02
Nominal voltage
220
240
EF005138
No
Degree of protection IP
EV006418
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Covering of the luminaire with thermally insulating material possible
No
Suitable for number of light sources
-
Suitable for built-in mounting
Yes
With control gear
Yes
Suitable for workplace according to EN 12464-1
Yes
Suitable for surface mounting
Yes
Beam angle
Open beam/diffuse
Nominal current
300
300
Colour temperature
4300
5000
Max. system power
73
EF009349
7300
Colour of light
Multi-coloured
With air slots
No
Constant light output CLO
No
IFTTT support available
No
Type of wiring
Ending
Rated lifetime L70B50 at 25 C
-
Colour consistency McAdam ellipse
SDCM3
EF011947
20
Photobiological safety according to EN 62471
RG0
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
10
35
Filament test according to IEC 60695-2-11
650 °C - 30 s
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DMX
No
Dimming potentiometer integrated
No
Dimming LineSwitch
Yes
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off trailing edge
No
Dimming phase cut-on leading edge
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
EF012169
No
Light distributor
Diffuser lens/optic/panel
Luminaire efficacy
100
Dimming DSI
No
Unified Glare Ratio UGR
19
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Max. number of luminaires per miniature circuit breaker C16 MCB
-
Max. number of luminaires per miniature circuit breaker B16 MCB
18
Lumen maintenance at median useful life of 35,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
90
Lumen maintenance at median useful life of 75,000 h at 25 C ambient tq
-
Failure rate at median useful life of 35,000 h at 25 C ambient tq
-
Failure rate at median useful life of 50,000 h at 25 C ambient tq
10
Failure rate at median useful life of 75,000 h at 25 C ambient tq
-
Dimming DALI-2
Yes
Flickering value Pst LM
1
Stroboscope effect value SVM
0.4
Colour of light adjustable
Continuously variable
Luminous flux adjustable
Continuously variable
Beam angle adjustable
No
Exchangeable control gear
Yes
Compatible with Casambi
No
Energy efficiency class of the light source according to EU regulation 20192015
D
Suitable for ceiling mounting
Yes
Built-in heightdepth
138
Surface protection housing
Powder coating
Power factor
0.9
Meets min. EIA lifetime criterion L90 at 50,000 hours at tq 25 C
No
Brands
PHILIPS
Descrição Longa
As claraboias NatureConnect não se distinguem de uma janela real, proporcionando um efeito de luz natural e uma vista do céu, aumentando a sensação de espaço. O céu azul imita a luz do dia, utilizando receitas de luz com níveis melanópicos elevados, elevando o desempenho das pessoas e, ao mesmo tempo, oferece uma iluminação funcional.
