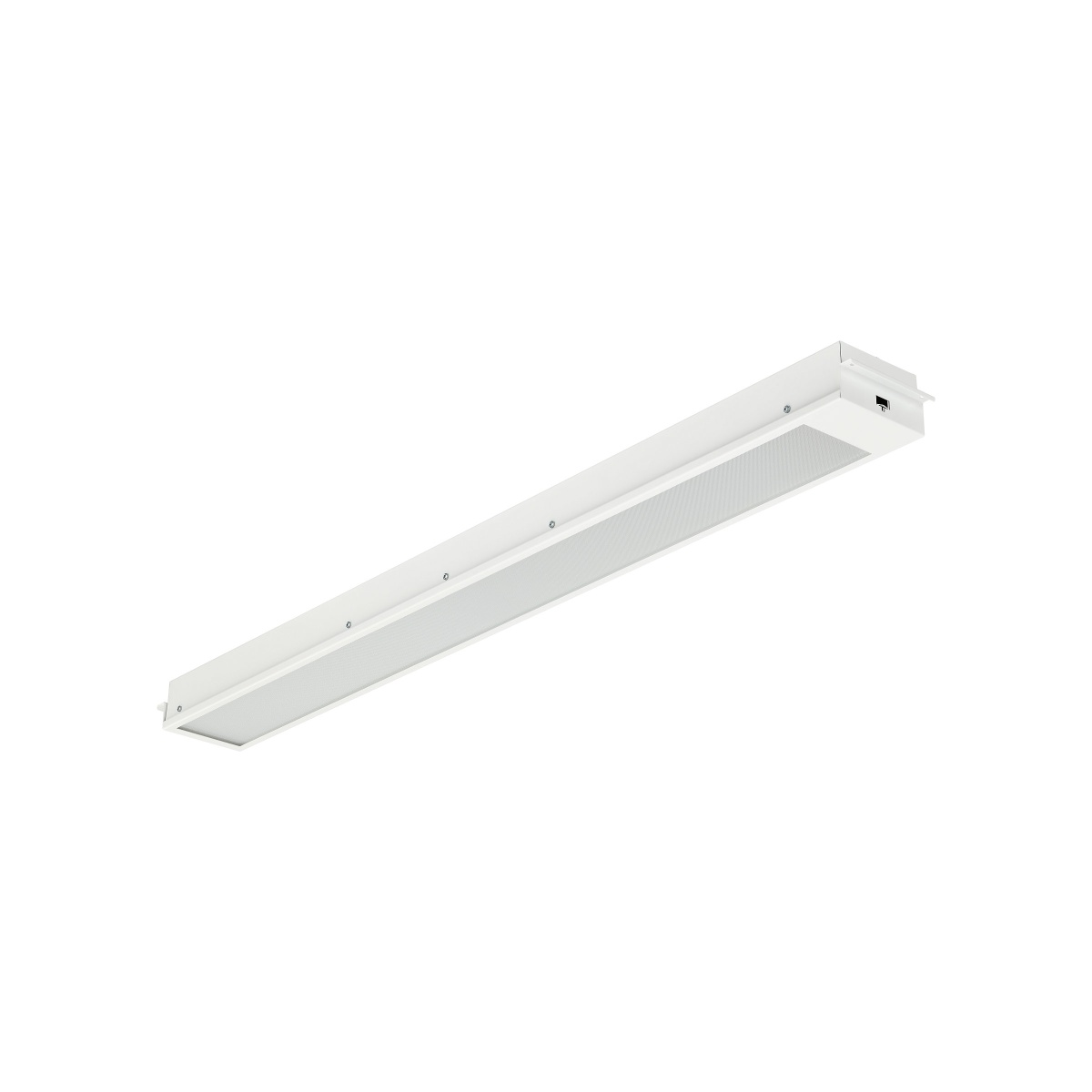

    RC455B 40SBU840 MLO L1200 W100 B40
    PHILIPS
    1

    Interior

    RC455B 40SBU840 MLO L1200 W100 B40

    Nortécnica Ref:
    EAN: 8720169633803
    Login to see prices and stocks

    Description

    1200X100 mm, Bandraster ceiling version, Aço, Branco, Branco segurança (RAL9003), Revestimento de tinta em pó de camada única, Suporte de montagem - altura fixa 40 mm - Para perfis T/Omega, Unidade de fonte de alimentação com interface DALI, compatível com DC para iluminação de emergência central (integrado), 4000 lm, 39.9 W, 100 lm/W, 4000 K, (0.38, 0.38) SDCM ≤3.0, UGR19, L65≤3000 cd/m², Feixe largo conforme às normas de escritório, Refletor branco, Óptica de micro-lentes, Polimetacrilato de metilo, IP20 | Proteção de dedos, IK03 | 0,3 J, Classe de segurança I, Conector de encaixe, 5 polos, TP(b) diffuser flammability class

    Technical Information

    Attributes
    Protection class according to IEC 61140
    I
    Width
    100
    Outer diameter
    -
    Lamp holder
    Other
    Conductor cross section
    0.5
    Connection type
    Push-in clamp
    Housing colour
    White
    Voltage type
    AC/DC
    With movement sensor
    No
    Suitable for lamp power
    -
    -
    Type of grid
    None
    Type of control gear
    LED operating device current-controlled
    Colour rendering index CRI
    80-89
    Suitable for wall mounting
    No
    Built-in width
    100
    Built-in diameter
    -
    With light sensor
    No
    Suitable for suspended mounting
    No
    Luminous intensity
    -
    Number of poles
    5
    Length
    1200
    Heightdepth
    70
    Housing material
    Steel
    Lamp type
    LED not exchangeable
    Built-in length
    1200
    Suitable for light line configuration
    No
    Suitable for emergency lighting
    No
    Light outlet
    Direct
    Light distribution
    Symmetric
    Material cover
    Plastic, structured
    Impact strength
    IK03
    Nominal voltage
    220
    240
    EF005138
    No
    Degree of protection IP
    EV006405
    With light source
    Yes
    Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
    No
    Covering of the luminaire with thermally insulating material possible
    Yes
    Suitable for number of light sources
    96
    Suitable for built-in mounting
    No
    With control gear
    Yes
    Suitable for workplace according to EN 12464-1
    Yes
    Suitable for surface mounting
    No
    Beam angle
    41-80° - Wide beam
    Nominal current
    80
    350
    Colour temperature
    4000
    4000
    Max. system power
    39.9
    EF009349
    4000
    Colour of light
    White
    With air slots
    No
    Constant light output CLO
    No
    IFTTT support available
    No
    Type of wiring
    Ending
    Rated lifetime L70B50 at 25 C
    -
    Colour consistency McAdam ellipse
    SDCM2
    EF011947
    20
    Photobiological safety according to EN 62471
    RG1
    Degree of protection NEMA
    -
    Rated ambient temperature according to IEC 62722-2-1
    25
    25
    Filament test according to IEC 60695-2-11
    850 °C - 30 s
    Dimming 0-10 V
    No
    Dimming 1-10 V
    No
    Dimming DALI
    Yes
    Dimming DMX
    No
    Dimming potentiometer integrated
    No
    Dimming LineSwitch
    No
    Dimming manufacturer's proprietary system
    Yes
    Dimming mains voltage modulation
    No
    Dimming phase cut-off trailing edge
    No
    Dimming phase cut-on leading edge
    No
    Dimming programmable
    Yes
    Dimming RF
    No
    Dimming Sine Wave Reduction
    No
    Dimming Touch and Dim
    Yes
    Dimming Zigbee
    No
    Dimming with push-button
    No
    EF012169
    No
    Light distributor
    Focal lens
    Luminaire efficacy
    100
    Dimming DSI
    No
    Unified Glare Ratio UGR
    19
    Operation by Bluetooth
    No
    Compatible with Apple HomeKit
    No
    Compatible with Google Assistant
    No
    Compatible with Amazon Alexa
    No
    Max. number of luminaires per miniature circuit breaker C16 MCB
    35
    Max. number of luminaires per miniature circuit breaker B16 MCB
    21
    Lumen maintenance at median useful life of 35,000 h at 25 C ambient tq
    -
    Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
    90
    Lumen maintenance at median useful life of 75,000 h at 25 C ambient tq
    -
    Failure rate at median useful life of 35,000 h at 25 C ambient tq
    -
    Failure rate at median useful life of 50,000 h at 25 C ambient tq
    2.5
    Failure rate at median useful life of 75,000 h at 25 C ambient tq
    -
    Dimming DALI-2
    Yes
    Flickering value Pst LM
    1
    Stroboscope effect value SVM
    1.6
    Colour of light adjustable
    No
    Luminous flux adjustable
    No
    Beam angle adjustable
    No
    Exchangeable control gear
    Yes
    Compatible with Casambi
    No
    Energy efficiency class of the light source according to EU regulation 20192015
    C
    Suitable for ceiling mounting
    Yes
    Built-in heightdepth
    70
    Surface protection housing
    Powder coating
    Power factor
    0.9
    Meets min. EIA lifetime criterion L90 at 50,000 hours at tq 25 C
    No
    Brands
    PHILIPS
    Long Description
    1200X100 mm, Bandraster ceiling version, Aço, Branco, Branco segurança (RAL9003), Revestimento de tinta em pó de camada única, Suporte de montagem - altura fixa 40 mm - Para perfis T/Omega, Unidade de fonte de alimentação com interface DALI, compatível com DC para iluminação de emergência central (integrado), 4000 lm, 39.9 W, 100 lm/W, 4000 K, (0.38, 0.38) SDCM ≤3.0, UGR19, L65≤3000 cd/m², Feixe largo conforme às normas de escritório, Refletor branco, Óptica de micro-lentes, Polimetacrilato de metilo, IP20 | Proteção de dedos, IK03 | 0,3 J, Classe de segurança I, Conector de encaixe, 5 polos, TP(b) diffuser flammability class
