1410x55 mm; H88 mm, Alumínio, Alumínio, Suspensas, Conjunto de suspensão 2 fio, Unidade de fonte de alimentação com interface DALI, 7700 lm, 57 W, 135 lm/W, 4000 K, (0.38, 0.38) SDCM 3, CRI90, UGR16, Feixe largo, Fosco, Polimetacrilato de metilo, IP20 | Proteção de dedos, IK03 | 0,35 J reforçado, Classe de segurança I, Conector de encaixe, 5 polos
Interior

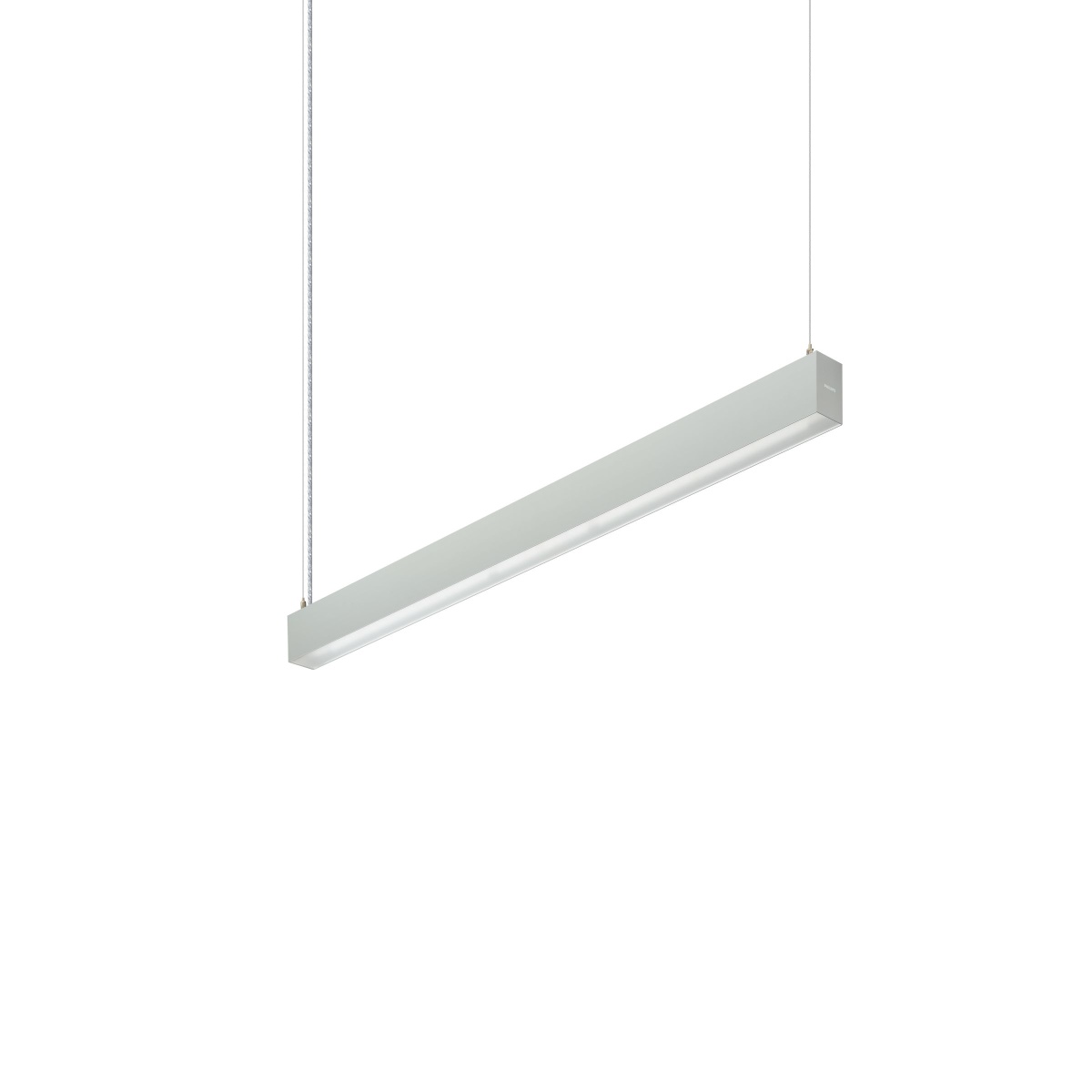

SP532P 77S940 PSD SM2 L1410 ALU
Nortécnica Ref:
EAN:
8719514972650
Description
Technical Information
Attributes
Protection class according to IEC 61140
I
Largura
55
Reflector
None
Lamp holder
Other
Conductor cross section
0.5
Connection type
Other
Housing colour
Aluminium
Voltage type
AC
Suitable for lamp power
-
-
Type of grid
Other
Type of control gear
LED operating device current-controlled
Colour rendering index CRI
90-100
Diameter
-
Número de polos
5
Comprimento
1409
Heightdepth
88
Housing material
Aluminium
Lamp type
LED not exchangeable
Direct-indirect proportion separately controllable
No
Suitable for light line configuration
No
Suitable for emergency lighting
No
Light outlet
Direct/indirect
Light distribution
Symmetric
Material cover
Plastic, transparent
Pendant length
0
1500
Impact strength
IK02
Nominal voltage
220
240
EF005138
No
Degree of protection IP
IP20
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Suitable for number of light sources
8
With control gear
Yes
With suspension
Yes
Suitable for workplace according to EN 12464-1
Yes
Nominal current
235
235
Colour temperature
4000
4000
Max. system power
57
EF009349
7700
Colour of light
White
Constant light output CLO
No
IFTTT support available
No
Type of wiring
Ending
Rated lifetime L70B50 at 25 C
-
Colour consistency McAdam ellipse
SDCM3
Degree of protection NEMA
-
Filament test according to IEC 60695-2-11
650 °C - 30 s
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DMX
No
Dimming potentiometer integrated
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off trailing edge
No
Dimming phase cut-on leading edge
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
EF012169
No
Light distributor
Diffuser lens/optic/panel
Luminaire efficacy
135
Dimming DSI
No
Unified Glare Ratio UGR
16
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Max. number of luminaires per miniature circuit breaker C16 MCB
21
Max. number of luminaires per miniature circuit breaker B16 MCB
12
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
90
Lumen maintenance at median useful life of 75,000 h at 25 C ambient tq
-
Failure rate at median useful life of 50,000 h at 25 C ambient tq
0.05
Failure rate at median useful life of 75,000 h at 25 C ambient tq
-
Dimming DALI-2
Yes
Flickering value Pst LM
1
Stroboscope effect value SVM
0.4
Colour of light adjustable
No
Luminous flux adjustable
Continuously variable
Beam angle adjustable
No
Exchangeable control gear
Yes
Energy efficiency class of the light source according to EU regulation 20192015
D
Power factor
0.9
Brands
PHILIPS
Descrição Longa
1410x55 mm; H88 mm, Alumínio, Alumínio, Suspensas, Conjunto de suspensão 2 fio, Unidade de fonte de alimentação com interface DALI, 7700 lm, 57 W, 135 lm/W, 4000 K, (0.38, 0.38) SDCM 3, CRI90, UGR16, Feixe largo, Fosco, Polimetacrilato de metilo, IP20 | Proteção de dedos, IK03 | 0,35 J reforçado, Classe de segurança I, Conector de encaixe, 5 polos
