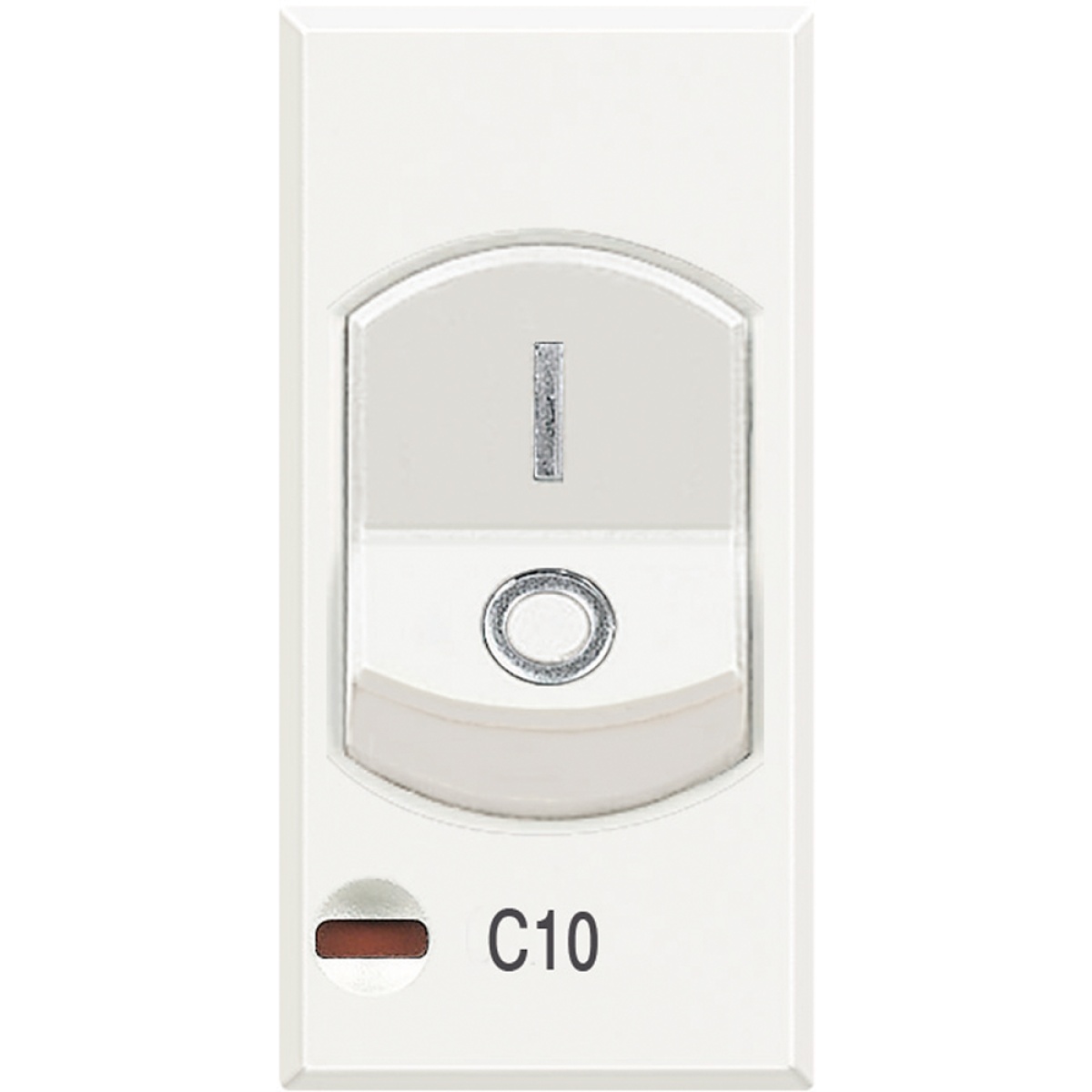

AXOLUTE-MAGNETOTERM.1PN - 10A
Cutting and Protection Devices
AXOLUTE-MAGNETOTERM.1PN - 10A
Manufacturer Ref:
HD4301A10
Nortécnica Ref:
EAN:
8012199987903
Description
Technical Information
Attributes
Voltage type
-
Built-in depth
44.5
Rated current
10
EF000228
230
Frequency
50
60
Release characteristic
C
Rated insulation voltage Ui
-
Current limiting class
1
Overvoltage category
-
Pollution degree
-
Largura em número de módulos
22.3
Explosion-proof
-
Power loss
-
Degree of protection IP
IP20
Number of protected poles
1
Concurrently switching neutral conductor
Yes
Connectable conductor cross section solid-core
2.5
2.5
Connectable conductor cross section multi-wired
-
-
Ambient temperature during operating
-5
50
Flush-mounted installation
-
Additional equipment possible
-
Number of poles total
1
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
-
Rated impulse withstand voltage Uimp
-
Brands
Legrand
Technical Sheet
