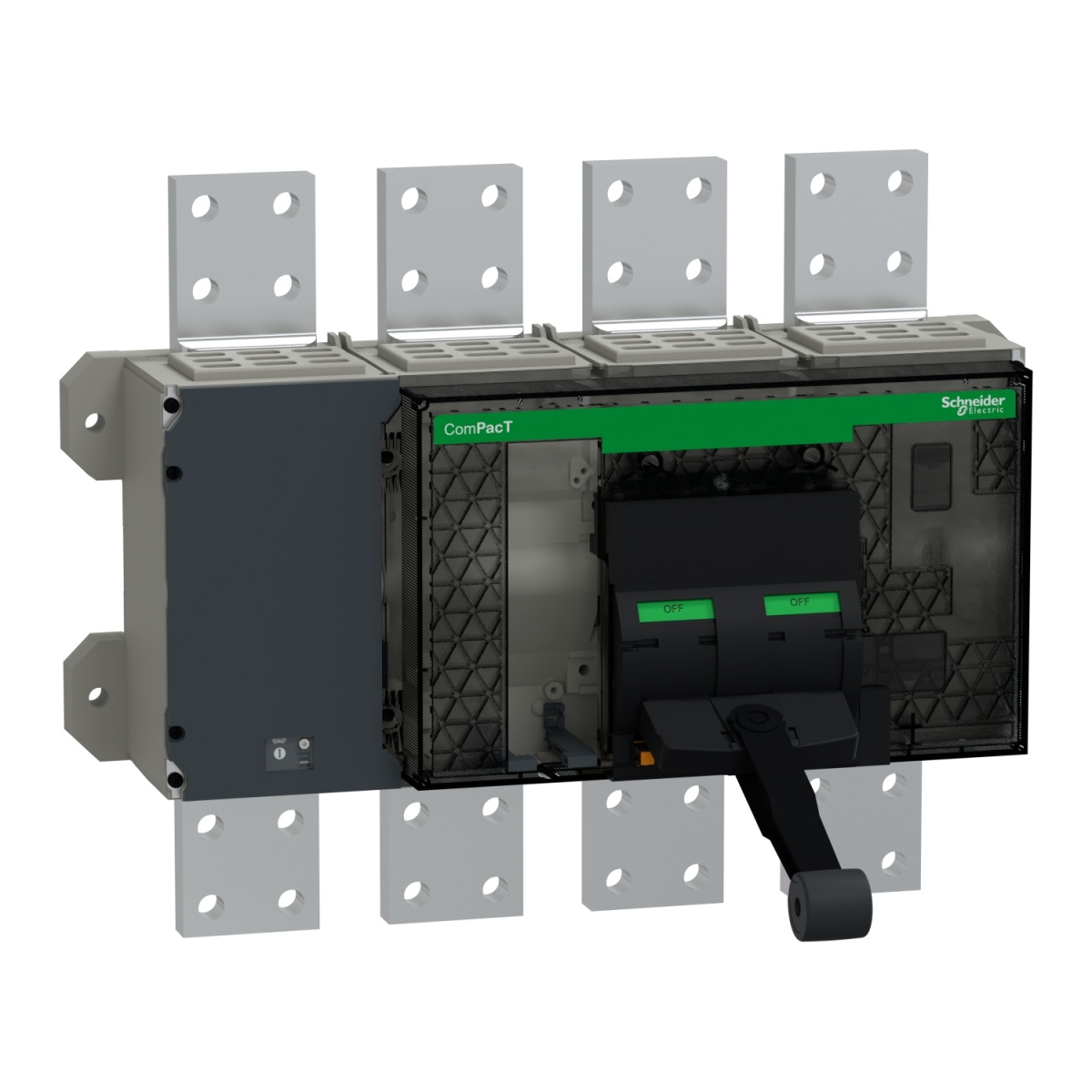

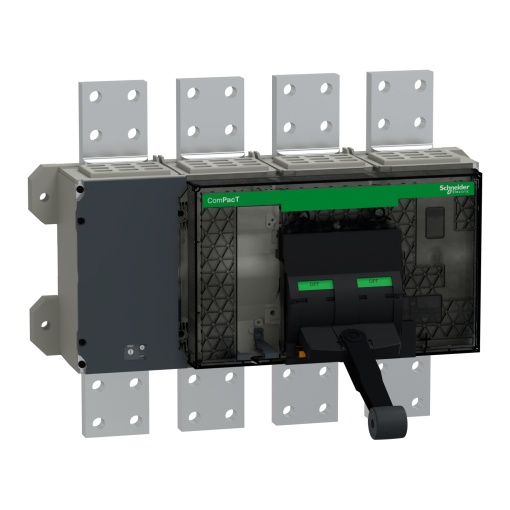

Bloco Corte NS2000NA 4P 2000 Fixo Manual
Cutting and Protection Devices
Bloco Corte NS2000NA 4P 2000 Fixo Manual
Manufacturer Ref:
C200S4FM
Nortécnica Ref:
51C200S4FM
EAN:
3606482179738
Description
Technical Information
Attributes
Width
350
Height
535
Depth
160
Rated operation power at AC-3, 400 V
-
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
2000
Number of poles
4
Rated operating voltage
220
690
Conditioned rated short-circuit current Iq
-
Width in number of modular spacings
-
Degree of protection IP, front side
IP40
Number of auxiliary contacts as change-over contact
0
Number of switches
1
Interlockable
Yes
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Version as emergency stop installation
No
Type of control element
Wing knob
Version as main switch
Yes
Version as safety switch
No
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
-
Rated short-time withstand current lcw
32
Colour control element
Black
EF007243
Yes
Suitable for front mounting 4-hole
Yes
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Max. rated operation voltage Ue AC
690
Motor drive optional
No
Voltage release optional
Yes
Device construction
Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V
-
Switching power at 400 V
-
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
2000
Degree of protection NEMA
-
With pre-assembled cabling
No
Brands
Schneider
Technical Sheet
