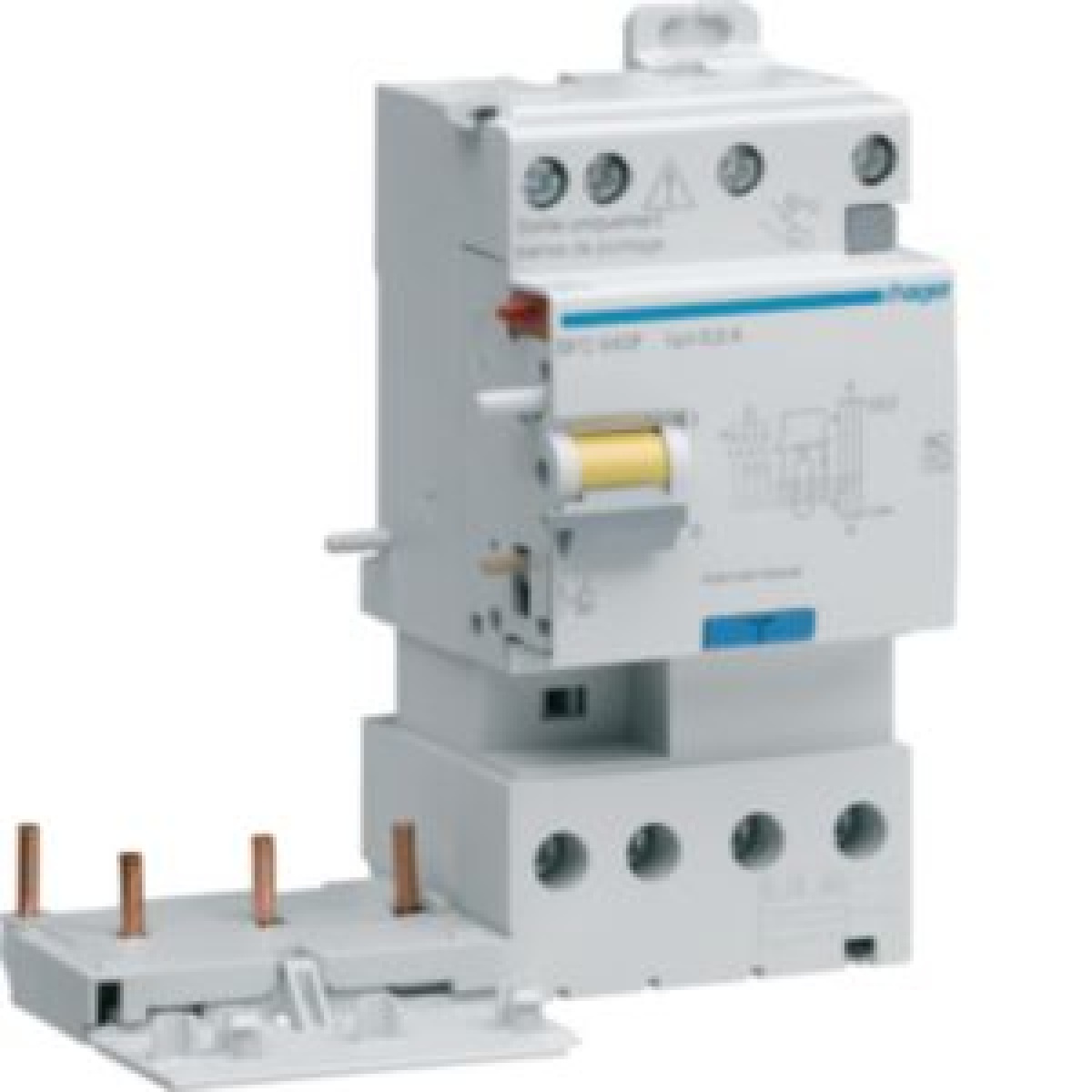

Bloco dif dupla saída 3PN 40A 30mA A HI
Cutting and Protection Devices
Bloco dif dupla saída 3PN 40A 30mA A HI
Manufacturer Ref:
BDH940F
Nortécnica Ref:
71BDH940F
EAN:
3250611310532
Description
Technical Information
Attributes
Nominal current
40
Rated insulation voltage Ui
500
Number of poles
4
Delay adjustable
No
Max. delay time
0
Leakage current type
A
Surge current capacity
3
Pollution degree
2
Rated fault current
0.03
0.03
Nominal voltage
230
400
Power loss
6.6
Frequency
50 Hz
Degree of protection IP
IP20
Connectable conductor cross section solid-core
-
Connectable conductor cross section multi-wired
-
With interlocking device
No
Ambient temperature during operating
-25
40
Rated fault current adjustable
No
Anti-nuisance tripping version
Yes
Rated impulse withstand voltage Uimp
4
Brands
Hager Sistemas Eléctricos Modulares SA
Technical Sheet
