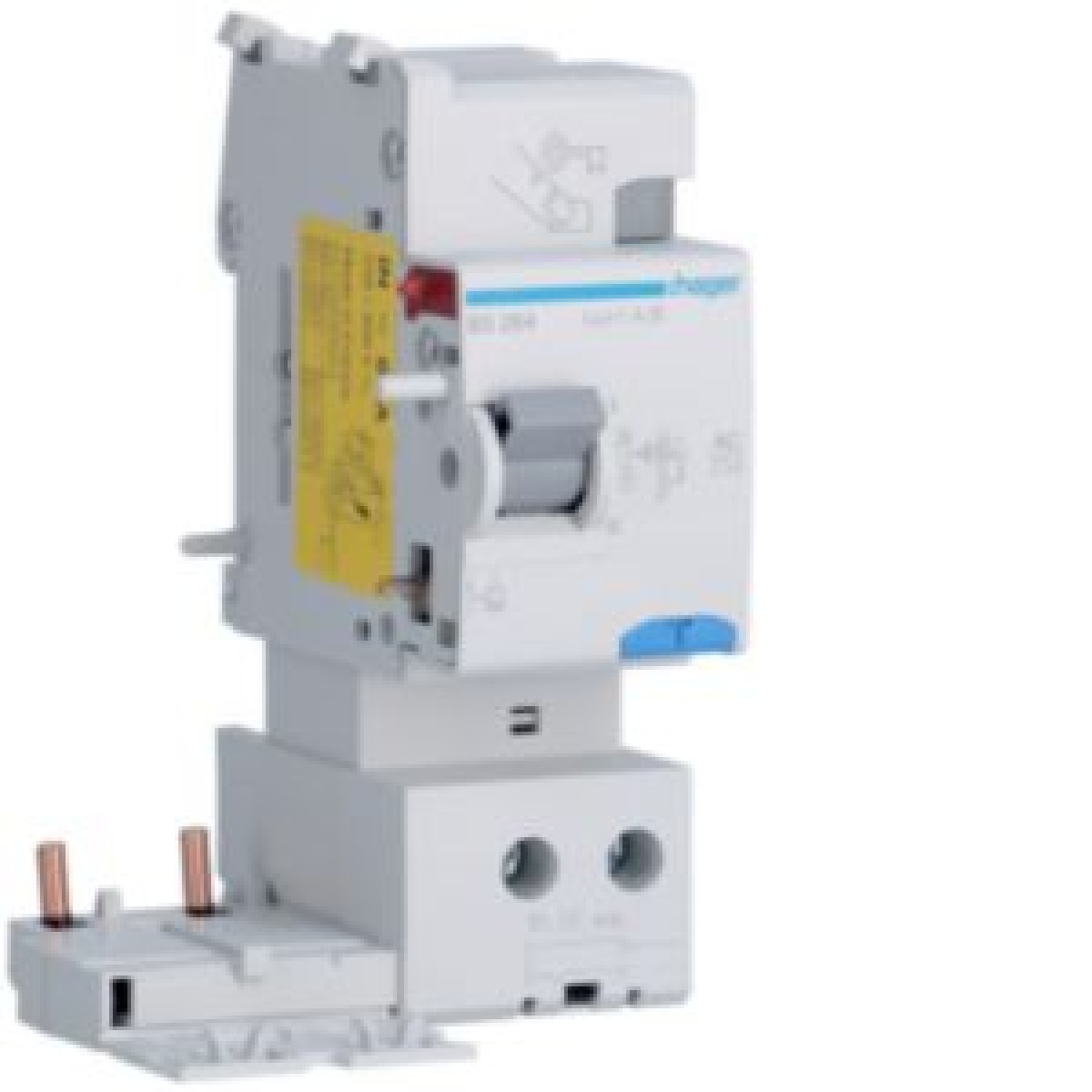

Bloco dif 2P 63A sel 1A tipo AC 2M
Cutting and Protection Devices
Bloco dif 2P 63A sel 1A tipo AC 2M
Manufacturer Ref:
BS264
Nortécnica Ref:
71BS264
EAN:
3250611492641
Description
Technical Information
Attributes
Nominal current
63
Rated insulation voltage Ui
500
Number of poles
2
Delay adjustable
No
Max. delay time
300
Leakage current type
AC
Surge current capacity
-
Pollution degree
-
Rated fault current
1
1
Nominal voltage
230
400
Power loss
4.40
Frequency
50 Hz
Degree of protection IP
IP20
Connectable conductor cross section solid-core
1
25
Connectable conductor cross section multi-wired
1
16
With interlocking device
-
Ambient temperature during operating
-5
40
Rated fault current adjustable
No
Anti-nuisance tripping version
No
Rated impulse withstand voltage Uimp
4
Brands
Hager Sistemas Eléctricos Modulares SA
Technical Sheet
