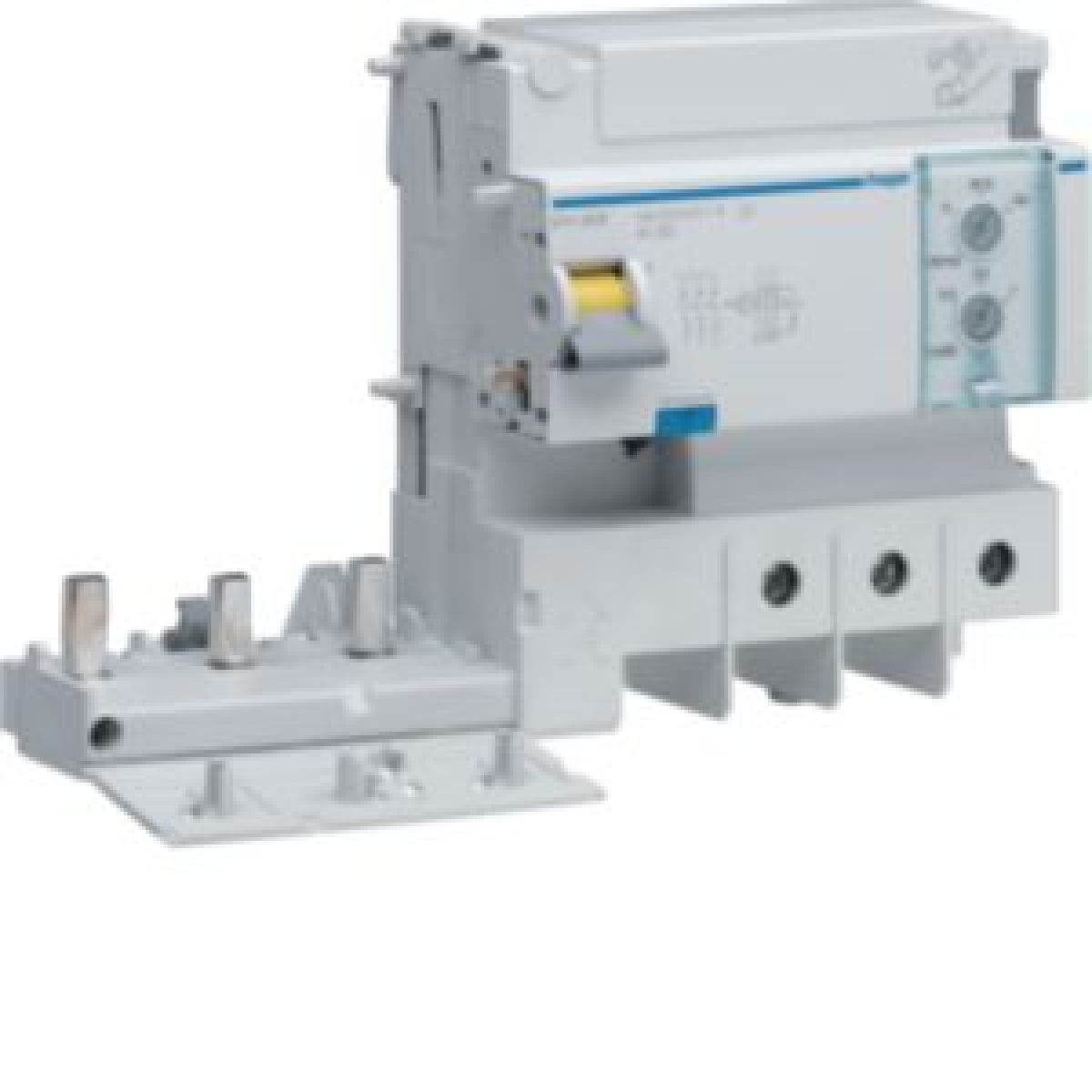

Bloco dif 3P 125A regulável tipo HI 6M
Cutting and Protection Devices
Bloco dif 3P 125A regulável tipo HI 6M
Manufacturer Ref:
BTH380E
Nortécnica Ref:
71BTH380E
EAN:
3250611500070
Description
Technical Information
Attributes
Nominal current
125
Rated insulation voltage Ui
500
Number of poles
3
Delay adjustable
Yes
Max. delay time
150
Leakage current type
A
Surge current capacity
3
Pollution degree
3
Rated fault current
0.3
1
Nominal voltage
415
415
Power loss
11.25
Frequency
50 Hz
Degree of protection IP
IP20
Connectable conductor cross section solid-core
10
70
Connectable conductor cross section multi-wired
10
50
With interlocking device
-
Ambient temperature during operating
-25
60
Rated fault current adjustable
Yes
Anti-nuisance tripping version
Yes
Rated impulse withstand voltage Uimp
6
Brands
Hager Sistemas Eléctricos Modulares SA
Technical Sheet
