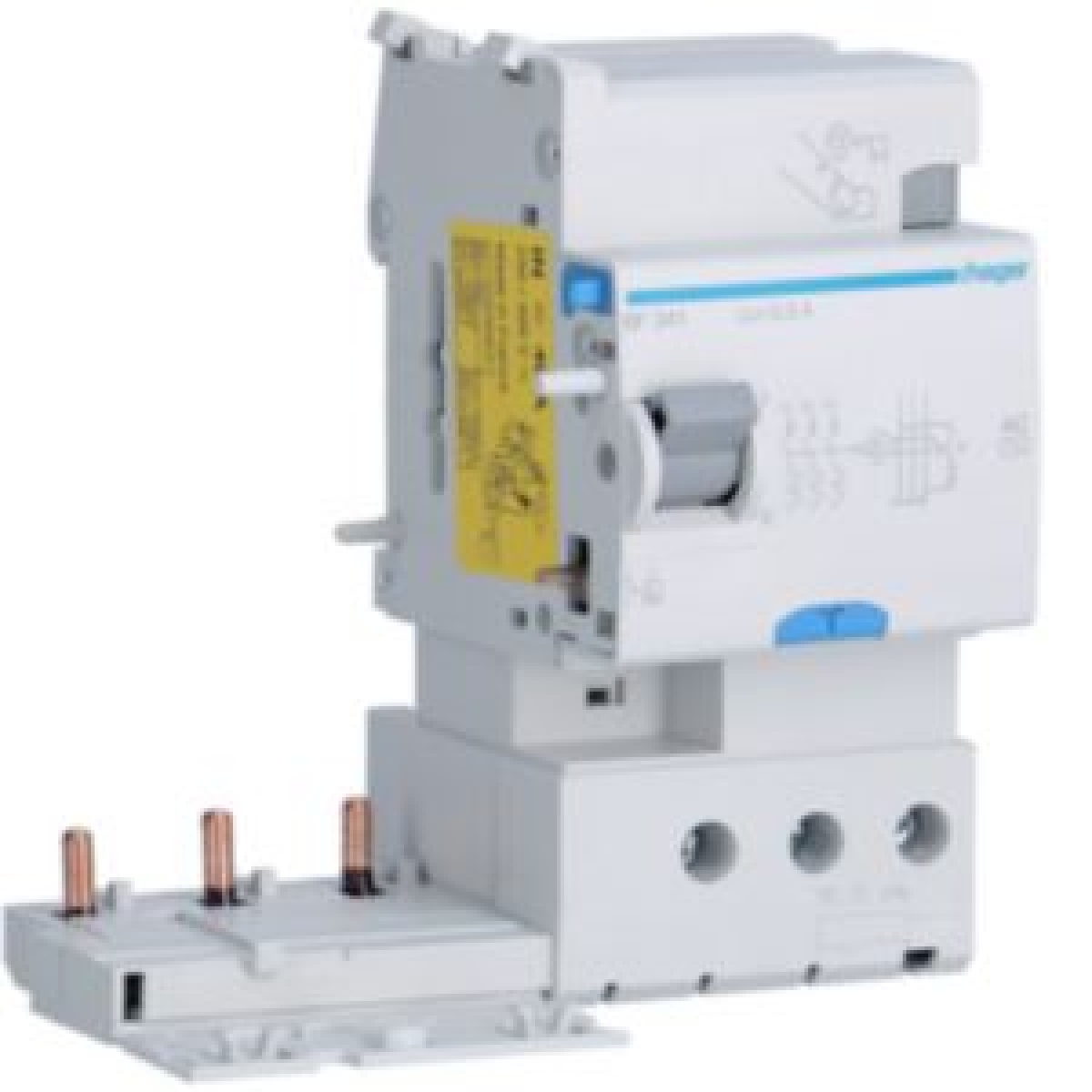

Bloco dif 3P 40A 300mA tipo AC 3M
Cutting and Protection Devices
Bloco dif 3P 40A 300mA tipo AC 3M
Manufacturer Ref:
BF341
Nortécnica Ref:
71BF341
EAN:
3250611363415
Description
Technical Information
Attributes
Nominal current
40
Rated insulation voltage Ui
500
Number of poles
3
Delay adjustable
No
Max. delay time
0
Leakage current type
AC
Surge current capacity
-
Pollution degree
2
Rated fault current
0.3
0.3
Nominal voltage
230
400
Power loss
26
Frequency
50 Hz
Degree of protection IP
IP20
Connectable conductor cross section solid-core
1
25
Connectable conductor cross section multi-wired
1
16
With interlocking device
-
Ambient temperature during operating
-5
40
Rated fault current adjustable
No
Anti-nuisance tripping version
No
Rated impulse withstand voltage Uimp
4
Brands
Hager Sistemas Eléctricos Modulares SA
Technical Sheet
