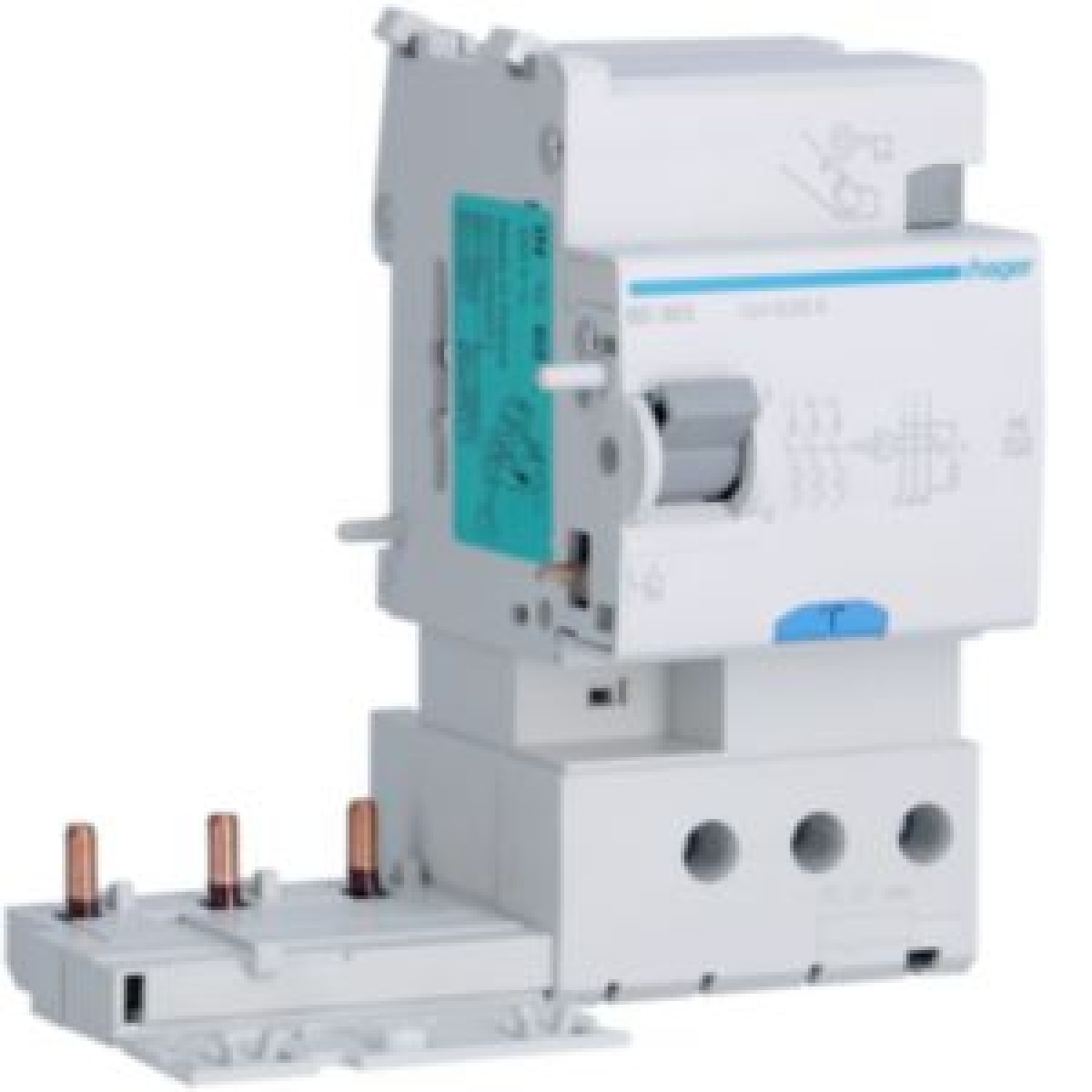

Bloco dif 3P 63A 30mA tipo A HI 3M
Cutting and Protection Devices
Bloco dif 3P 63A 30mA tipo A HI 3M
Manufacturer Ref:
BD363
Nortécnica Ref:
71BD363
EAN:
3250611343639
Description
Technical Information
Attributes
Nominal current
63
Rated insulation voltage Ui
500
Number of poles
3
Delay adjustable
No
Max. delay time
0
Leakage current type
A
Surge current capacity
-
Pollution degree
-
Rated fault current
0.03
0.03
Nominal voltage
400
400
Power loss
5.50
Frequency
50 Hz
Degree of protection IP
IP20
Connectable conductor cross section solid-core
1
25
Connectable conductor cross section multi-wired
1
16
With interlocking device
-
Ambient temperature during operating
-5
40
Rated fault current adjustable
No
Anti-nuisance tripping version
Yes
Rated impulse withstand voltage Uimp
4
Brands
Hager Sistemas Eléctricos Modulares SA
Technical Sheet
