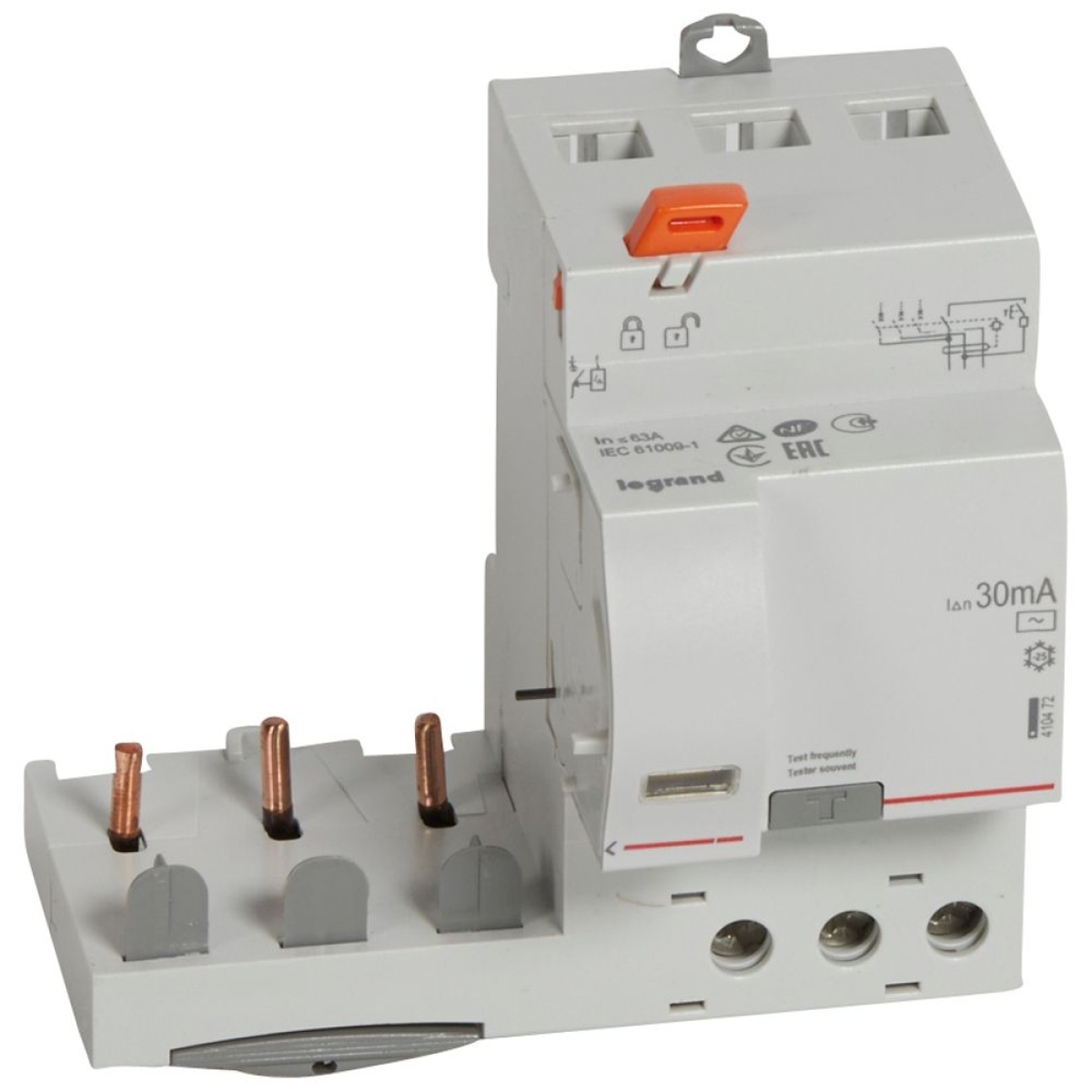

Bloco dif. adaptável DX3 p disj. 1Mpólo 3P - 400 V - 63A - 30mA - tipo AC
Cutting and Protection Devices
Bloco dif. adaptável DX3 p disj. 1Mpólo 3P - 400 V - 63A - 30mA - tipo AC
Manufacturer Ref:
410472
Nortécnica Ref:
EAN:
3245064104722
Description
Technical Information
Attributes
Nominal current
63
Rated insulation voltage Ui
500
Number of poles
3
Delay adjustable
No
Max. delay time
0
Leakage current type
AC
Surge current capacity
-
Pollution degree
2
Rated fault current
0.03
0.03
Nominal voltage
250
440
Power loss
-
Frequency
50 Hz
Degree of protection IP
IP20
Connectable conductor cross section solid-core
1.5
35
Connectable conductor cross section multi-wired
1.5
25
With interlocking device
Yes
Ambient temperature during operating
-25
70
Rated fault current adjustable
No
Anti-nuisance tripping version
No
Rated impulse withstand voltage Uimp
4
Brands
Legrand
