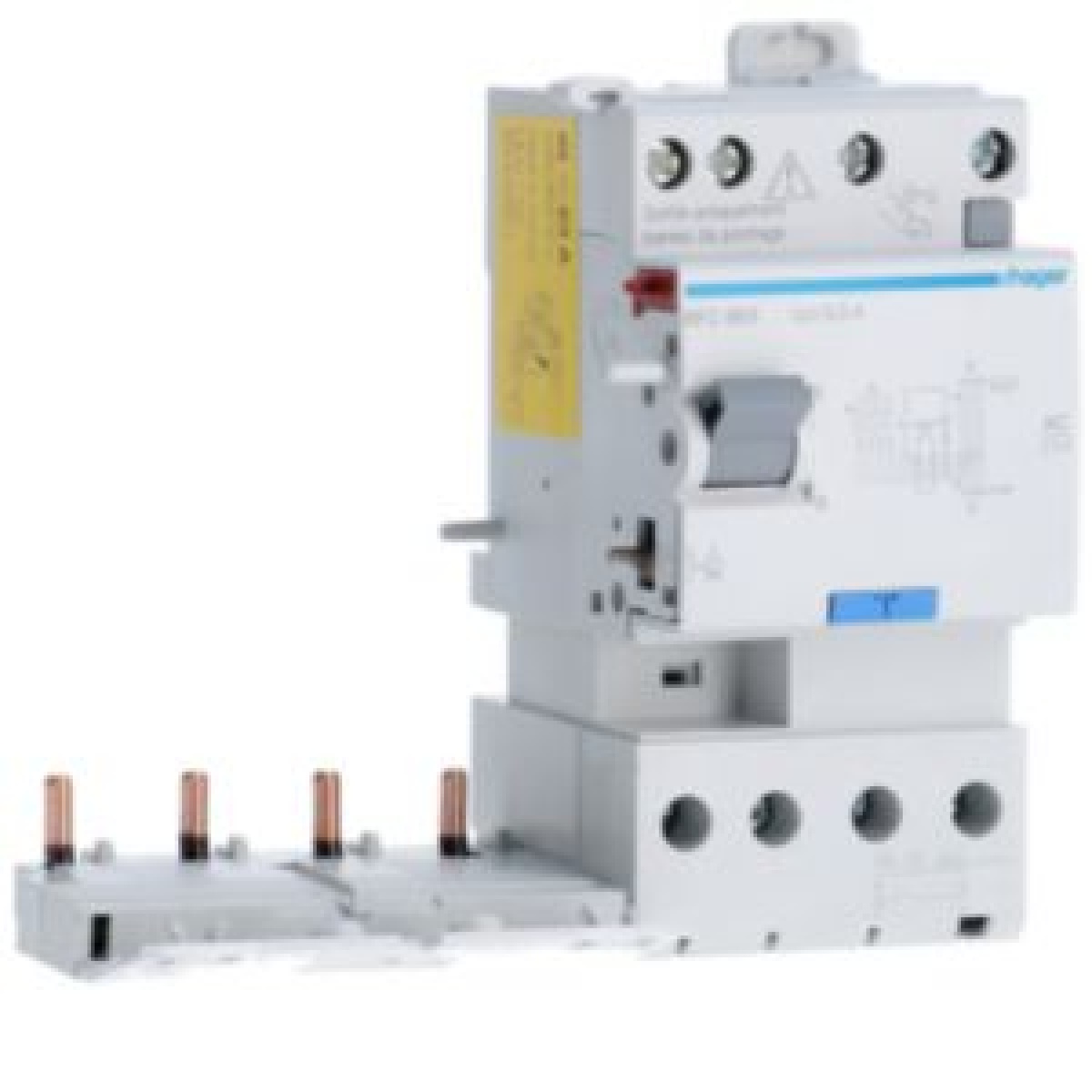

Bloco dif dupla saída 4P 63A 300mA AC
Cutting and Protection Devices
Bloco dif dupla saída 4P 63A 300mA AC
Manufacturer Ref:
BFC863
Nortécnica Ref:
71BFC863
EAN:
3250611310099
Description
Technical Information
Attributes
Nominal current
63
Rated insulation voltage Ui
500
Number of poles
4
Delay adjustable
No
Max. delay time
0
Leakage current type
AC
Surge current capacity
3
Pollution degree
2
Rated fault current
0.3
0.3
Nominal voltage
230
400
Power loss
11.2
Frequency
50 Hz
Degree of protection IP
IP20
Connectable conductor cross section solid-core
1.5
25
Connectable conductor cross section multi-wired
1.5
16
With interlocking device
No
Ambient temperature during operating
-25
40
Rated fault current adjustable
No
Anti-nuisance tripping version
No
Rated impulse withstand voltage Uimp
4
Brands
Hager Sistemas Eléctricos Modulares SA
Technical Sheet
