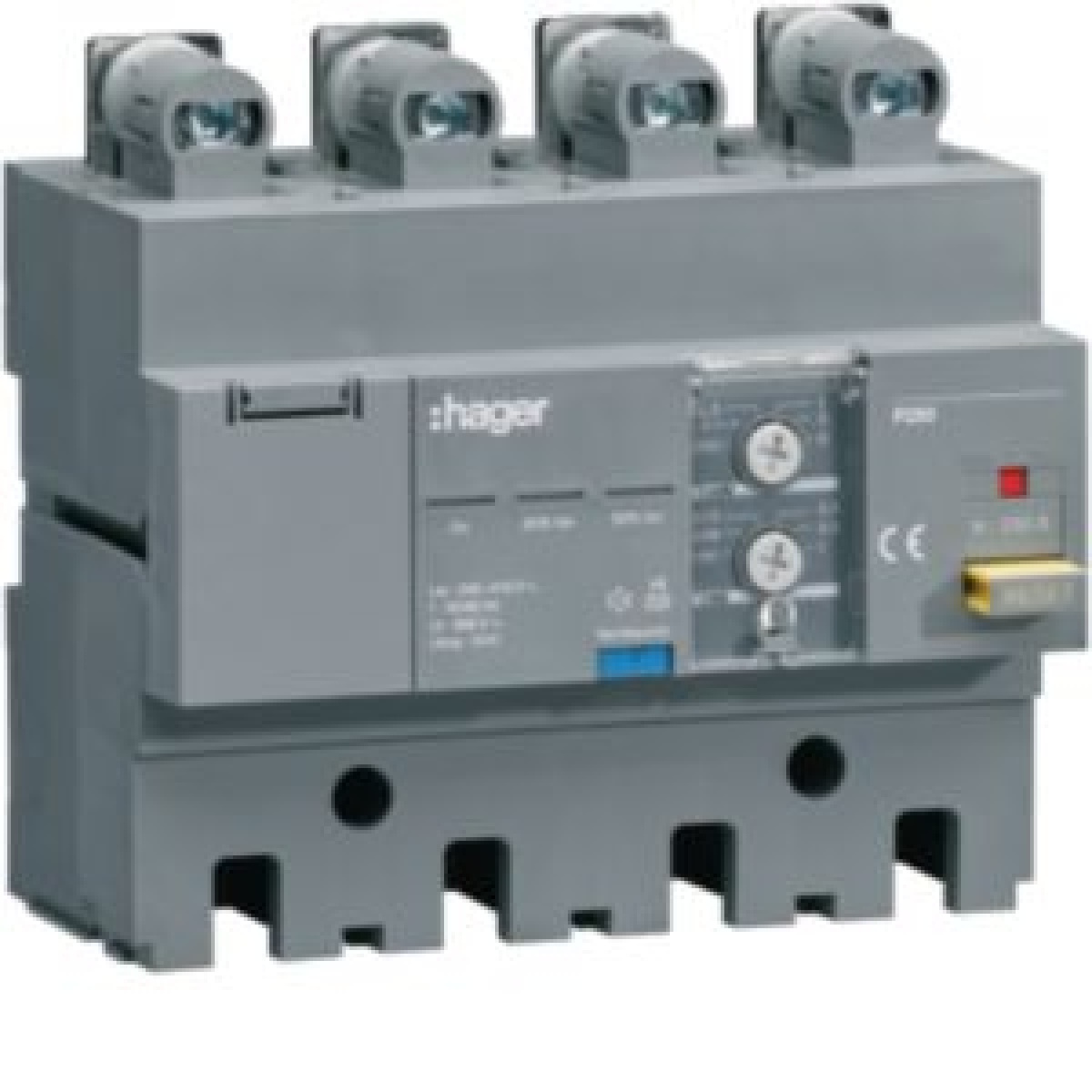

Bloco P250 4P 250A reg 0036A
Cutting and Protection Devices
Bloco P250 4P 250A reg 0036A
Manufacturer Ref:
HBT250H
Nortécnica Ref:
71HBT250H
EAN:
3250613150860
Description
Technical Information
Attributes
Nominal current
250
Rated insulation voltage Ui
500
Number of poles
4
Delay adjustable
Yes
Max. delay time
1000
Leakage current type
A
Surge current capacity
3
Pollution degree
3
Rated fault current
0.03
6
Nominal voltage
220
415
Power loss
12.75
Frequency
5060 Hz
Degree of protection IP
IP40
Connectable conductor cross section solid-core
35
185
Connectable conductor cross section multi-wired
35
150
With interlocking device
Yes
Ambient temperature during operating
-25
70
Rated fault current adjustable
Yes
Anti-nuisance tripping version
Yes
Rated impulse withstand voltage Uimp
6
Brands
Hager Sistemas Eléctricos Modulares SA
