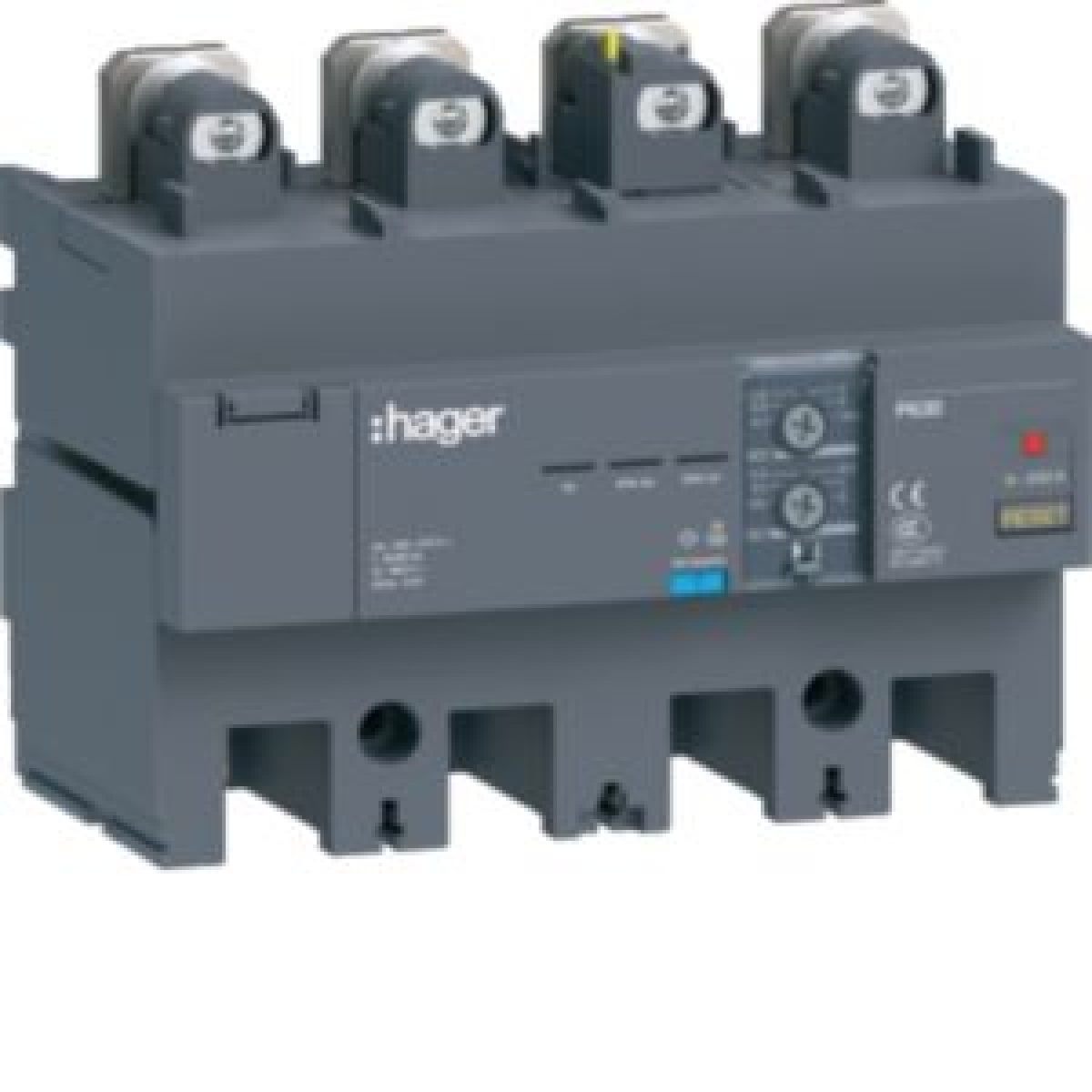

Bloco P630 4P 630A reg 0110A
Cutting and Protection Devices
Bloco P630 4P 630A reg 0110A
Manufacturer Ref:
HBW630H
Nortécnica Ref:
71HBW630H
EAN:
3250613150969
Description
Technical Information
Attributes
Nominal current
630
Rated insulation voltage Ui
500
Number of poles
4
Delay adjustable
Yes
Max. delay time
3000
Leakage current type
A
Surge current capacity
3
Pollution degree
3
Rated fault current
0.1
10
Nominal voltage
220
415
Power loss
34.3
Frequency
5060 Hz
Degree of protection IP
IP40
Connectable conductor cross section solid-core
-
Connectable conductor cross section multi-wired
-
With interlocking device
Yes
Ambient temperature during operating
-25
70
Rated fault current adjustable
Yes
Anti-nuisance tripping version
Yes
Rated impulse withstand voltage Uimp
6
Brands
Hager Sistemas Eléctricos Modulares SA
Technical Sheet
