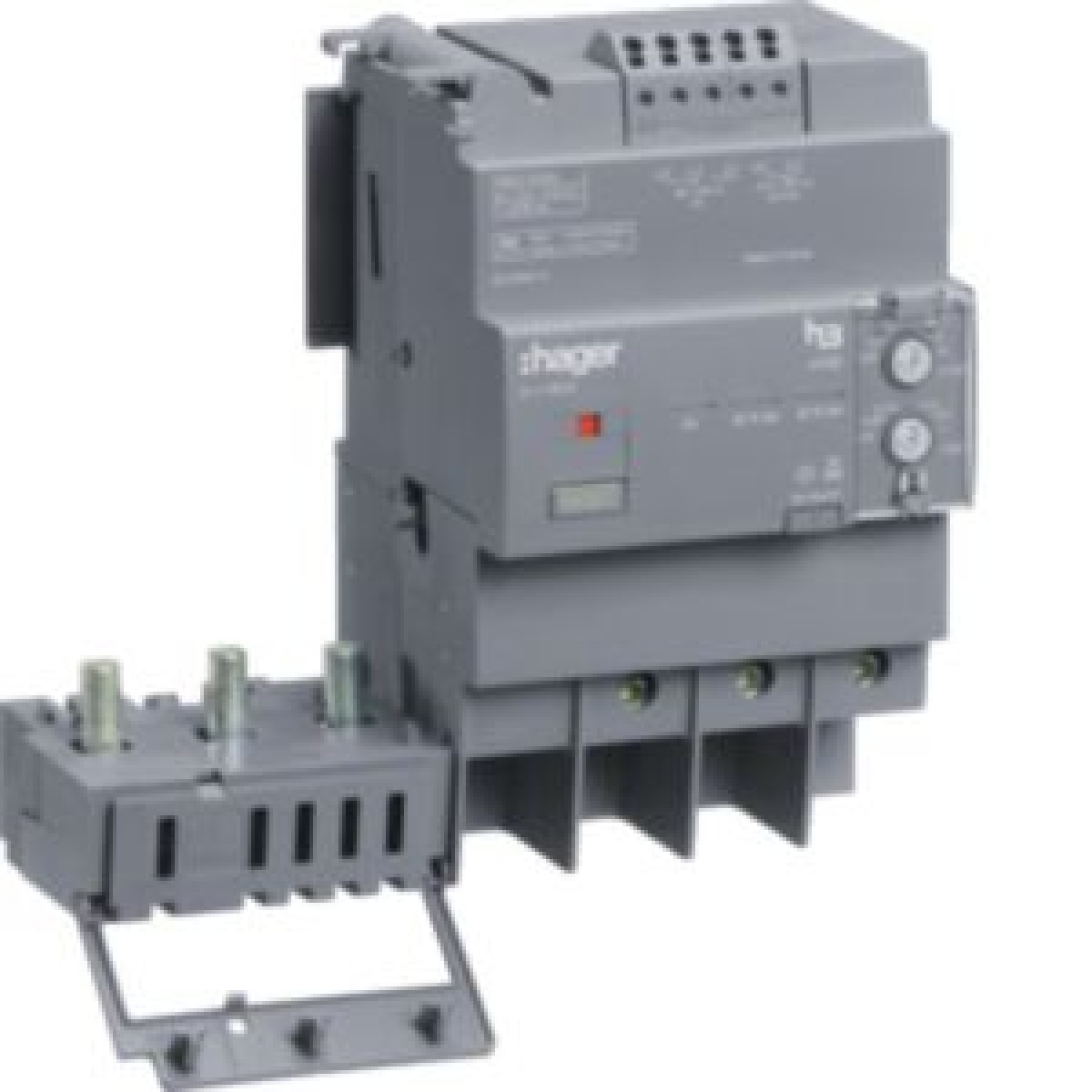

Bloco x160 3P 160A reg 0036A
Cutting and Protection Devices
Bloco x160 3P 160A reg 0036A
Manufacturer Ref:
HBA160H
Nortécnica Ref:
71HBA160H
EAN:
3250613121068
Description
Technical Information
Attributes
Nominal current
160
Rated insulation voltage Ui
500
Number of poles
3
Delay adjustable
Yes
Max. delay time
1000
Leakage current type
Other
Surge current capacity
5
Pollution degree
3
Rated fault current
0.03
6
Nominal voltage
220
415
Power loss
22
Frequency
5060 Hz
Degree of protection IP
IP40
Connectable conductor cross section solid-core
2.5
95
Connectable conductor cross section multi-wired
2.5
70
With interlocking device
Yes
Ambient temperature during operating
-25
70
Rated fault current adjustable
Yes
Anti-nuisance tripping version
Yes
Rated impulse withstand voltage Uimp
6
Brands
Hager Sistemas Eléctricos Modulares SA
