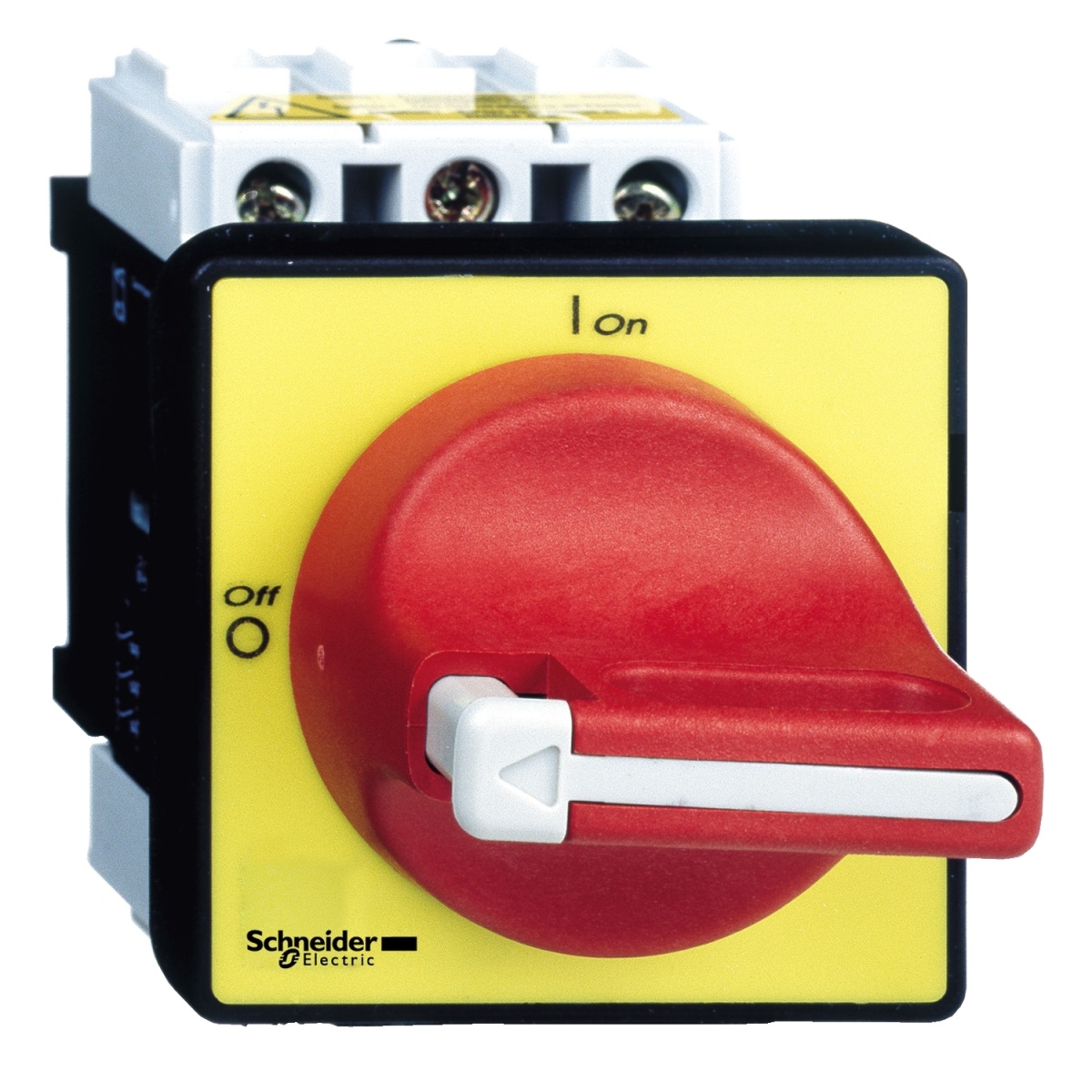

CHAVE SECCIONADORA TESYS VARIO VCD2, 3P 40A VCD2
Cutting and Protection Devices
CHAVE SECCIONADORA TESYS VARIO VCD2, 3P 40A VCD2
Manufacturer Ref:
VCD2
Nortécnica Ref:
52VCD2
EAN:
3389110724899
Description
Technical Information
Attributes
Width
60
Height
74
Depth
121
Rated operation power at AC-3, 400 V
11
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
40
Number of poles
3
Rated operating voltage
690
690
Conditioned rated short-circuit current Iq
10
Width in number of modular spacings
-
Degree of protection IP, front side
IP65
Number of auxiliary contacts as change-over contact
0
Number of switches
1
Interlockable
Yes
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Version as emergency stop installation
Yes
Type of control element
Short rotary handle
Version as main switch
Yes
Version as safety switch
No
Version as maintenance-service switch
No
Rated operation power at AC-23, 400 V
15
Rated short-time withstand current lcw
0.48
Colour control element
Red
EF007243
No
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
Yes
Suitable for distribution board installation
No
Suitable for intermediate mounting
No
Max. rated operation voltage Ue AC
690
Motor drive optional
No
Voltage release optional
No
Device construction
Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V
40
Switching power at 400 V
-
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
29
Degree of protection NEMA
-
With pre-assembled cabling
No
Brands
Schneider
Technical Sheet
