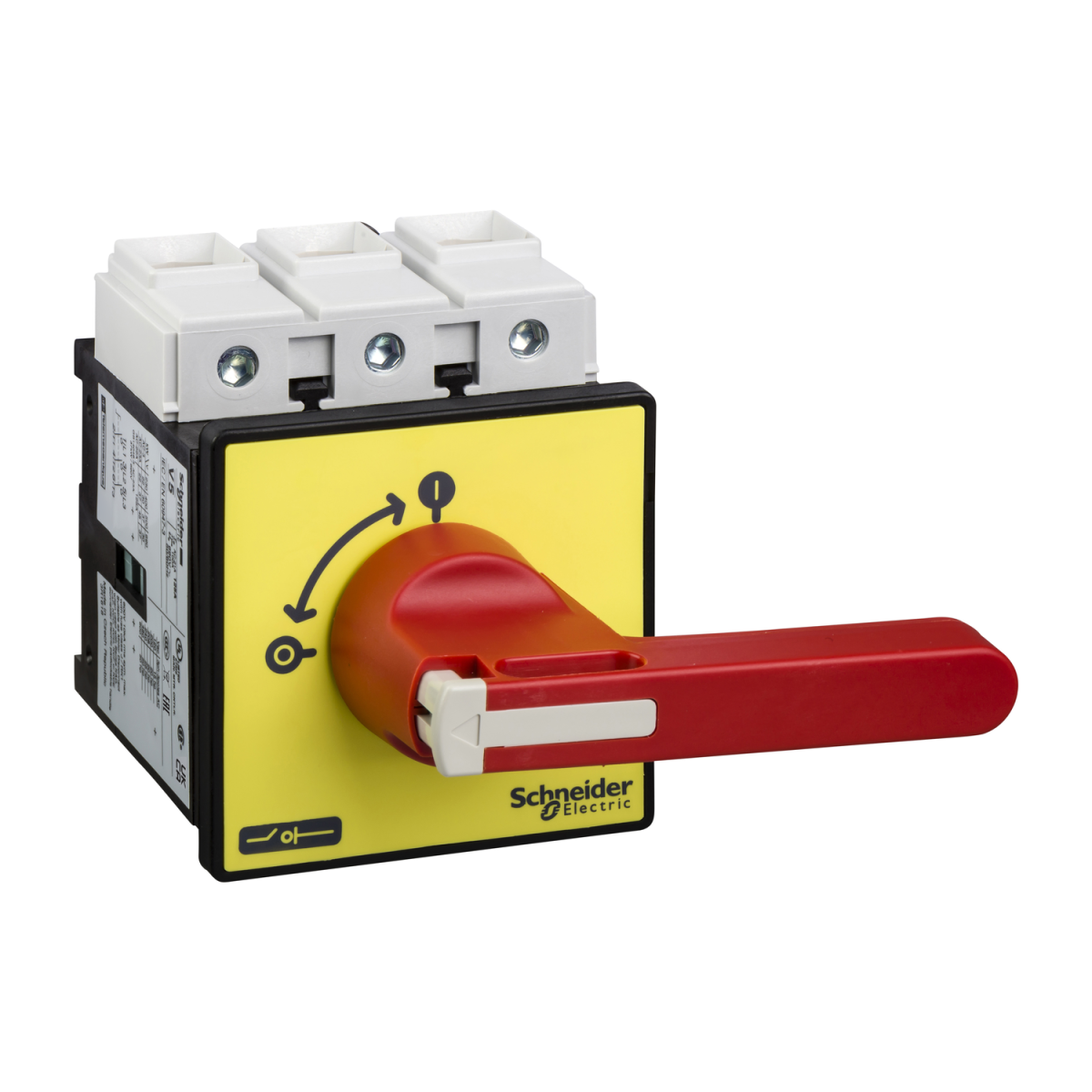

CHAVE SECCIONADORA VARIO 175A MANOPLA VERMELHAAMARELA VCF6
Cutting and Protection Devices
CHAVE SECCIONADORA VARIO 175A MANOPLA VERMELHAAMARELA VCF6
Manufacturer Ref:
VCF6
Nortécnica Ref:
EAN:
3389110804645
Description
Technical Information
Attributes
Width
90
Height
125
Depth
160
Rated operation power at AC-3, 400 V
37
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
175
Number of poles
3
Rated operating voltage
690
690
Conditioned rated short-circuit current Iq
10
Width in number of modular spacings
-
Degree of protection IP, front side
IP65
Number of auxiliary contacts as change-over contact
0
Number of switches
1
Interlockable
Yes
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Version as emergency stop installation
Yes
Type of control element
Turn button
Version as main switch
Yes
Version as safety switch
No
Version as maintenance-service switch
No
Rated operation power at AC-23, 400 V
45
Rated short-time withstand current lcw
2.1
Colour control element
Red
EF007243
No
Suitable for front mounting 4-hole
Yes
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Max. rated operation voltage Ue AC
690
Motor drive optional
No
Voltage release optional
No
Device construction
Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V
160
Switching power at 400 V
90
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
21.8
Degree of protection NEMA
-
With pre-assembled cabling
No
Brands
Schneider
