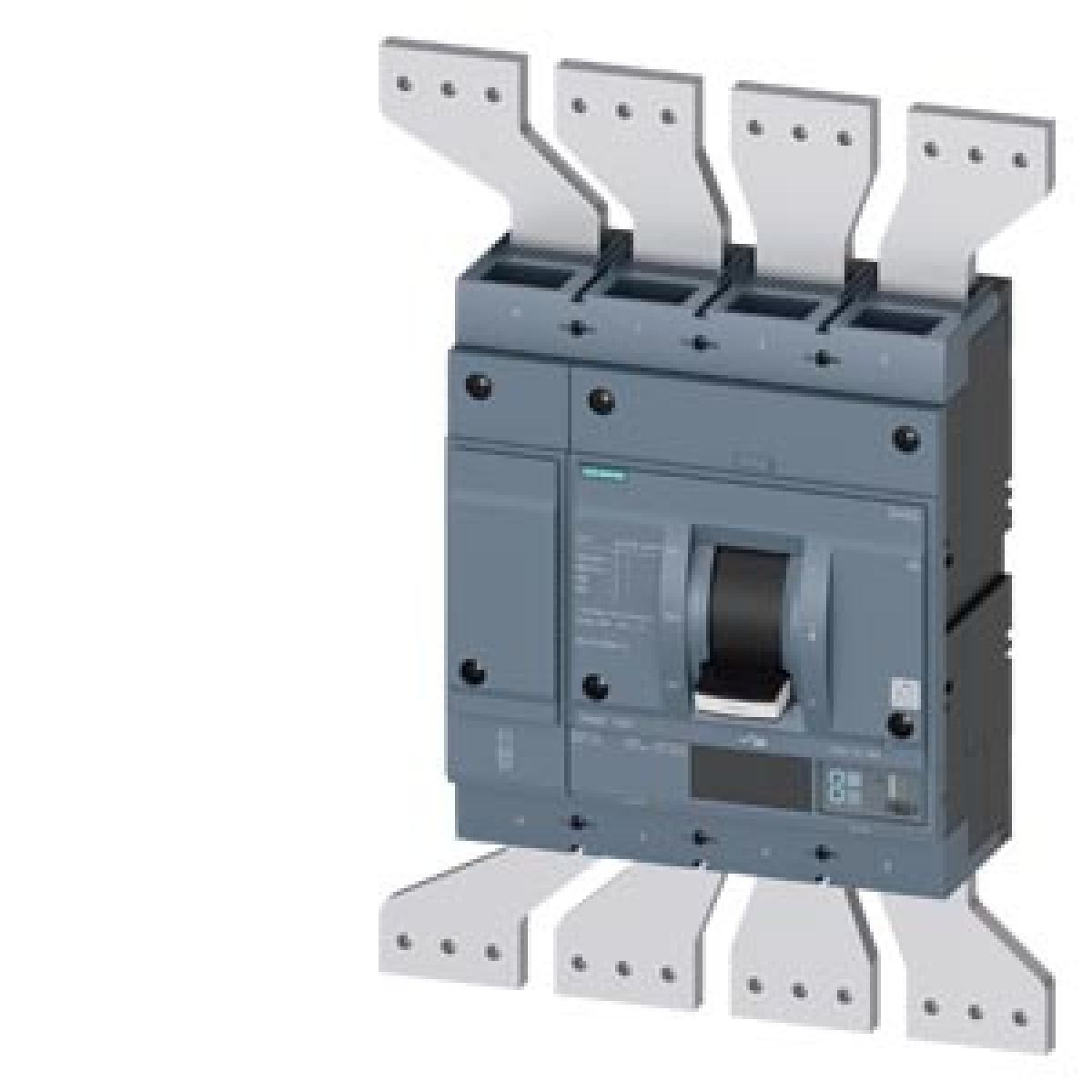

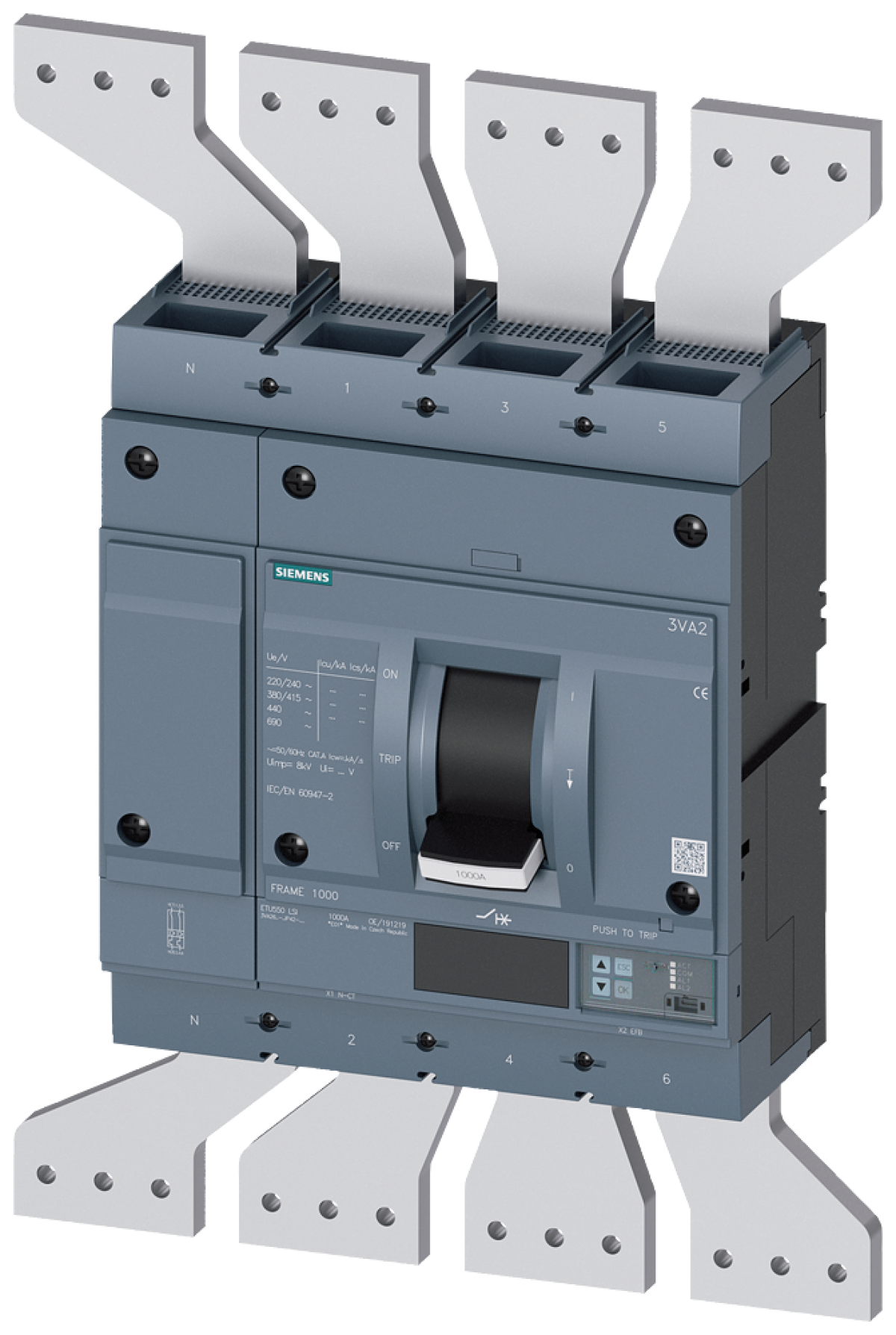

circuit breaker 3VA2 IEC frame 1250 breaking capacity class C Icu110kA 41
Cutting and Protection Devices
circuit breaker 3VA2 IEC frame 1250 breaking capacity class C Icu110kA 41
Manufacturer Ref:
3VA26127JP420AA0
Nortécnica Ref:
EAN:
4042949435822
Description
Technical Information
Attributes
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
1250
With integrated under voltage release
No
Number of poles
4
Overload release current setting
500
Number of auxiliary contacts as change-over contact
0
Rated voltage
690
Degree of protection IP
IP40
Position of connection for main current circuit
-
Motor drive integrated
No
Type of electrical connection of main circuit
-
Type of control element
Rocker lever
With switched-off indicator
No
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
110
Adjustment range short-term delayed short-circuit release
750
Adjustment range undelayed short-circuit release
1875
Suitable for DIN rail top hat rail mounting
No
Integrated earth fault protection
No
Motor drive optional
No
Device construction
Builtin device fixed builtin technique
DIN rail top hat rail mounting optional
No
Complete device with protection unit
Yes
Brands
Siemens AG
