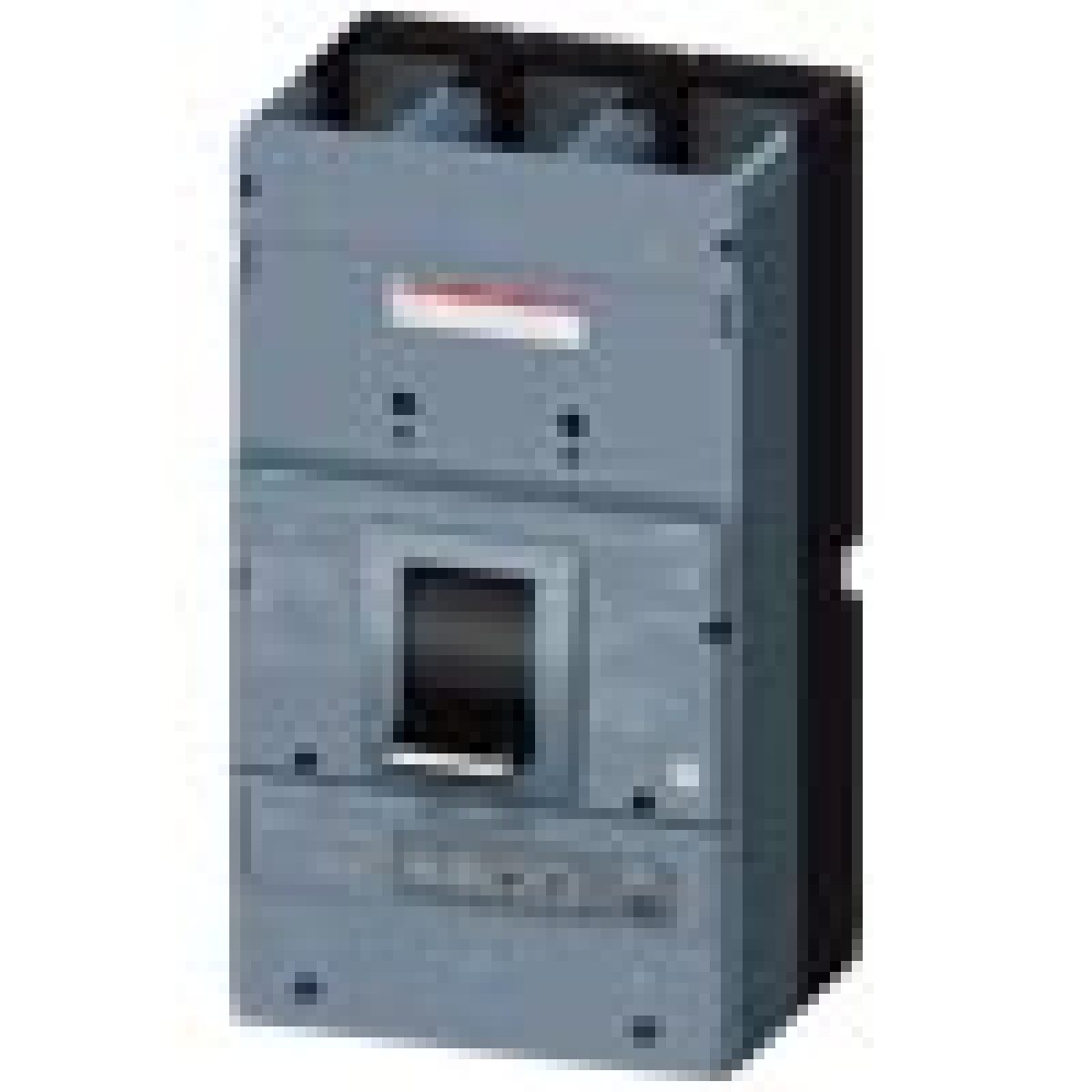

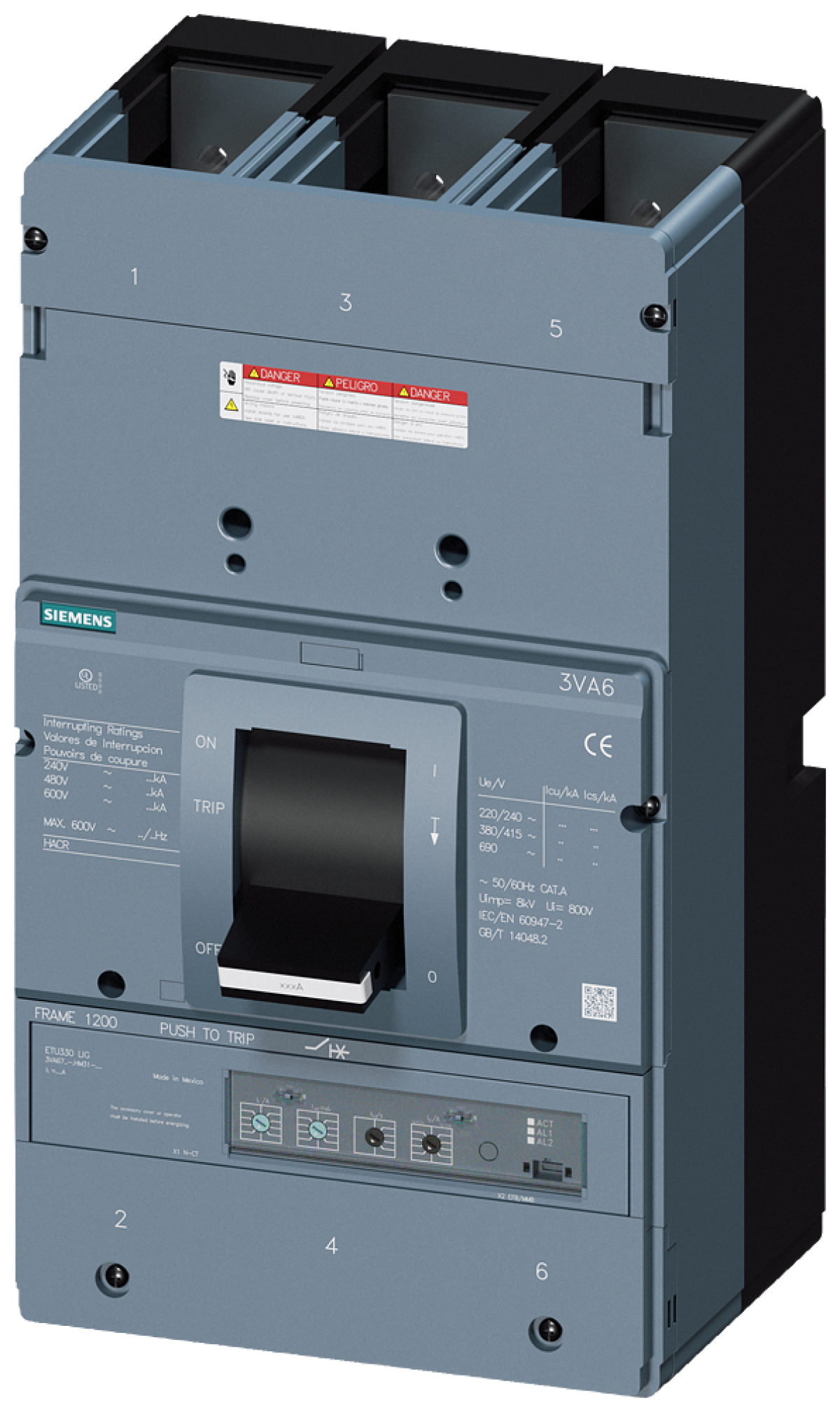

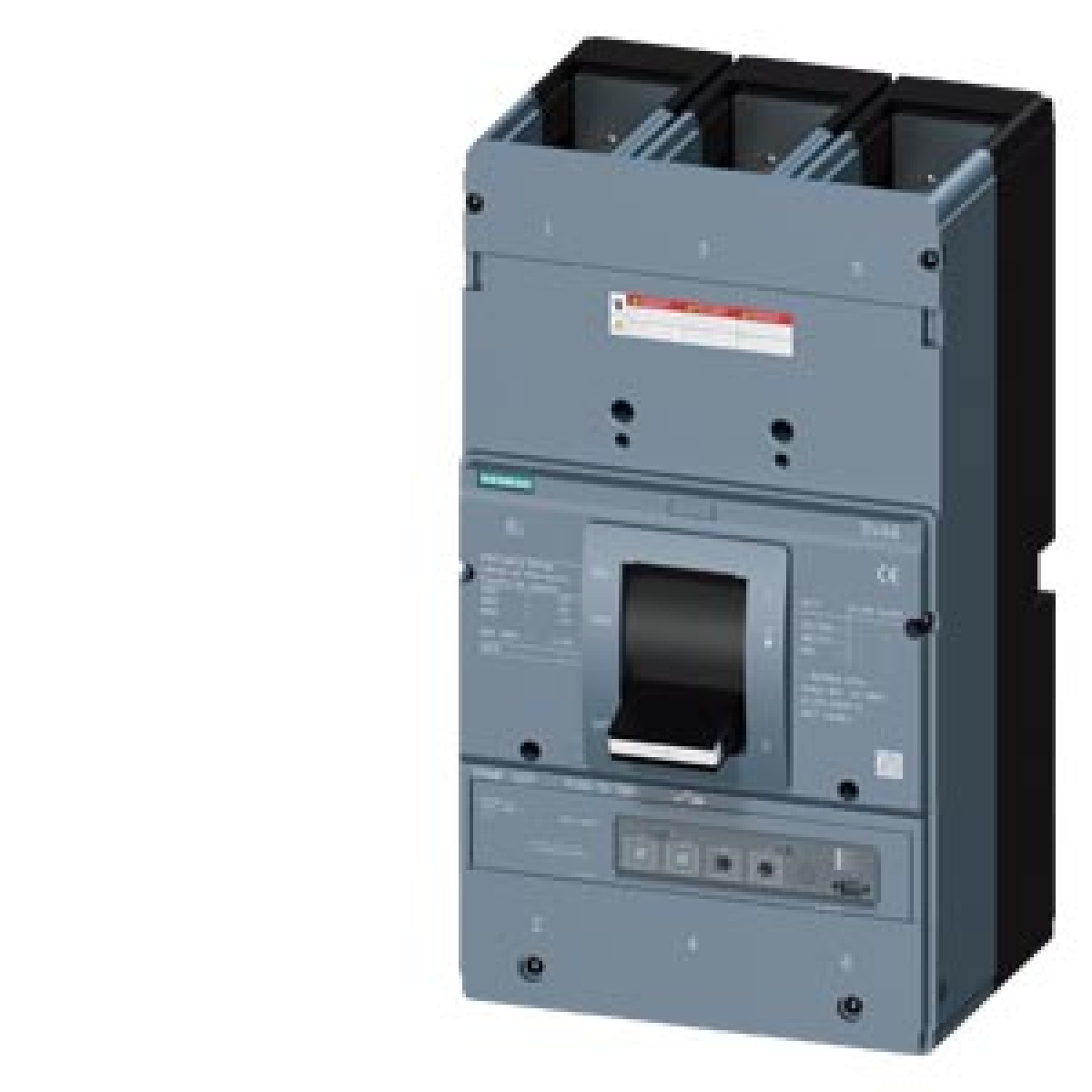

circuit breaker 3VA6 UL frame 1200 breaking capacity class M 35kA 480 V 3
Cutting and Protection Devices
circuit breaker 3VA6 UL frame 1200 breaking capacity class M 35kA 480 V 3
Manufacturer Ref:
3VA67805HM310AA0
Nortécnica Ref:
EAN:
4001869603117
Description
Technical Information
Attributes
Number of auxiliary contacts as normally open contact
-
Number of auxiliary contacts as normally closed contact
-
Rated permanent current Iu
800
With integrated under voltage release
No
Number of poles
3
Overload release current setting
315
Number of auxiliary contacts as change-over contact
0
Rated voltage
600
Degree of protection IP
IP40
Position of connection for main current circuit
-
Motor drive integrated
No
Type of electrical connection of main circuit
-
Type of control element
Rocker lever
With switched-off indicator
No
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
50
Adjustment range short-term delayed short-circuit release
-
Adjustment range undelayed short-circuit release
1200
Suitable for DIN rail top hat rail mounting
No
Integrated earth fault protection
Yes
Motor drive optional
-
Device construction
Builtin device fixed builtin technique
DIN rail top hat rail mounting optional
No
Complete device with protection unit
Yes
Brands
Siemens AG
Technical Sheet
