Cutting and Protection Devices

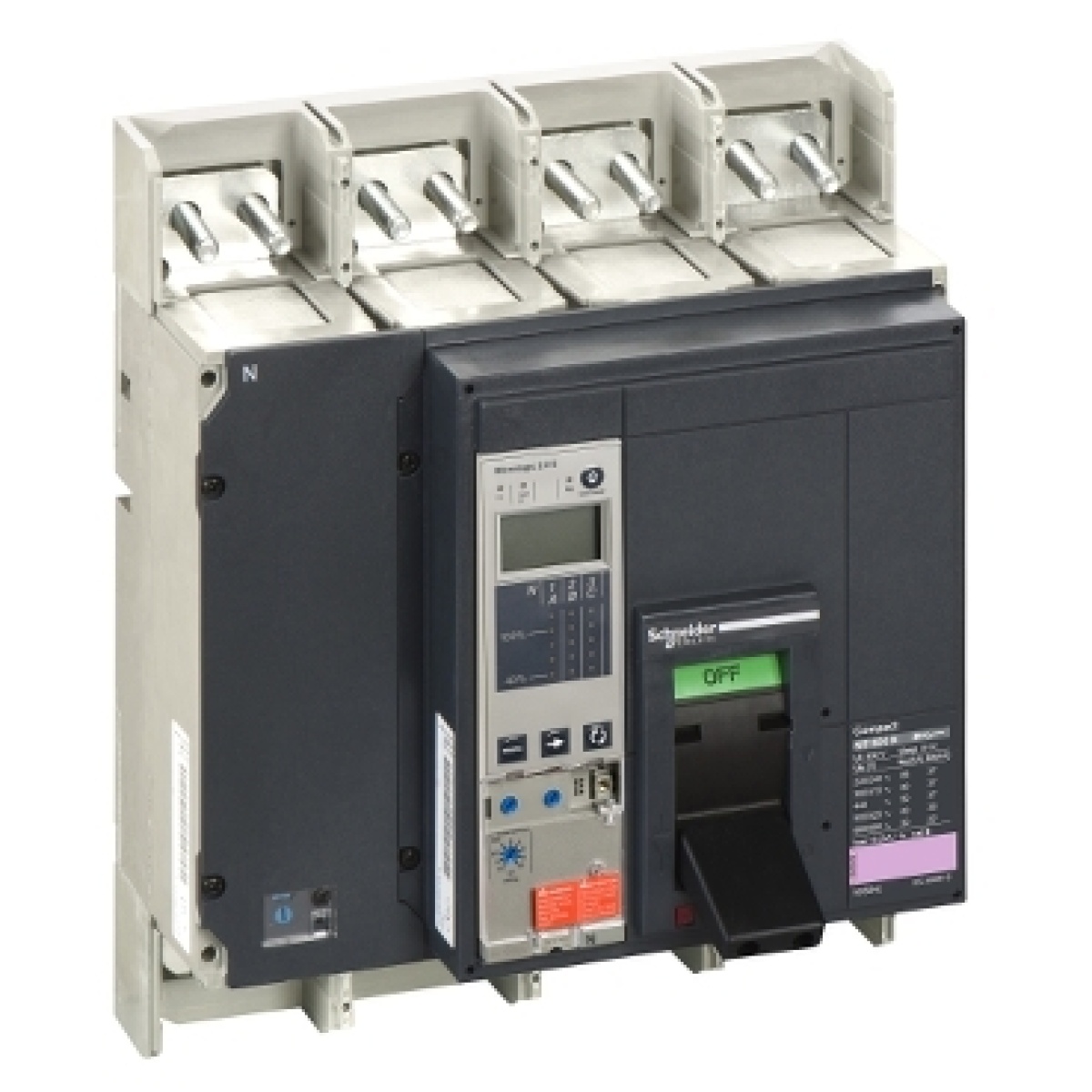

circuit breaker Compact NS1600N - Micrologic 2.0 E - 1600 A - 4 poles 4t

Manufacturer Ref: 34418
Nortécnica Ref: 51034418
EAN: 3606480344992
Description

circuit breaker Compact NS1600N - Micrologic 2.0 E - 1600 A - 4 poles 4t

Technical Information
Attributes
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
1600
With integrated under voltage release
No
Number of poles
4
Overload release current setting
640
1600
Number of auxiliary contacts as change-over contact
0
Rated voltage
690
690
Power loss
296
Degree of protection IP
IP40
Position of connection for main current circuit
Front side
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Type of control element
Wing knob
With switched-off indicator
Yes
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
50
Adjustment range short-term delayed short-circuit release
-
-
Adjustment range undelayed short-circuit release
2400
16000
Suitable for DIN rail top hat rail mounting
No
Integrated earth fault protection
No
Motor drive optional
Yes
Device construction
Built-in device fixed built-in technique
DIN rail top hat rail mounting optional
No
Complete device with protection unit
Yes
Brands
Schneider
