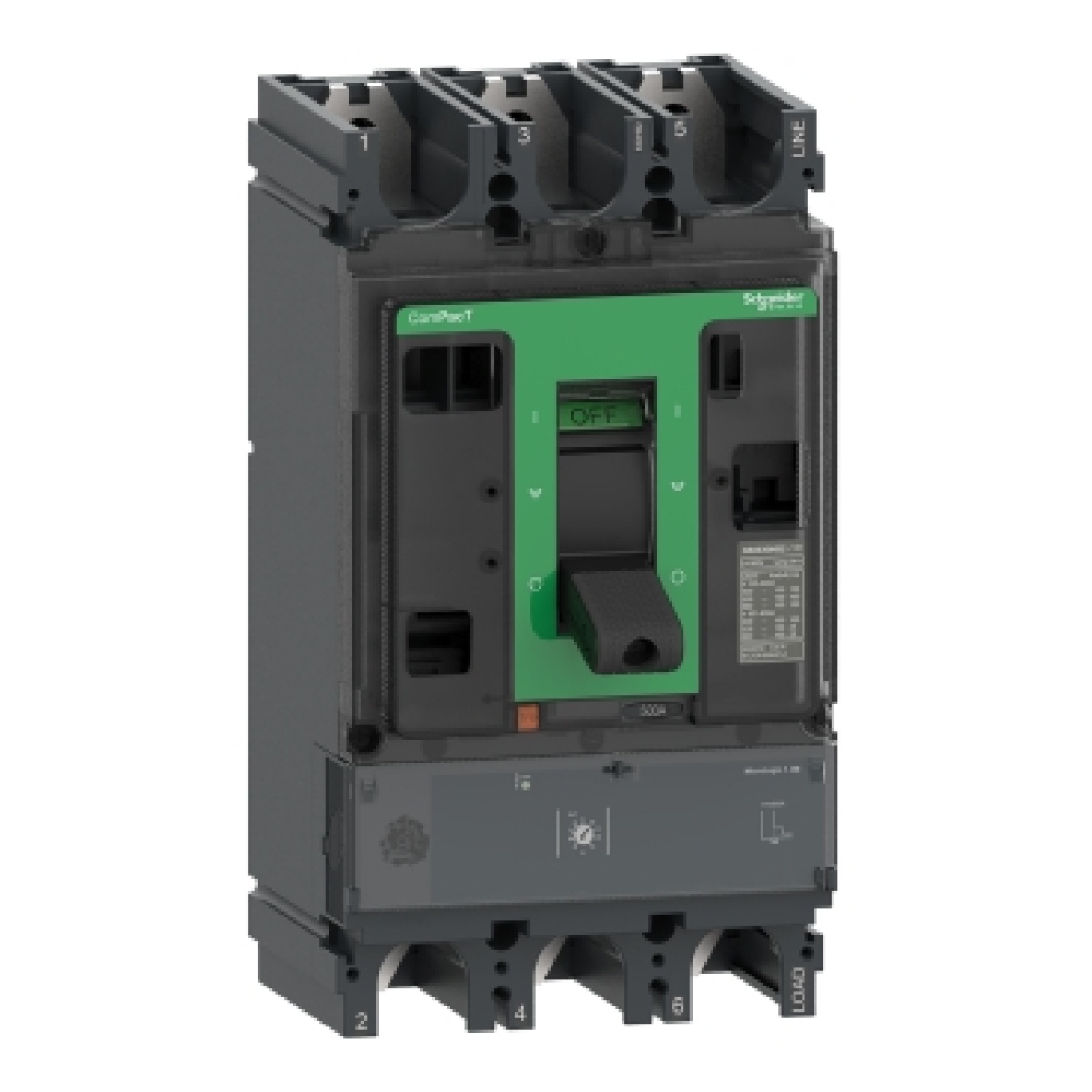

Circuit breaker ComPacT NSX400F, 36kA at 415VAC, MicroLogic 1.3 M trip unit 320A, 3 poles 3d
Cutting and Protection Devices
Circuit breaker ComPacT NSX400F, 36kA at 415VAC, MicroLogic 1.3 M trip unit 320A, 3 poles 3d
Manufacturer Ref:
C40F31M320
Nortécnica Ref:
EAN:
3606482002609
Description
Technical Information
Attributes
Largura
140
Altura
255
Profundidade
110
Rated operation power at AC-3, 400 V
-
With integrated auxiliary switch
No
Rated permanent current Iu
320
With integrated under voltage release
No
Número de polos
3
Rated operating voltage
690
690
Overload release current setting
-
-
Potência dissipada
36.87
Degree of protection IP
IP40
With thermal overload protection
No
Type of electrical connection of main circuit
Screw connection
Type of control element
Other
Switch off technique
Electronic
Rated operation power at AC-3, 230 V
-
Rated short-circuit breaking capacity Icu at 400 V, AC
36
Adjustment range undelayed short-circuit release
4800
4800
Phase failure sensitive
No
Device construction
Built-in device fixed built-in technique
Brands
Schneider
Technical Sheet
