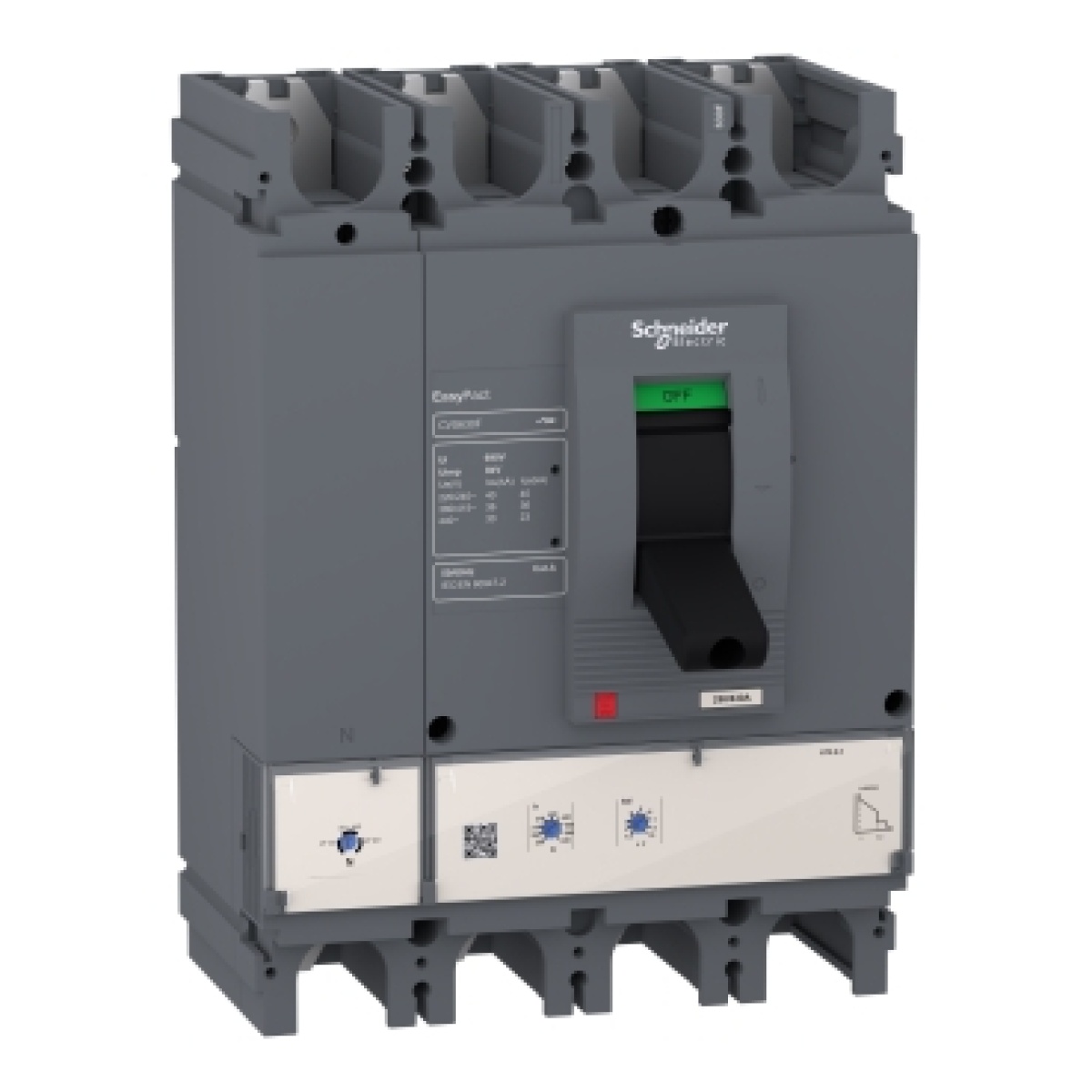

circuit breaker EasyPact CVS630F, 36 kA at 415 VAC, 630 A rating ETS 2.3 electronic trip unit, 4P 3d
Cutting and Protection Devices
circuit breaker EasyPact CVS630F, 36 kA at 415 VAC, 630 A rating ETS 2.3 electronic trip unit, 4P 3d
Manufacturer Ref:
LV563506
Nortécnica Ref:
51LV563506
EAN:
3606480258886
Description
Technical Information
Attributes
Number of auxiliary contacts as normally open contact
-
Number of auxiliary contacts as normally closed contact
-
Rated permanent current Iu
630
With integrated under voltage release
No
Number of poles
4
Overload release current setting
315
630
Number of auxiliary contacts as change-over contact
0
Rated voltage
440
440
Power loss
53.8
Degree of protection IP
IP40
Position of connection for main current circuit
Front side
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Type of control element
Wing knob
With switched-off indicator
Yes
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
36
Adjustment range short-term delayed short-circuit release
-
-
Adjustment range undelayed short-circuit release
0
6930
Suitable for DIN rail top hat rail mounting
No
Integrated earth fault protection
No
Motor drive optional
No
Device construction
Built-in device fixed built-in technique
DIN rail top hat rail mounting optional
No
Complete device with protection unit
Yes
Brands
Schneider
