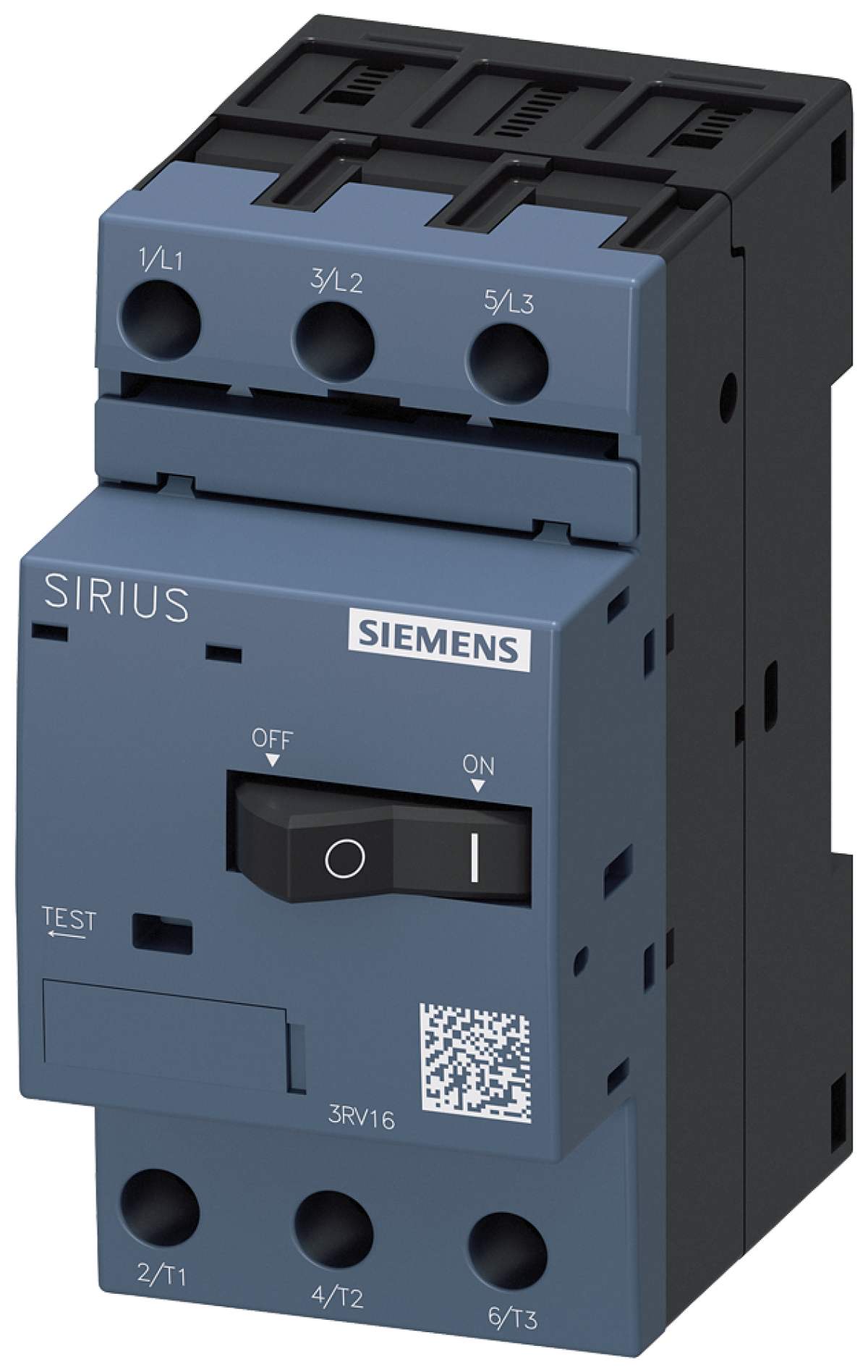

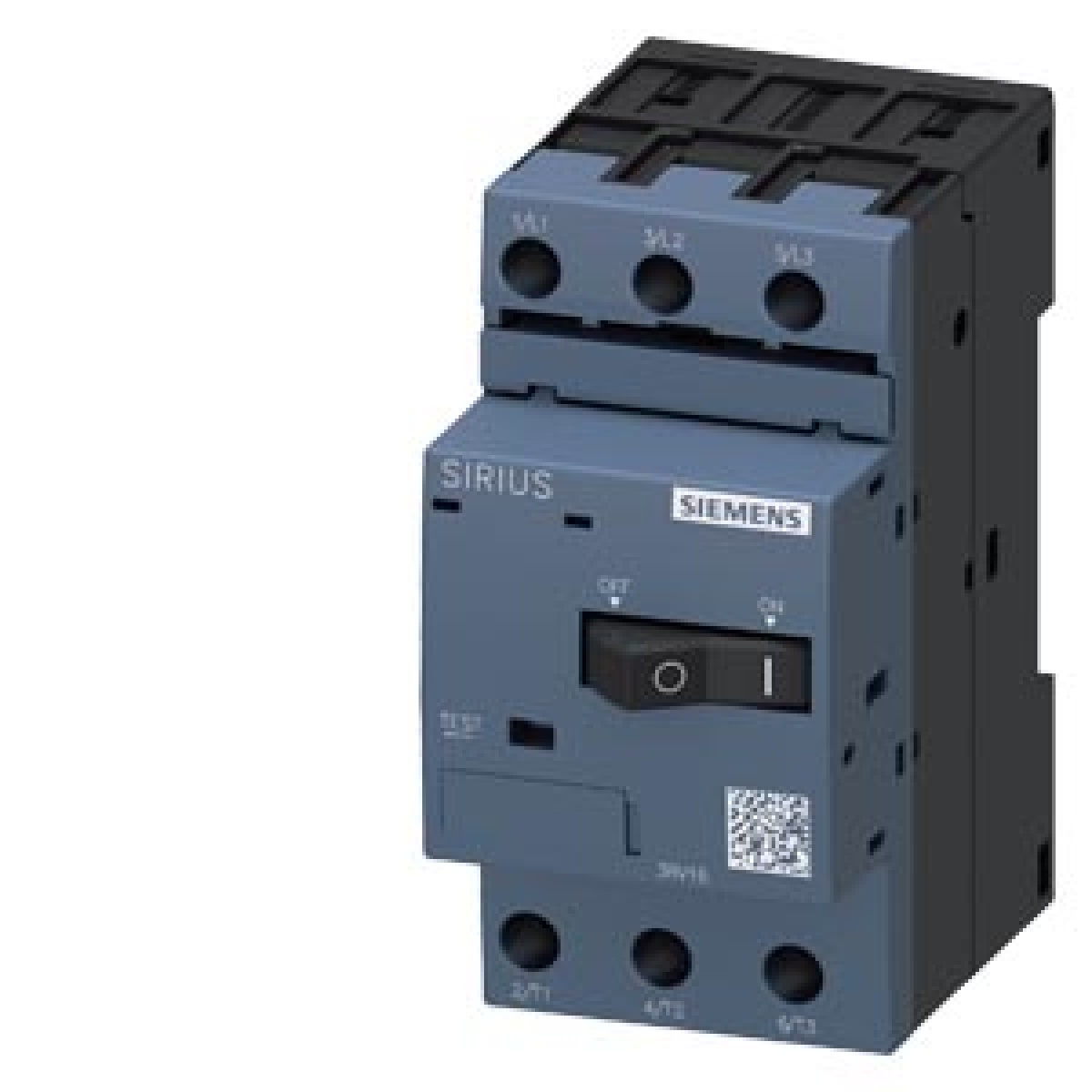

Circuit breaker size S00 for fuse monitoring screw terminal Arelease 02 A N
Cutting and Protection Devices
Circuit breaker size S00 for fuse monitoring screw terminal Arelease 02 A N
Manufacturer Ref:
3RV16110BD10-ZW96
Nortécnica Ref:
EAN:
4011209324343
Description
Technical Information
Attributes
Number of auxiliary contacts as normally open contact
-
Number of auxiliary contacts as normally closed contact
-
Rated permanent current Iu
0.2
With integrated under voltage release
No
Número de polos
3
Overload release current setting
-
Number of auxiliary contacts as change-over contact
0
Rated voltage
20
Degree of protection IP
IP20
Position of connection for main current circuit
Other
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Type of control element
Rocker
With switched-off indicator
No
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
100
Adjustment range short-term delayed short-circuit release
-
Adjustment range undelayed short-circuit release
-
Suitable for DIN rail top hat rail mounting
Yes
Integrated earth fault protection
No
Motor drive optional
No
Device construction
Builtin device fixed builtin technique
DIN rail top hat rail mounting optional
Yes
Complete device with protection unit
Yes
Brands
Siemens AG
