Circuit breaker size S00 for motor protection CLASS 10 Arelease 558 A N
Cutting and Protection Devices
Circuit breaker size S00 for motor protection CLASS 10 Arelease 558 A N
Manufacturer Ref:
3RV20111HA10-ZW97
Nortécnica Ref:
EAN:
4011209890978
Description
Technical Information
Attributes

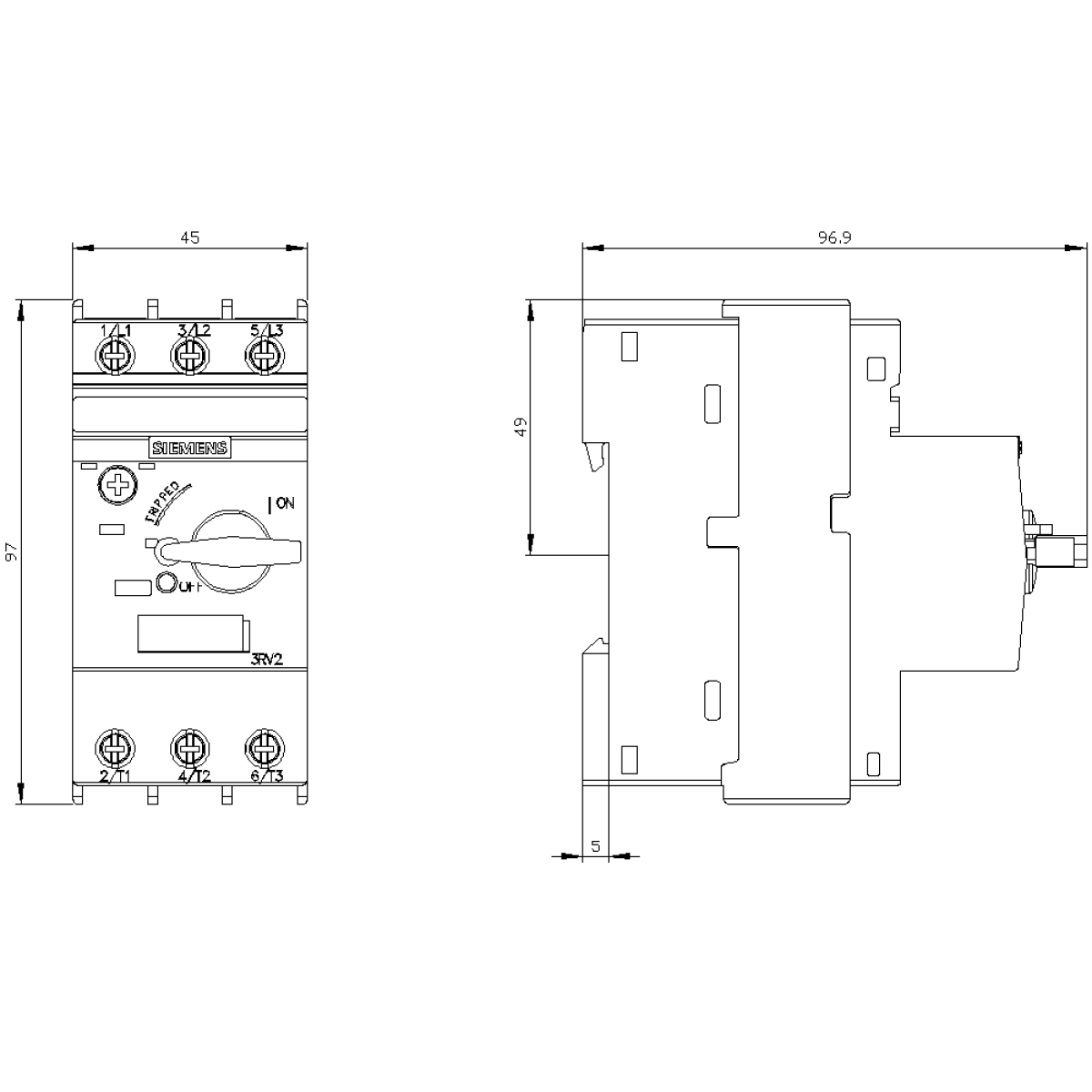

Largura
45
Altura
97
Profundidade
97
Rated operation power at AC-3, 400 V
3
With integrated auxiliary switch
No
Rated permanent current Iu
8
With integrated under voltage release
No
Número de polos
3
Rated operating voltage
690
Overload release current setting
5.5
Degree of protection IP
IP20
With thermal overload protection
-
Type of electrical connection of main circuit
Screw connection
Type of control element
Turn button
Switch off technique
Magnetic
Rated operation power at AC-3, 230 V
1.5
Rated short-circuit breaking capacity Icu at 400 V, AC
100
Adjustment range undelayed short-circuit release
-
Phase failure sensitive
Yes
Device construction
Builtin device fixed builtin technique
Brands
Siemens AG
