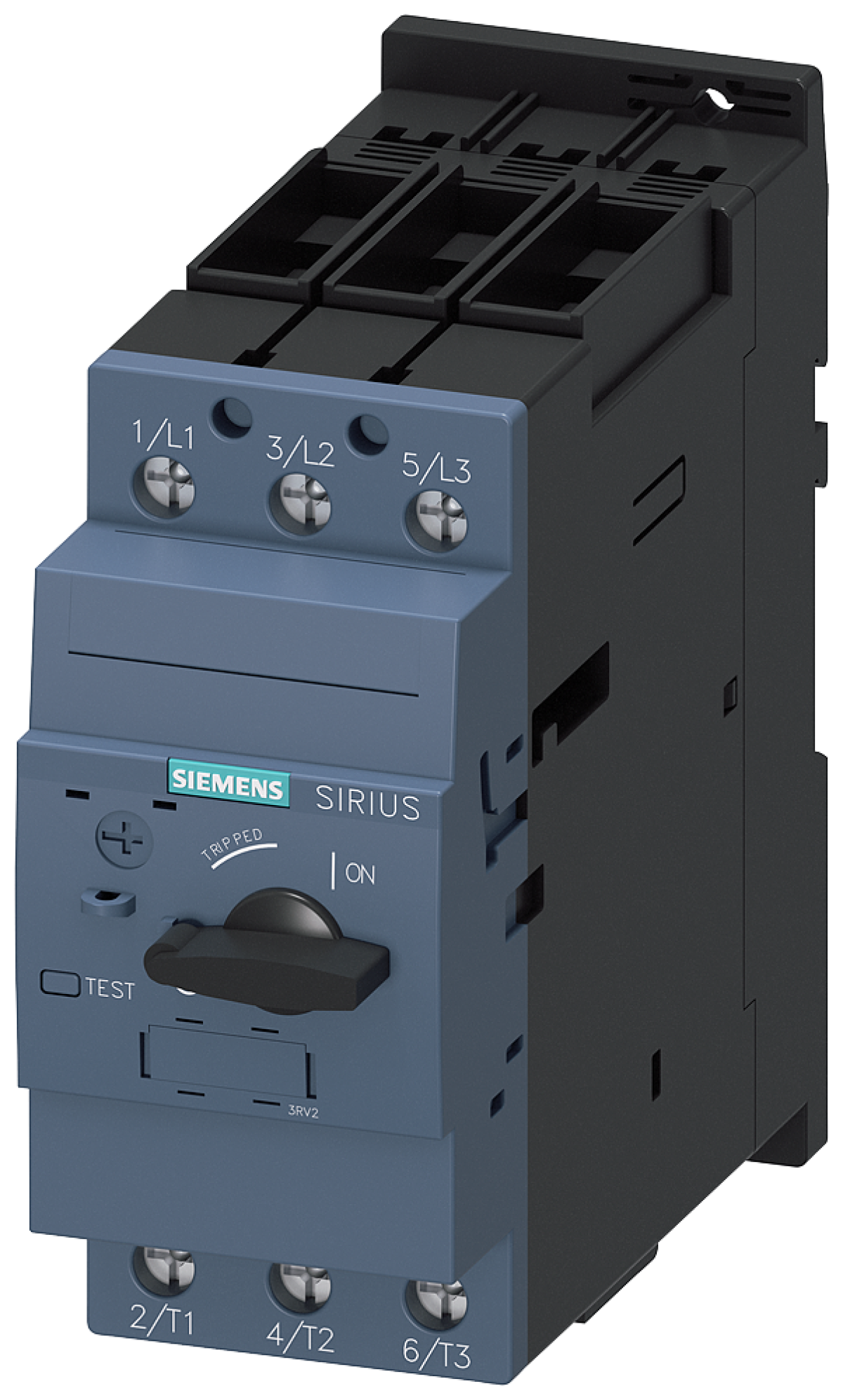

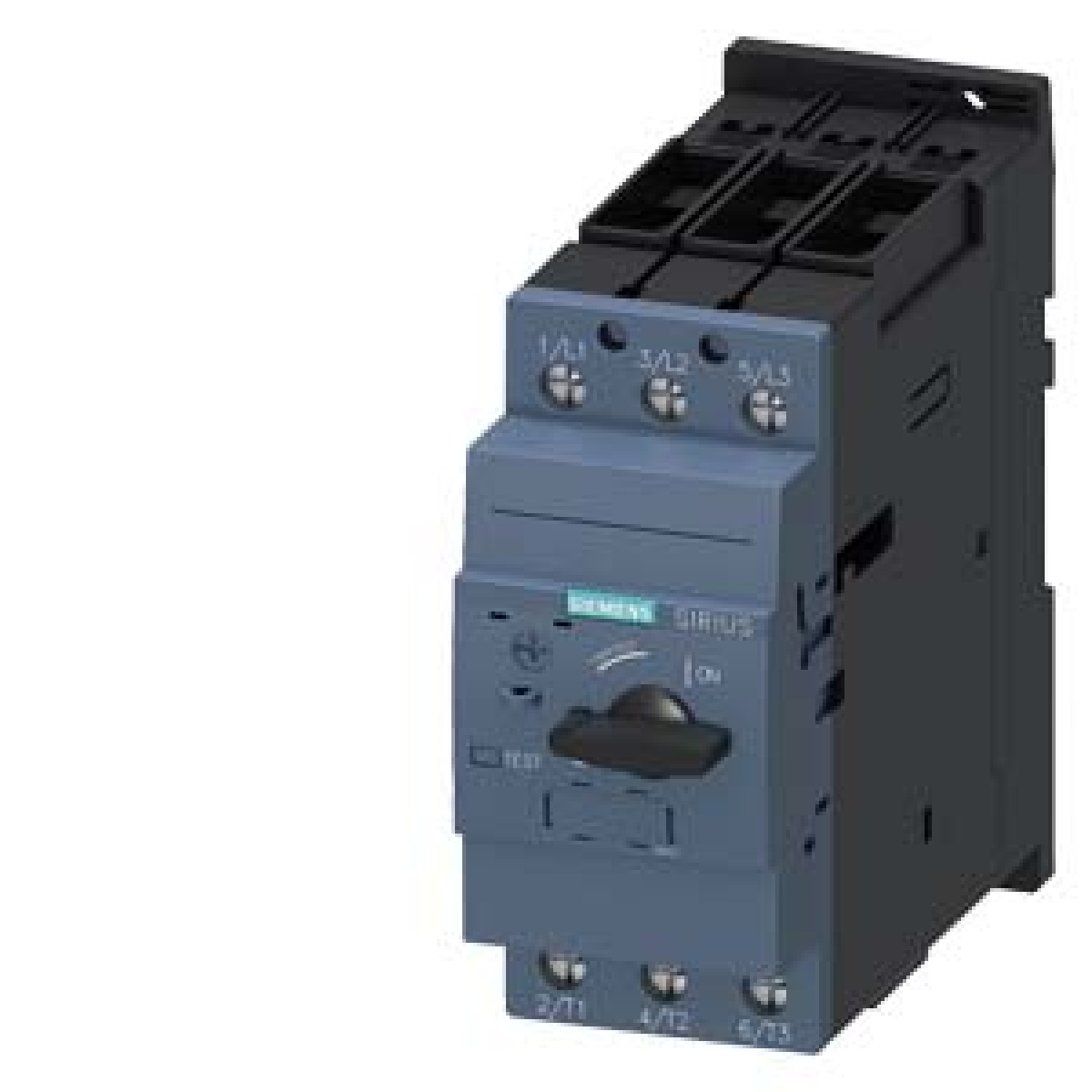

Circuit breaker size S2 for motor protection CLASS 10 Arelease 3545 A Nr
Cutting and Protection Devices
Circuit breaker size S2 for motor protection CLASS 10 Arelease 3545 A Nr
Manufacturer Ref:
3RV20314VA10-ZW97
Nortécnica Ref:
EAN:
4047621017969
Description
Technical Information
Attributes

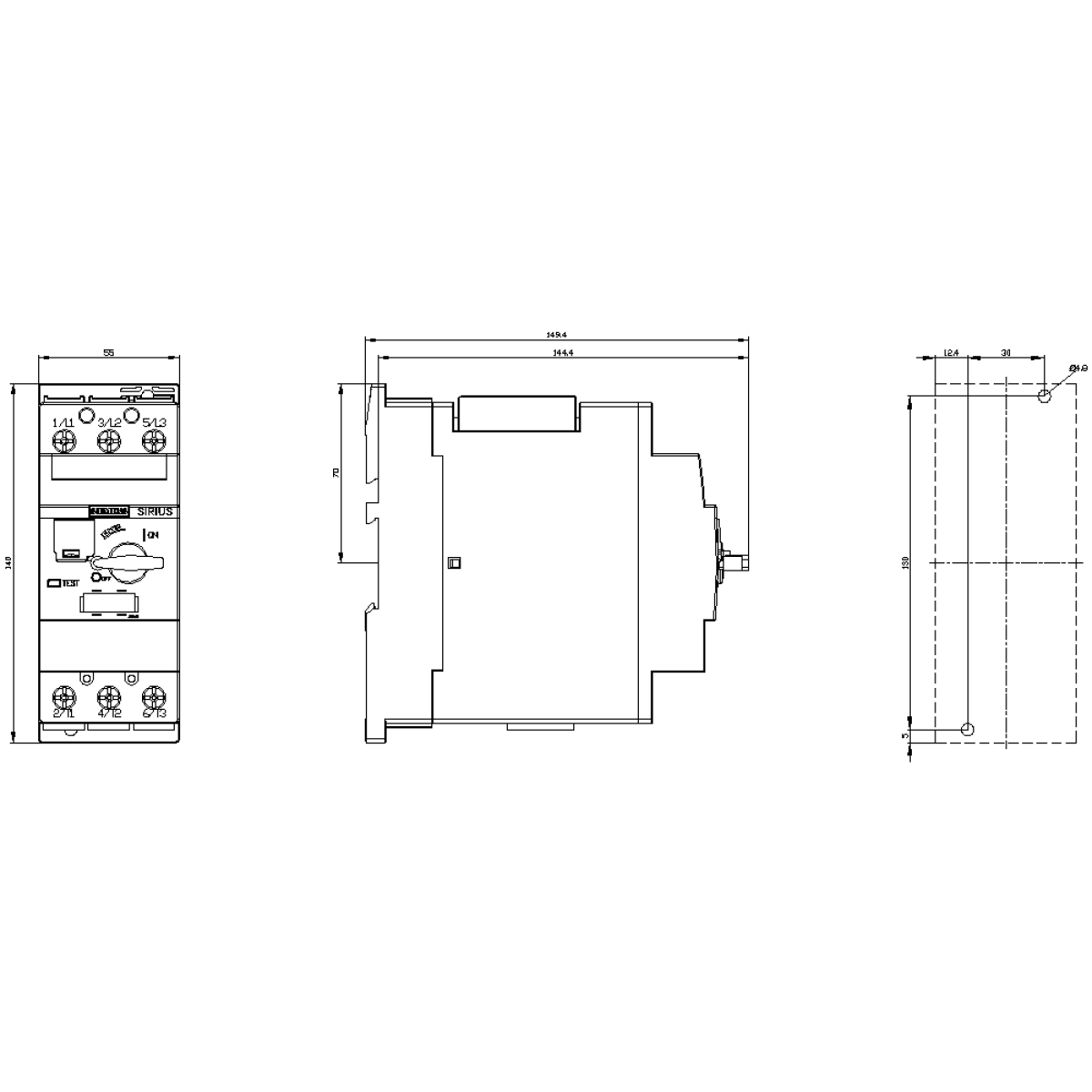

Largura
55
Altura
140
Profundidade
149
Rated operation power at AC-3, 400 V
22
With integrated auxiliary switch
No
Rated permanent current Iu
45
With integrated under voltage release
No
Número de polos
3
Rated operating voltage
690
Overload release current setting
35
Degree of protection IP
IP20
With thermal overload protection
-
Type of electrical connection of main circuit
Screw connection
Type of control element
Turn button
Switch off technique
Magnetic
Rated operation power at AC-3, 230 V
11
Rated short-circuit breaking capacity Icu at 400 V, AC
65
Adjustment range undelayed short-circuit release
-
Phase failure sensitive
Yes
Device construction
Builtin device fixed builtin technique
Brands
Siemens AG
