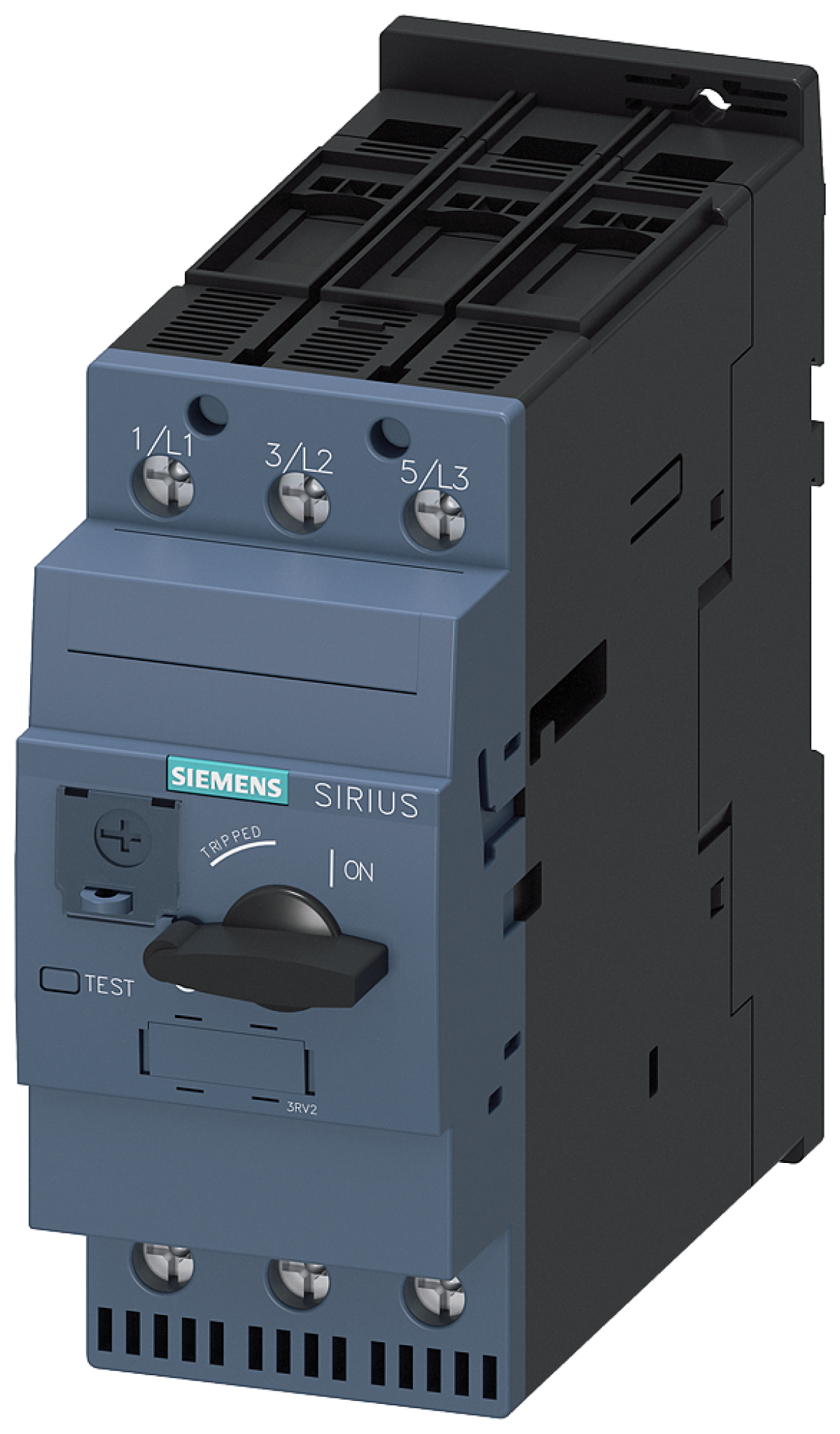

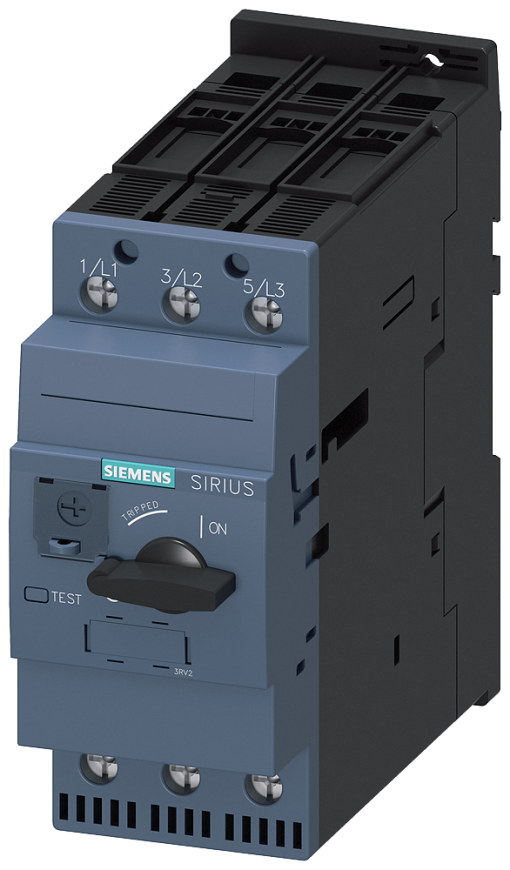

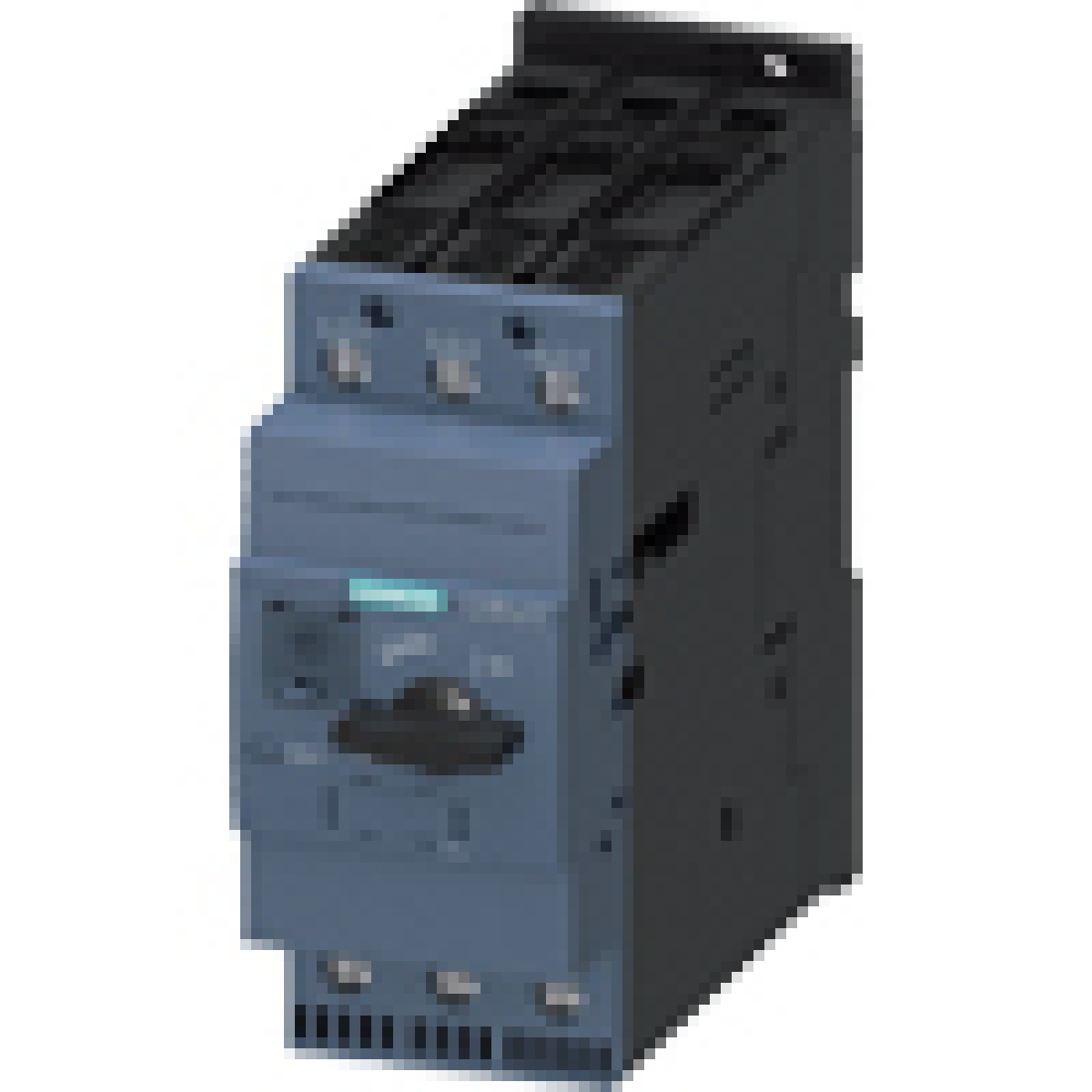

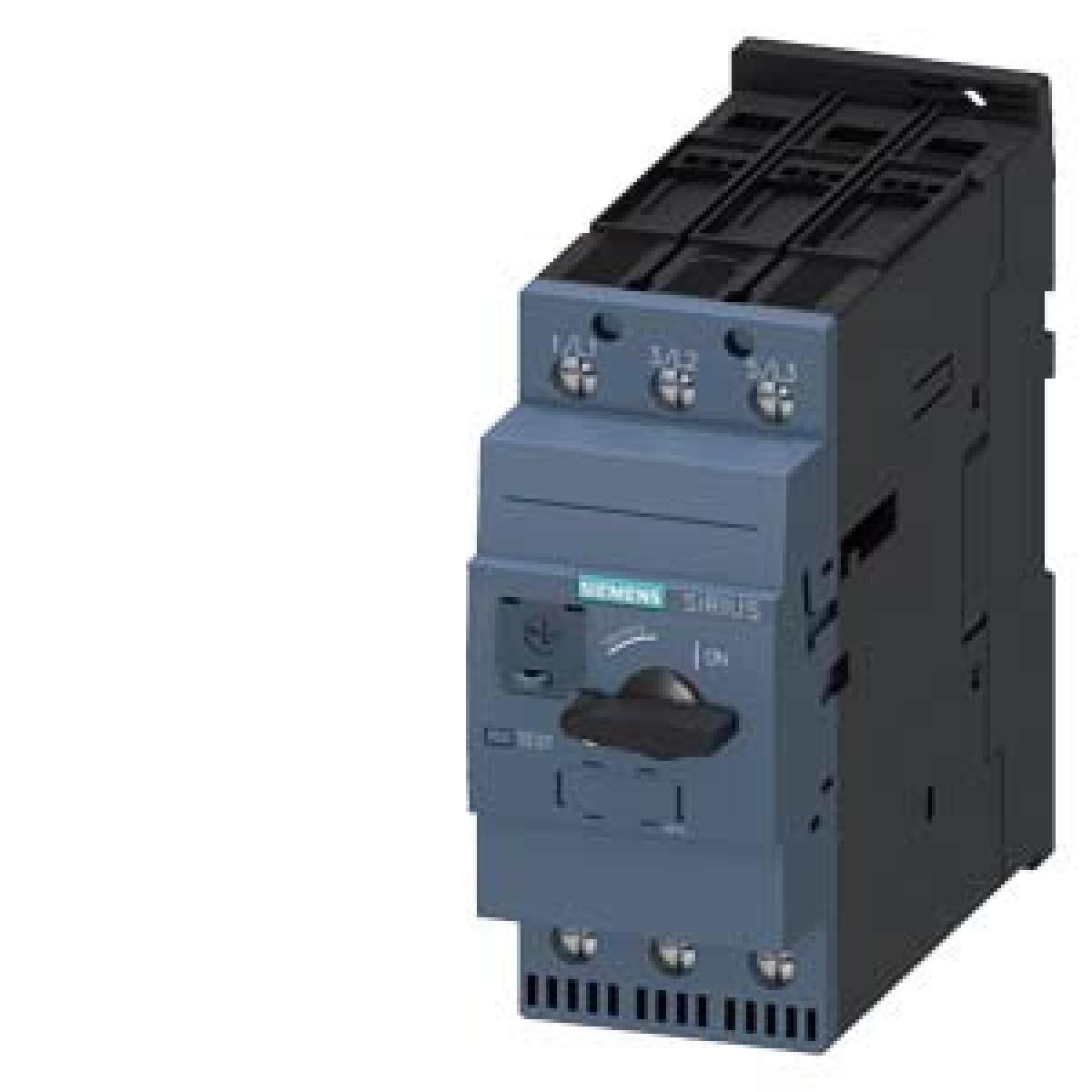

Circuit breaker size S2 for motor protection CLASS 10 Arelease 5465 A Nr
Cutting and Protection Devices
Circuit breaker size S2 for motor protection CLASS 10 Arelease 5465 A Nr
Manufacturer Ref:
3RV20314JA10-ZW97
Nortécnica Ref:
EAN:
4047621001715
Description
Technical Information
Attributes

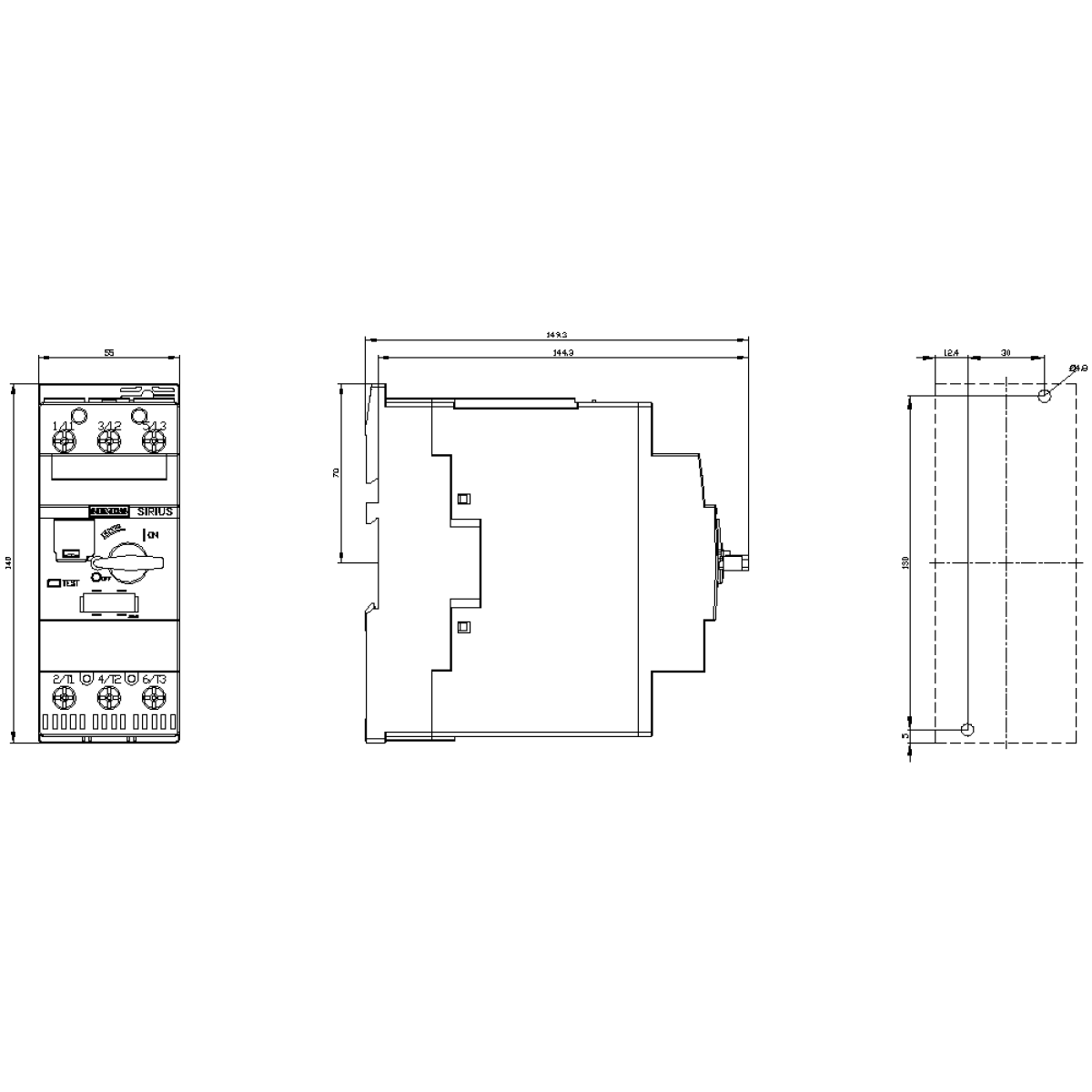

Largura
55
Altura
140
Profundidade
149
Rated operation power at AC-3, 400 V
30
With integrated auxiliary switch
No
Rated permanent current Iu
65
With integrated under voltage release
No
Número de polos
3
Rated operating voltage
690
Overload release current setting
54
Degree of protection IP
IP20
With thermal overload protection
-
Type of electrical connection of main circuit
Screw connection
Type of control element
Turn button
Switch off technique
Magnetic
Rated operation power at AC-3, 230 V
18.5
Rated short-circuit breaking capacity Icu at 400 V, AC
65
Adjustment range undelayed short-circuit release
-
Phase failure sensitive
Yes
Device construction
Builtin device fixed builtin technique
Brands
Siemens AG
Technical Sheet
