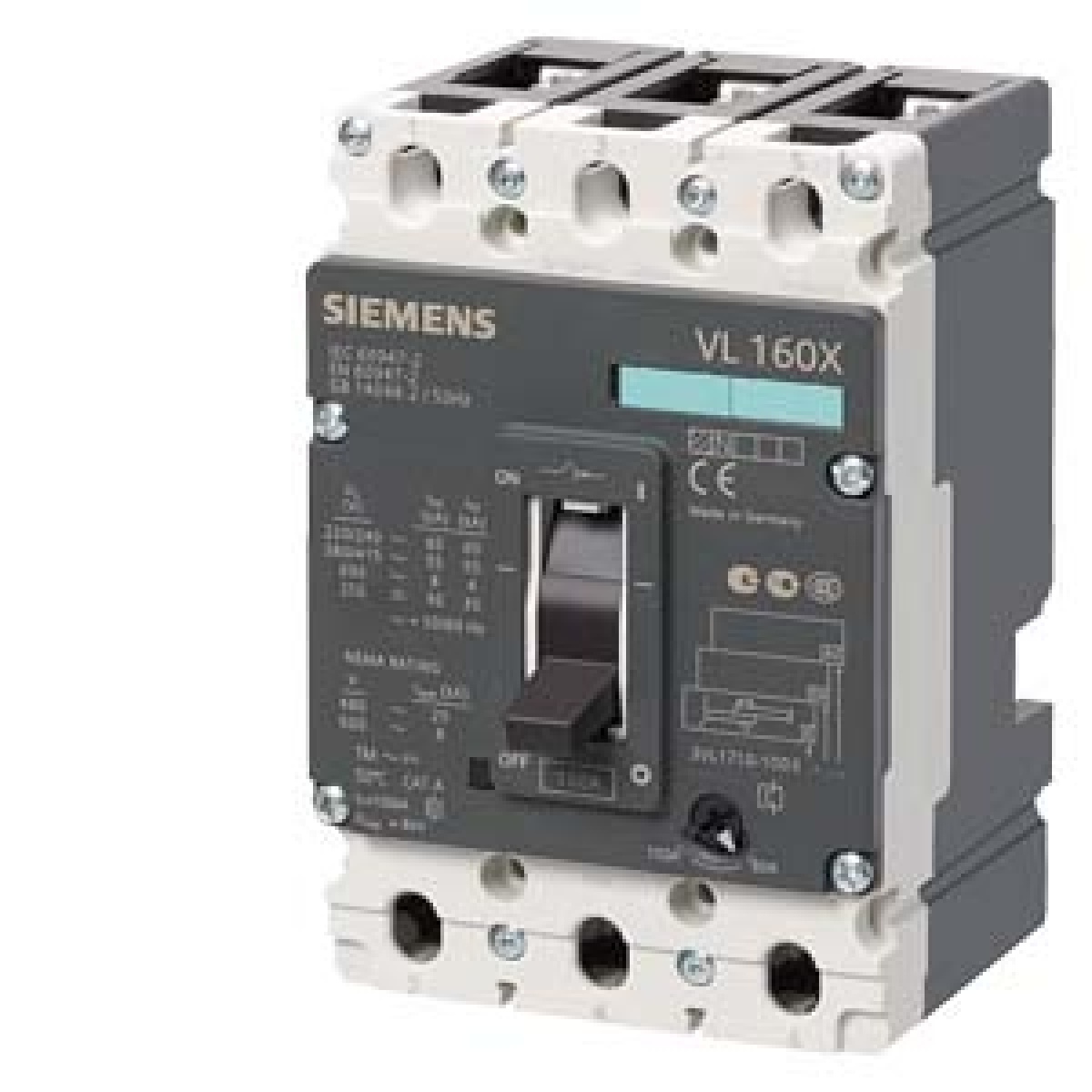

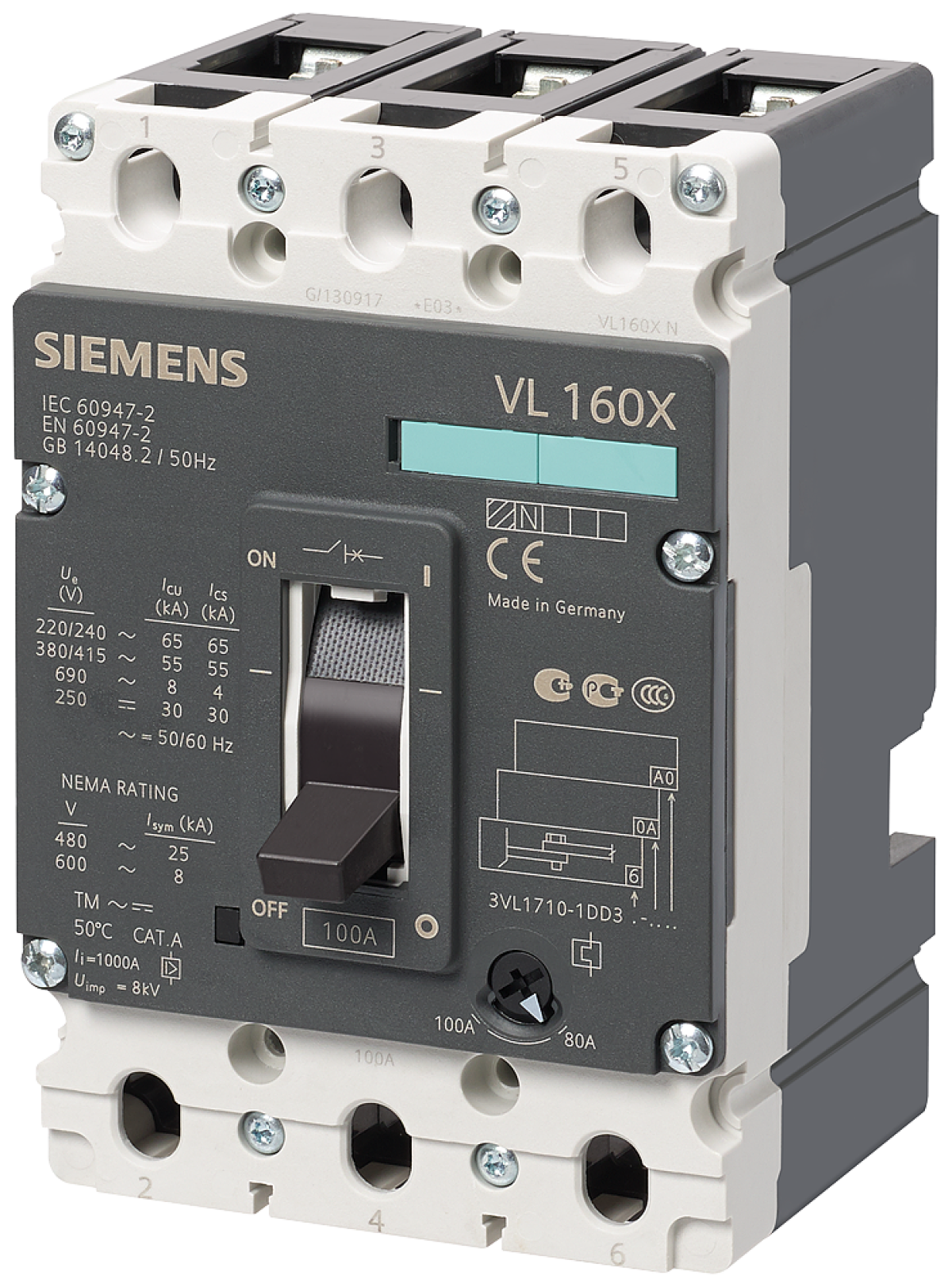

circuit breaker VL160X N standard breaking capacity Icu55kA 415V AC 3pole
Cutting and Protection Devices
circuit breaker VL160X N standard breaking capacity Icu55kA 415V AC 3pole
Manufacturer Ref:
3VL17031DD338RD1
Nortécnica Ref:
EAN:
4011209750258
Description
Technical Information
Attributes
Number of auxiliary contacts as normally open contact
2
Number of auxiliary contacts as normally closed contact
1
Rated permanent current Iu
-
With integrated under voltage release
No
Number of poles
3
Overload release current setting
26
Number of auxiliary contacts as change-over contact
0
Rated voltage
-
Degree of protection IP
IP20
Position of connection for main current circuit
Front side
Motor drive integrated
No
Type of electrical connection of main circuit
Frame clamp
Type of control element
-
With switched-off indicator
Yes
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
55
Adjustment range short-term delayed short-circuit release
-
Adjustment range undelayed short-circuit release
300
Suitable for DIN rail top hat rail mounting
No
Integrated earth fault protection
No
Motor drive optional
Yes
Device construction
Builtin device fixed builtin technique
DIN rail top hat rail mounting optional
No
Complete device with protection unit
Yes
Brands
Siemens AG
