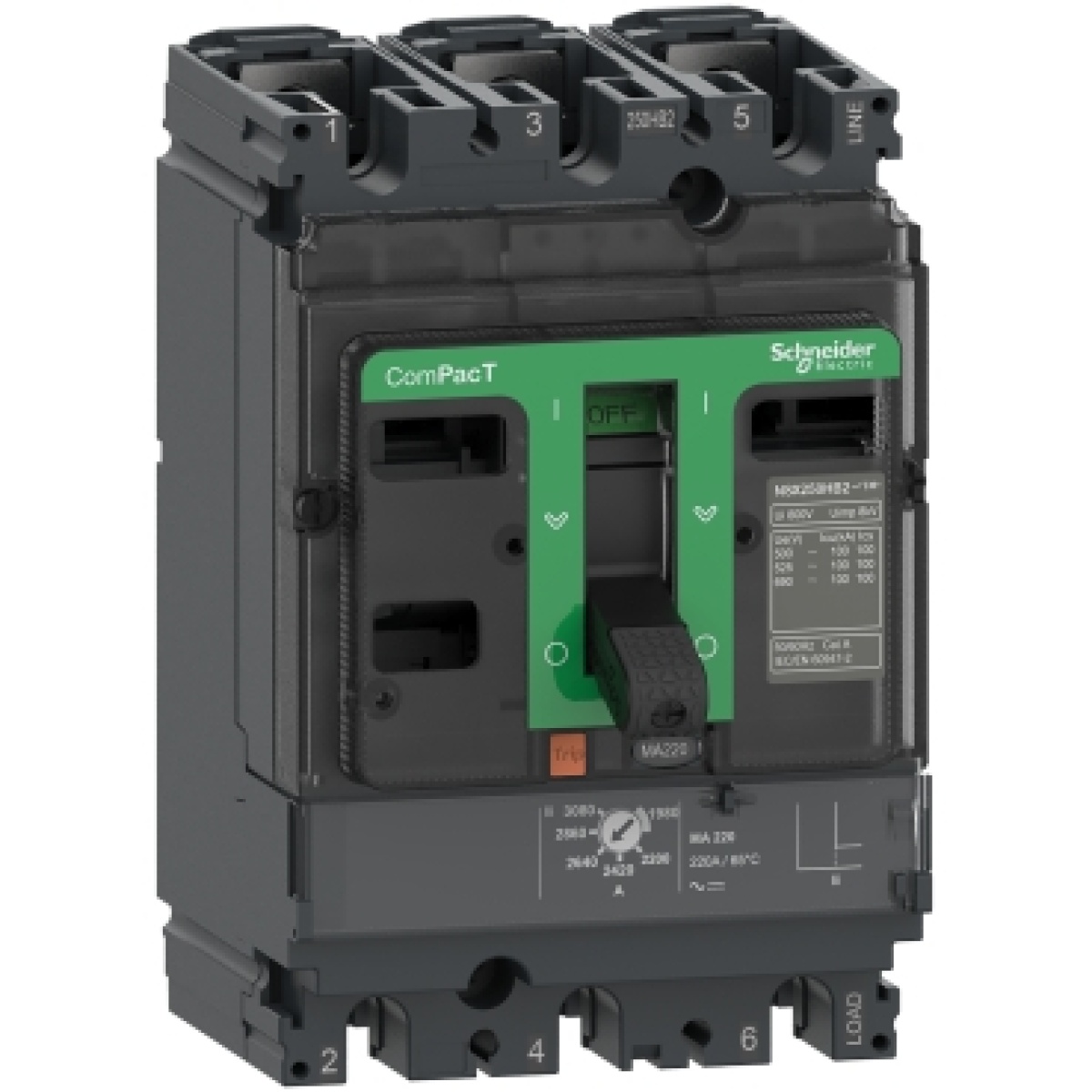

ComPacT DISJUNTOR NSX100HB1 75kA CA 3P 100A MA
Cutting and Protection Devices
ComPacT DISJUNTOR NSX100HB1 75kA CA 3P 100A MA
Manufacturer Ref:
C10V3MA100
Nortécnica Ref:
EAN:
3606482001992
Description
Technical Information
Attributes
Largura
105
Altura
161
Profundidade
86
Rated operation power at AC-3, 400 V
-
With integrated auxiliary switch
No
Rated permanent current Iu
100
With integrated under voltage release
No
Número de polos
3
Rated operating voltage
690
690
Overload release current setting
-
-
Potência dissipada
15.6
Degree of protection IP
IP40
With thermal overload protection
No
Type of electrical connection of main circuit
Screw connection
Type of control element
Other
Switch off technique
Magnetic
Rated operation power at AC-3, 230 V
-
Rated short-circuit breaking capacity Icu at 400 V, AC
-
Adjustment range undelayed short-circuit release
600
1400
Phase failure sensitive
No
Device construction
Built-in device fixed built-in technique
Brands
Schneider
