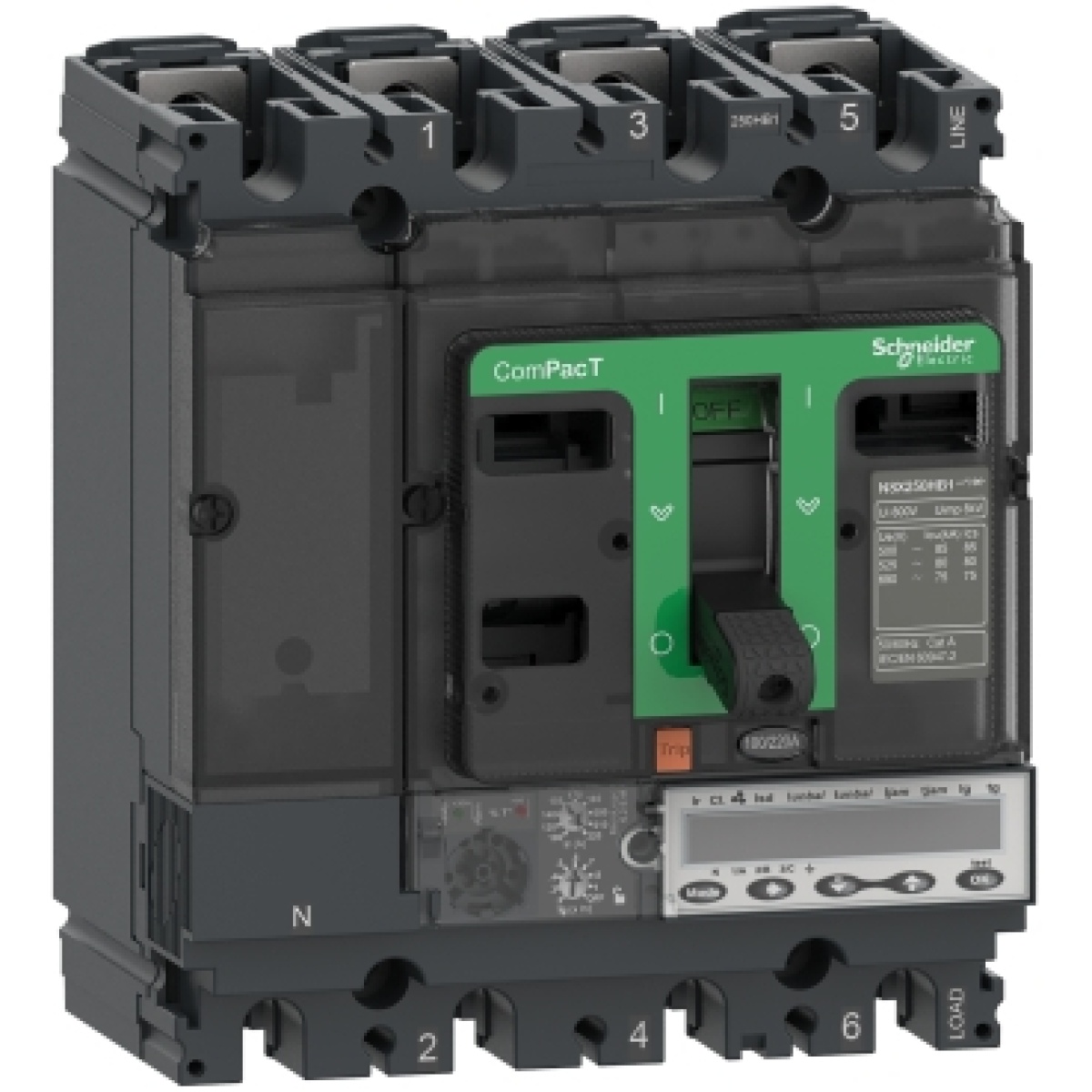

ComPacT DISJUNTOR NSX100HB1 75kA CA 3P 80A 6.2EM
Cutting and Protection Devices
ComPacT DISJUNTOR NSX100HB1 75kA CA 3P 80A 6.2EM
Manufacturer Ref:
C10V36M080
Nortécnica Ref:
EAN:
3606482002098
Description
Technical Information
Attributes
Largura
105
Altura
161
Profundidade
86
Rated operation power at AC-3, 400 V
-
With integrated auxiliary switch
No
Rated permanent current Iu
80
With integrated under voltage release
No
Número de polos
3
Rated operating voltage
690
690
Overload release current setting
35
80
Potência dissipada
14.1
Degree of protection IP
IP40
With thermal overload protection
Yes
Type of electrical connection of main circuit
Screw connection
Type of control element
Other
Switch off technique
Electronic
Rated operation power at AC-3, 230 V
-
Rated short-circuit breaking capacity Icu at 400 V, AC
-
Adjustment range undelayed short-circuit release
1200
1200
Phase failure sensitive
Yes
Device construction
Built-in device fixed built-in technique
Brands
Schneider
