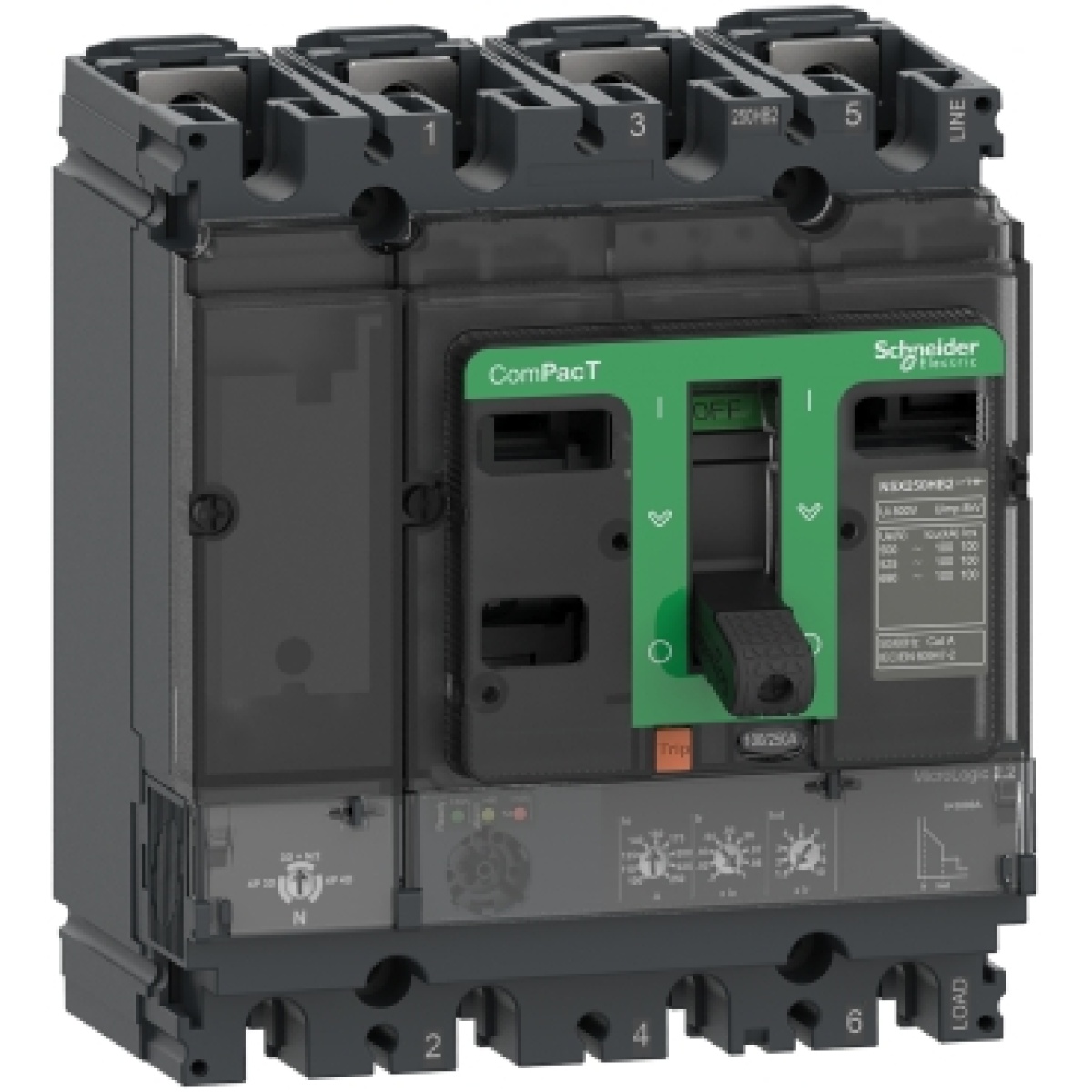

ComPacT DISJUNTOR NSX160B 25kA CA 4P 160A 2,2
Cutting and Protection Devices
ComPacT DISJUNTOR NSX160B 25kA CA 4P 160A 2,2
Manufacturer Ref:
C16B42D160
Nortécnica Ref:
51C16B42D160
EAN:
3606481996718
Description
Technical Information
Attributes
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
160
With integrated under voltage release
No
Number of poles
4
Overload release current setting
57
160
Number of auxiliary contacts as change-over contact
0
Rated voltage
690
690
Power loss
36.8
Degree of protection IP
IP40
Position of connection for main current circuit
Front side
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Type of control element
Wing knob
With switched-off indicator
Yes
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
25
Adjustment range short-term delayed short-circuit release
86
1600
Adjustment range undelayed short-circuit release
2400
2400
Suitable for DIN rail top hat rail mounting
No
Integrated earth fault protection
No
Motor drive optional
Yes
Device construction
Built-in device fixed built-in technique
DIN rail top hat rail mounting optional
Yes
Complete device with protection unit
Yes
Brands
Schneider
