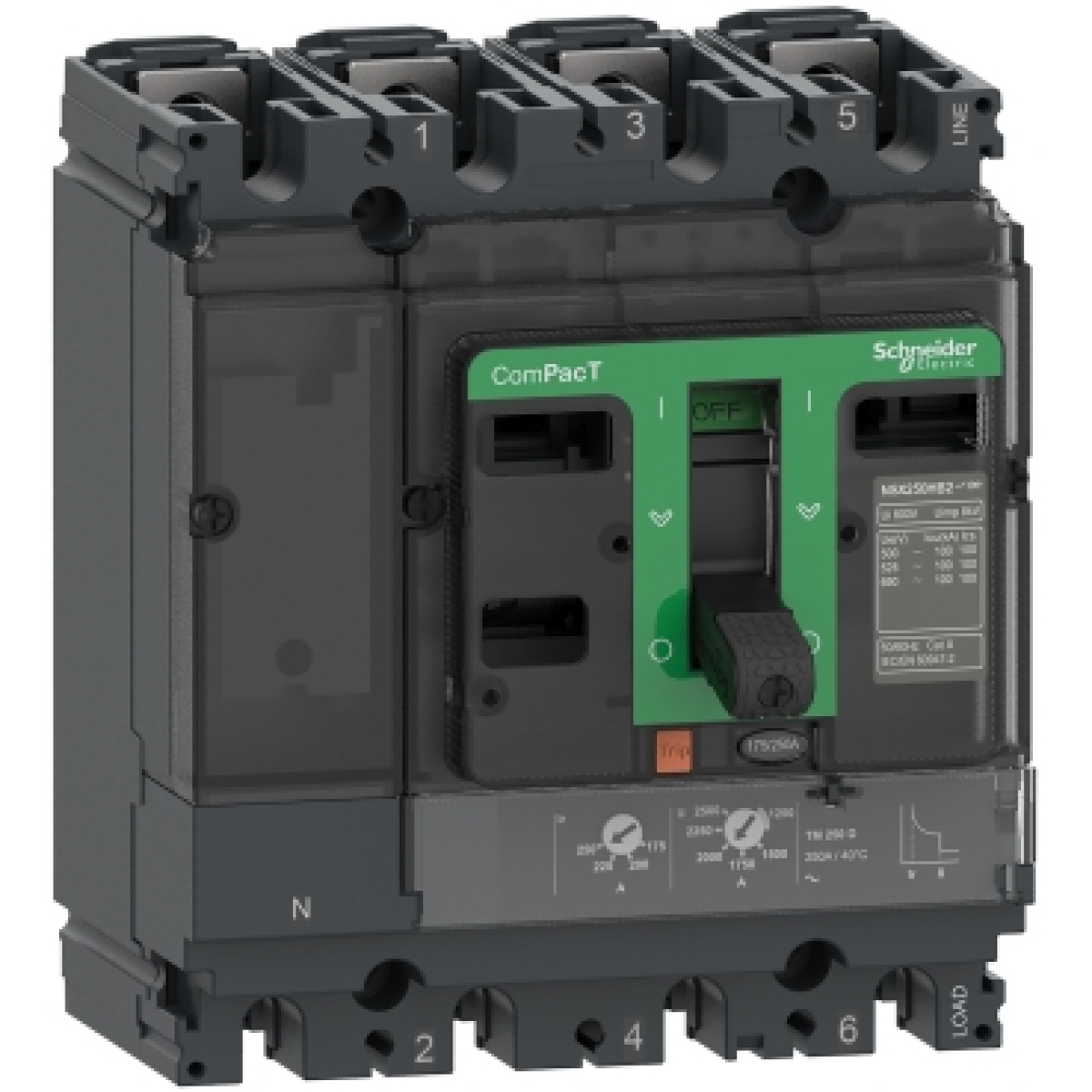

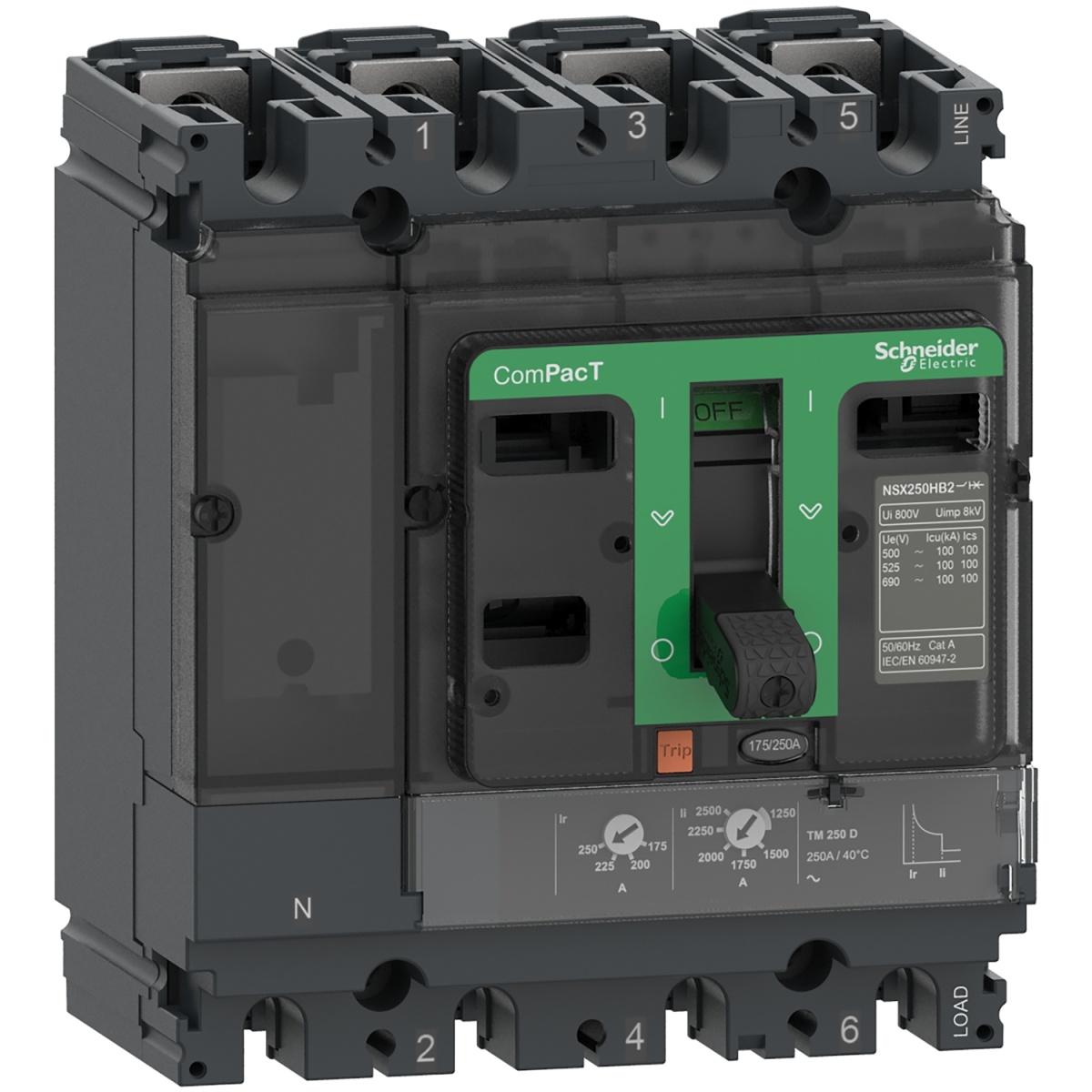

ComPacT DISJUNTOR NSX250F 36kA CA 4P3D 250A TMD
Cutting and Protection Devices
ComPacT DISJUNTOR NSX250F 36kA CA 4P3D 250A TMD
Manufacturer Ref:
C25F6TM250
Nortécnica Ref:
51C25F6TM250
EAN:
3606481997371
Description
Technical Information
Attributes
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
250
With integrated under voltage release
No
Number of poles
4
Overload release current setting
175
250
Number of auxiliary contacts as change-over contact
0
Rated voltage
690
690
Power loss
75
Degree of protection IP
IP40
Position of connection for main current circuit
Front side
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Type of control element
Wing knob
With switched-off indicator
Yes
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
36
Adjustment range short-term delayed short-circuit release
1250
2500
Adjustment range undelayed short-circuit release
-
-
Suitable for DIN rail top hat rail mounting
No
Integrated earth fault protection
No
Motor drive optional
Yes
Device construction
Built-in device fixed built-in technique
DIN rail top hat rail mounting optional
Yes
Complete device with protection unit
Yes
Brands
Schneider
