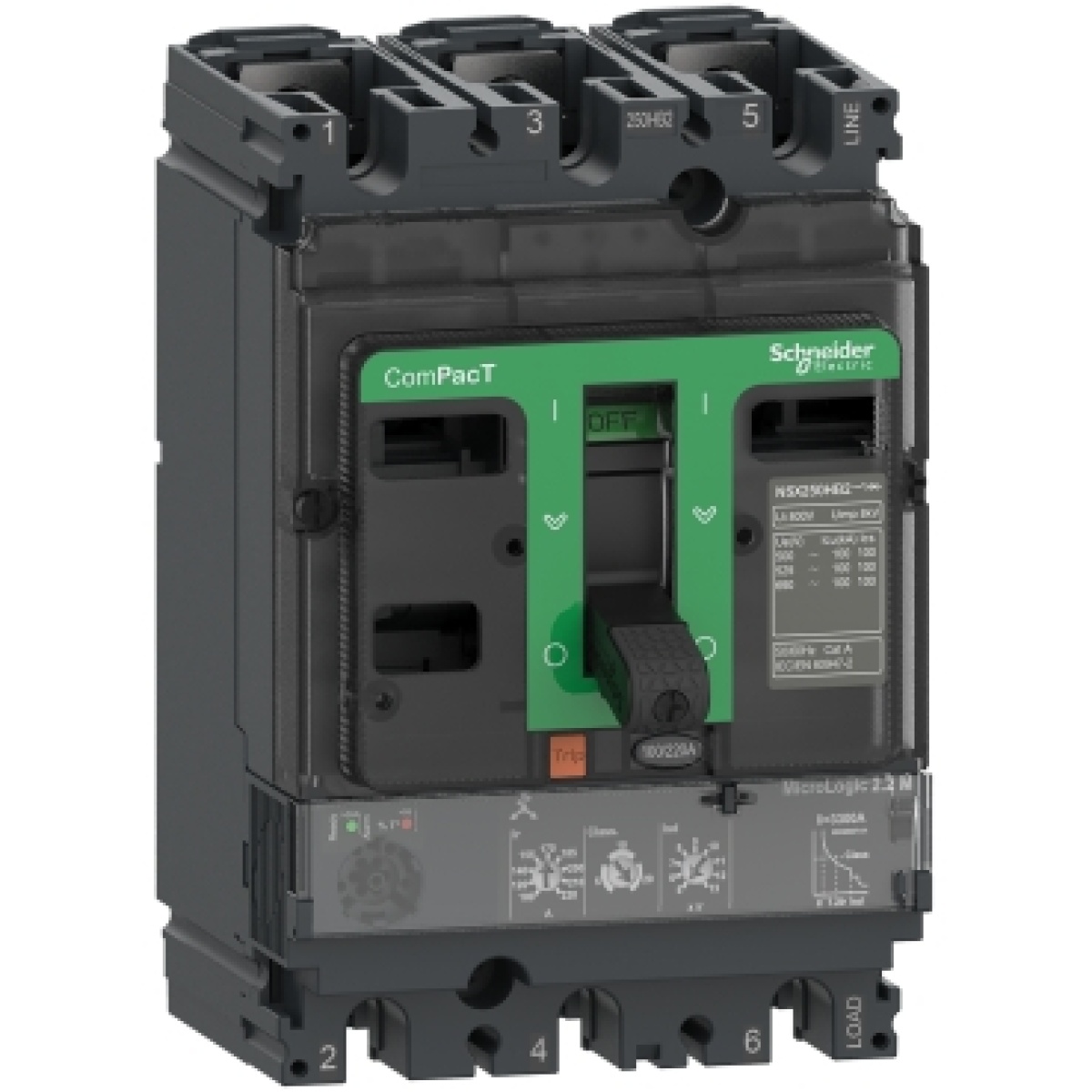

ComPacT DISJUNTOR NSX250HB1 75kA CA 3P 150A 2.2M
Cutting and Protection Devices
ComPacT DISJUNTOR NSX250HB1 75kA CA 3P 150A 2.2M
Manufacturer Ref:
C25V32M150
Nortécnica Ref:
EAN:
3606482002050
Description
Technical Information
Attributes
Largura
105
Altura
161
Profundidade
86
Rated operation power at AC-3, 400 V
-
With integrated auxiliary switch
No
Rated permanent current Iu
150
With integrated under voltage release
No
Número de polos
3
Rated operating voltage
690
690
Overload release current setting
70
150
Potência dissipada
52.8
Degree of protection IP
IP40
With thermal overload protection
Yes
Type of electrical connection of main circuit
Screw connection
Type of control element
Other
Switch off technique
Electronic
Rated operation power at AC-3, 230 V
-
Rated short-circuit breaking capacity Icu at 400 V, AC
-
Adjustment range undelayed short-circuit release
2250
2250
Phase failure sensitive
Yes
Device construction
Built-in device fixed built-in technique
Brands
Schneider
Technical Sheet
