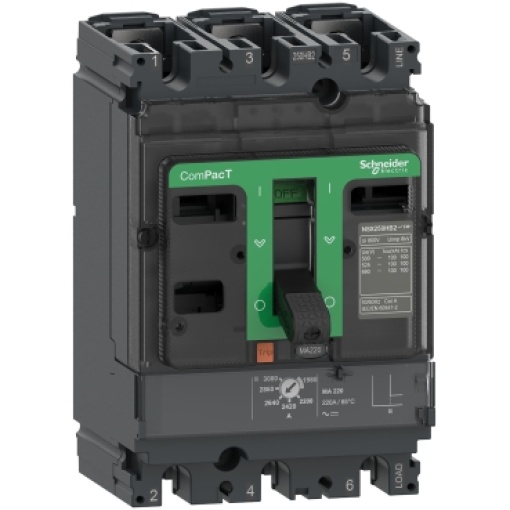

ComPacT DISJUNTOR NSX250HB2 100kA CA 3P 220A MA
Cutting and Protection Devices
ComPacT DISJUNTOR NSX250HB2 100kA CA 3P 220A MA
Manufacturer Ref:
C25W3MA220
Nortécnica Ref:
EAN:
3606482002517
Description
Technical Information
Attributes
Width
105
Height
161
Depth
86
Rated operation power at AC-3, 400 V
-
With integrated auxiliary switch
No
Rated permanent current Iu
220
With integrated under voltage release
No
Number of poles
3
Rated operating voltage
690
690
Overload release current setting
-
-
Power loss
43.56
Degree of protection IP
IP40
With thermal overload protection
No
Type of electrical connection of main circuit
Screw connection
Type of control element
Other
Switch off technique
Magnetic
Rated operation power at AC-3, 230 V
-
Rated short-circuit breaking capacity Icu at 400 V, AC
-
Adjustment range undelayed short-circuit release
1980
3080
Phase failure sensitive
No
Device construction
Built-in device fixed built-in technique
Brands
Schneider
