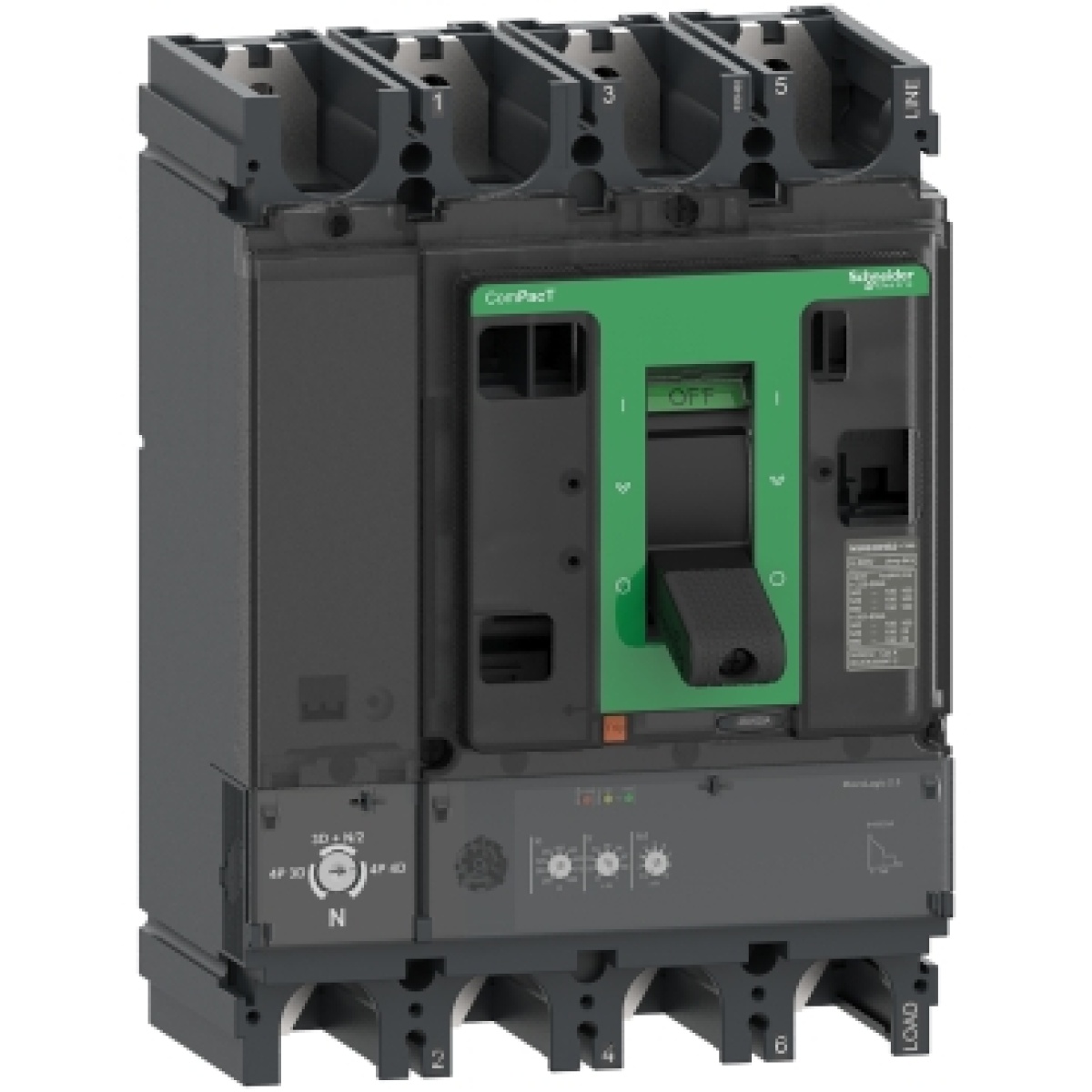

ComPacT DISJUNTOR NSX400F 36kA CA 4P4D 400A 2,3
Cutting and Protection Devices
ComPacT DISJUNTOR NSX400F 36kA CA 4P4D 400A 2,3
Manufacturer Ref:
C40F42D400
Nortécnica Ref:
51C40F42D400
EAN:
3606482002654
Description
Technical Information
Attributes
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
400
With integrated under voltage release
No
Number of poles
4
Overload release current setting
100
400
Number of auxiliary contacts as change-over contact
0
Rated voltage
690
690
Power loss
76.8
Degree of protection IP
IP40
Position of connection for main current circuit
Front side
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Type of control element
Wing knob
With switched-off indicator
Yes
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
36
Adjustment range short-term delayed short-circuit release
216
4000
Adjustment range undelayed short-circuit release
4800
4800
Suitable for DIN rail top hat rail mounting
No
Integrated earth fault protection
No
Motor drive optional
Yes
Device construction
Built-in device fixed built-in technique
DIN rail top hat rail mounting optional
Yes
Complete device with protection unit
Yes
Brands
Schneider
