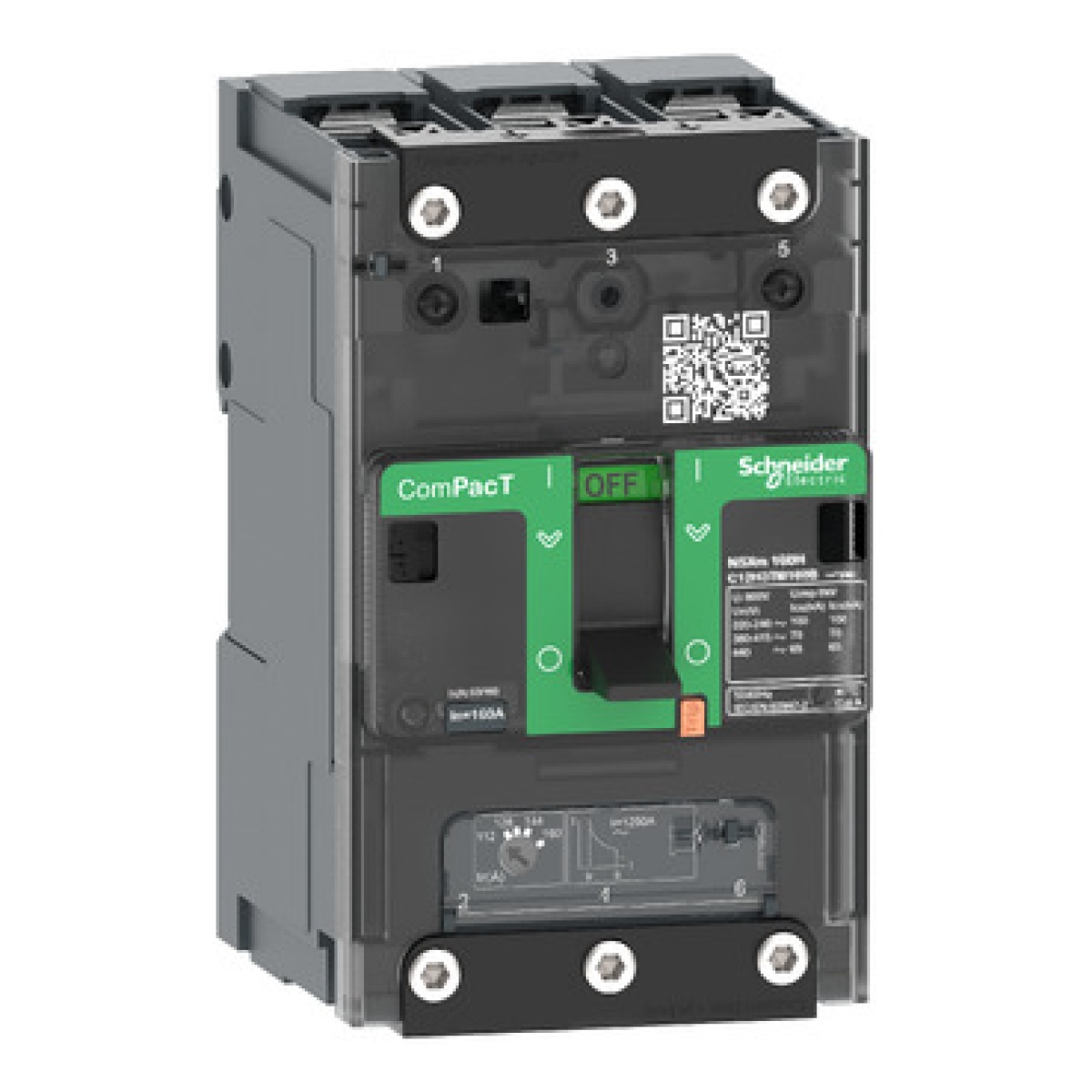

ComPacT DISJUNTOR NSXm100N 50kA CA 3P 16A TMD PARAFUSO
Cutting and Protection Devices
ComPacT DISJUNTOR NSXm100N 50kA CA 3P 16A TMD PARAFUSO
Manufacturer Ref:
C11N3TM016B
Nortécnica Ref:
51C11N3TM016B
EAN:
3606481991461
Description
Technical Information
Attributes
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
16
With integrated under voltage release
-
Number of poles
3
Overload release current setting
11.2
16
Number of auxiliary contacts as change-over contact
0
Rated voltage
690
690
Power loss
6.9
Degree of protection IP
IP40
Position of connection for main current circuit
Front side
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Type of control element
Wing knob
With switched-off indicator
Yes
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
50
Adjustment range short-term delayed short-circuit release
-
-
Adjustment range undelayed short-circuit release
500
500
Suitable for DIN rail top hat rail mounting
Yes
Integrated earth fault protection
No
Motor drive optional
No
Device construction
Built-in device fixed built-in technique
DIN rail top hat rail mounting optional
No
Complete device with protection unit
Yes
Brands
Schneider
