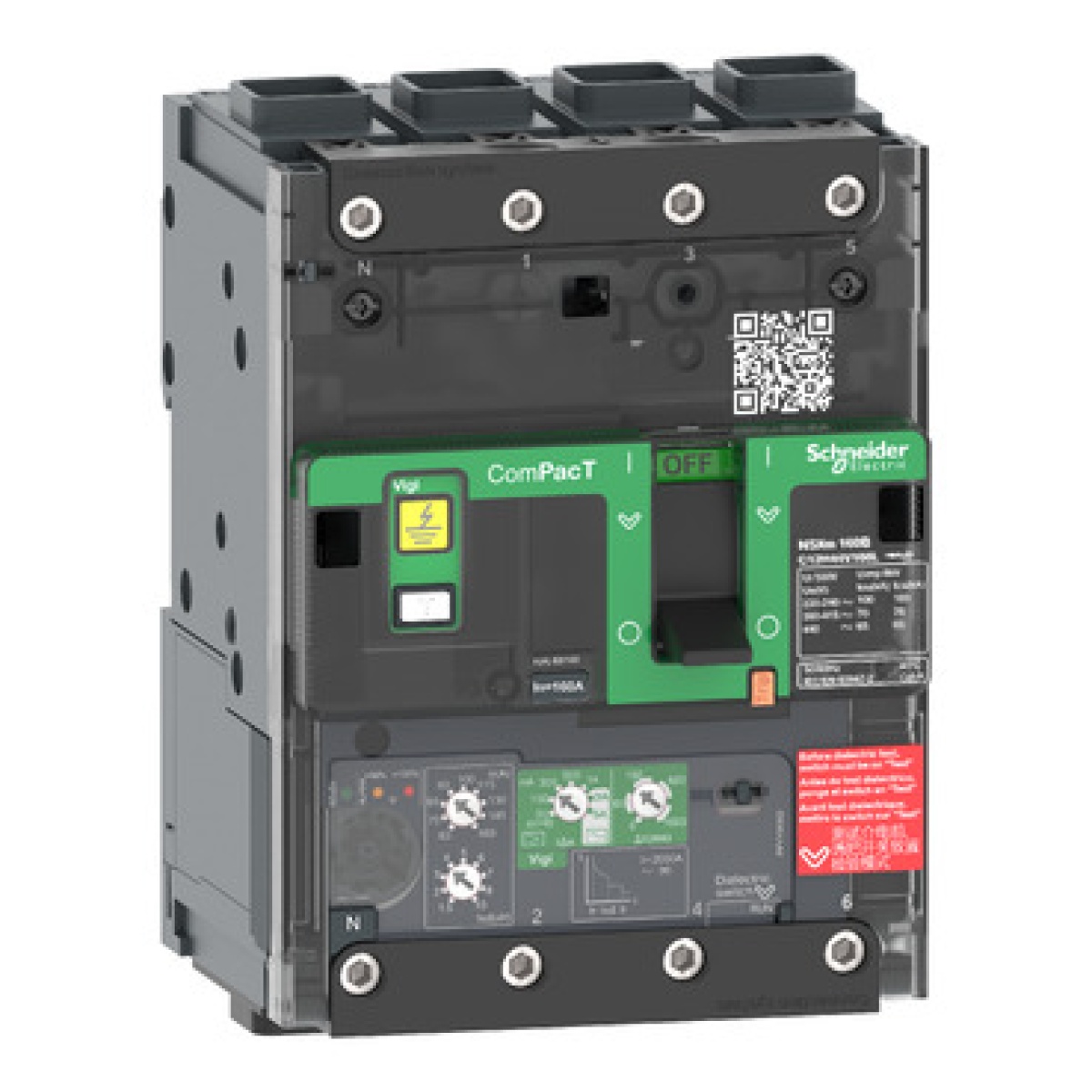

ComPacT DISJUNTOR NSXm100N 50kA CA 4P 50A 4,1 ELINK
Cutting and Protection Devices
ComPacT DISJUNTOR NSXm100N 50kA CA 4P 50A 4,1 ELINK
Manufacturer Ref:
C11N44V050L
Nortécnica Ref:
51C11N44V050L
EAN:
3606481992895
Description
Technical Information
Attributes
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
50
With integrated under voltage release
-
Number of poles
4
Overload release current setting
20
50
Number of auxiliary contacts as change-over contact
0
Rated voltage
440
440
Power loss
4.8
Degree of protection IP
IP40
Position of connection for main current circuit
Front side
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Type of control element
Wing knob
With switched-off indicator
Yes
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
50
Adjustment range short-term delayed short-circuit release
30
500
Adjustment range undelayed short-circuit release
750
750
Suitable for DIN rail top hat rail mounting
Yes
Integrated earth fault protection
Yes
Motor drive optional
No
Device construction
Built-in device fixed built-in technique
DIN rail top hat rail mounting optional
No
Complete device with protection unit
Yes
Brands
Schneider
Technical Sheet
