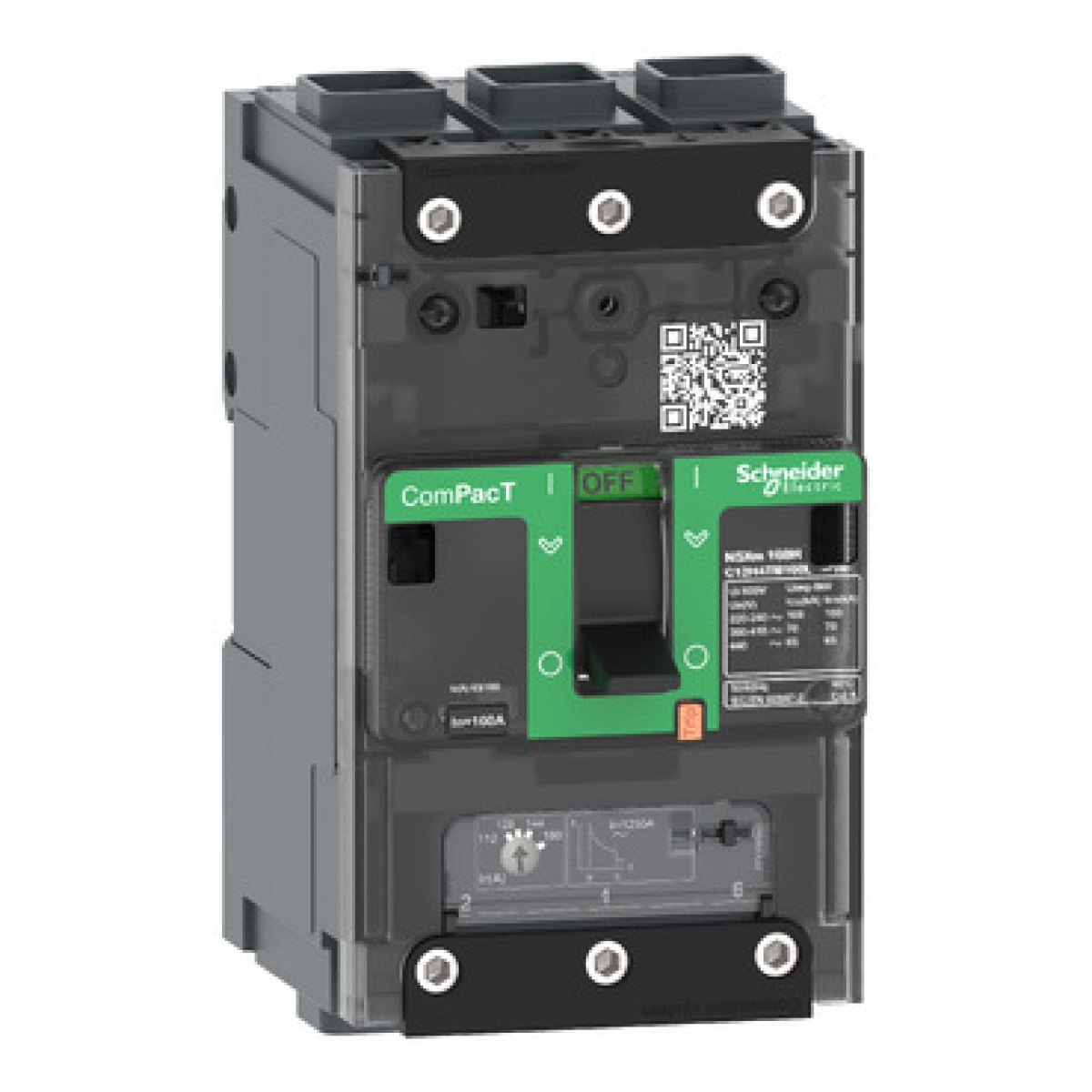

ComPacT DISJUNTOR NSXm160B 25kA CA 3P 125A TMD ELINK
Cutting and Protection Devices
ComPacT DISJUNTOR NSXm160B 25kA CA 3P 125A TMD ELINK
Manufacturer Ref:
C12B3TM125L
Nortécnica Ref:
51C12B3TM125L
EAN:
3606481990044
Description
Technical Information
Attributes
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
125
With integrated under voltage release
-
Number of poles
3
Overload release current setting
87.5
125
Number of auxiliary contacts as change-over contact
0
Rated voltage
690
690
Power loss
27.9
Degree of protection IP
IP40
Position of connection for main current circuit
Front side
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Type of control element
Wing knob
With switched-off indicator
Yes
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
25
Adjustment range short-term delayed short-circuit release
-
-
Adjustment range undelayed short-circuit release
1250
1250
Suitable for DIN rail top hat rail mounting
Yes
Integrated earth fault protection
No
Motor drive optional
No
Device construction
Built-in device fixed built-in technique
DIN rail top hat rail mounting optional
No
Complete device with protection unit
Yes
Brands
Schneider
